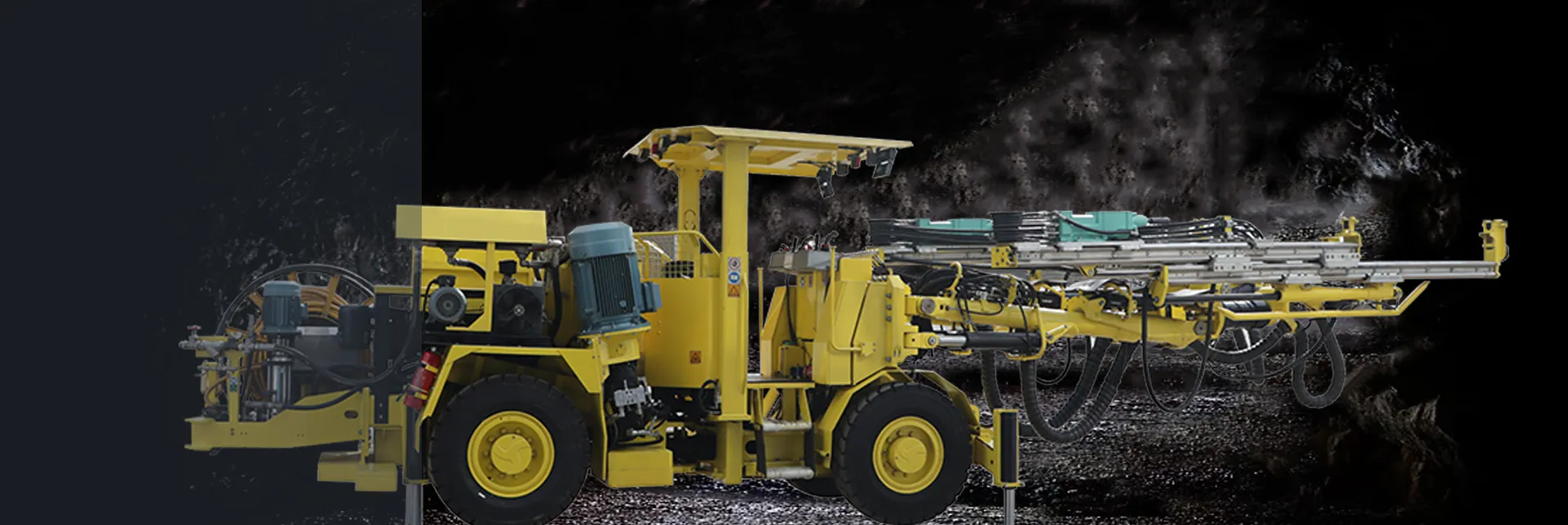

Face Drill Rig

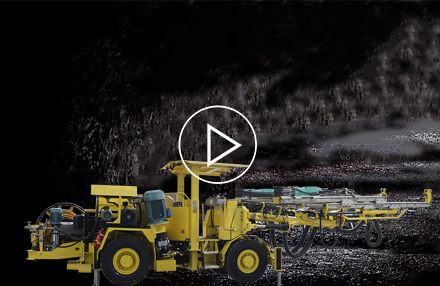

OverviewFK20-2BCDL hydraulic face drilling jumbo is designed for underground mining, tunneling, and construction applications. It is suitable for medium- to large tunnel with coverage area max. up to 8.7 meters x 6.3 meters. Drilling hole diameter ranges from 32mm to 76mm, hole depth ranges from 2.1 to 3.5 meters. The jumbo is equipped with a patent-winning Focor 550 Hydraulic rock drill with 24KW impact power.
The electric motor provides power for the operation. The hydraulic system controls the drilling process, and the the diesel engine provides the power for the moving and slope climbing of the jumbo. Safe and efficient hydraulic-driven system applies to the entire machine. Separate hydraulic pumps controls anti- jamming, feeding, and rotary of the drilling process. All the alarm indicators, such as the overheat indicators for water and oil temperature, guarantee the miners to know the real conditions of the jumbo all the time.
The jumbo can be used not only for drilling blast holes, but also can drill drift rods. The rock drill guarantees accurate precision and maximum drilling speed. For the miners, the jumbo provides maximum safety protection, better working efficiency and lower expenses on the drilling rods.
Feature

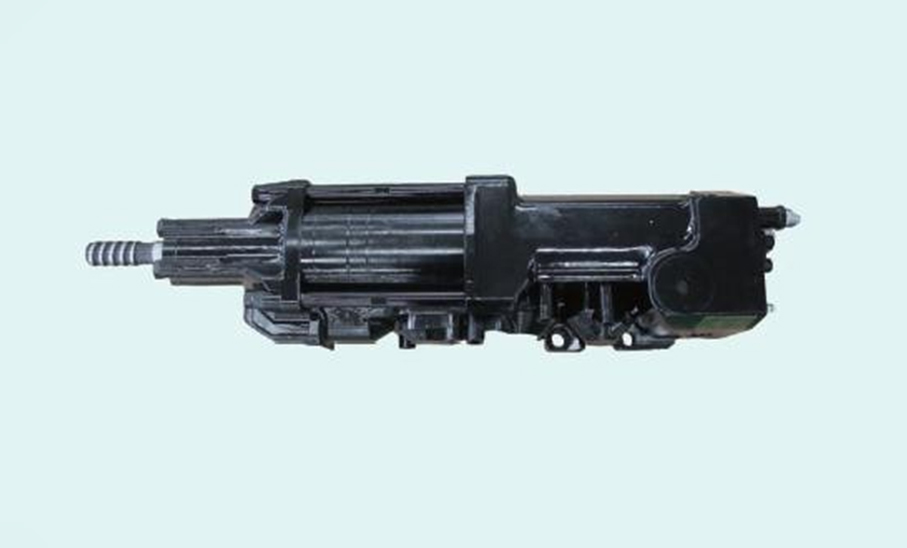

Equipped with Focor 550 rock drill with impact power reaching to24KW. High drilling speed and low failure rate, especially design for hard rocks. Made by our own company means low costs and faster delivery on spare parts, save the time and expenses of the miners. Self-lubrication material is applied in the rock drills - the maintenance period is longer than similar products . Pressurized housing and mating surfaces to reduce internal contamination of the rock drill and the system - the life circle is longer than similar products.

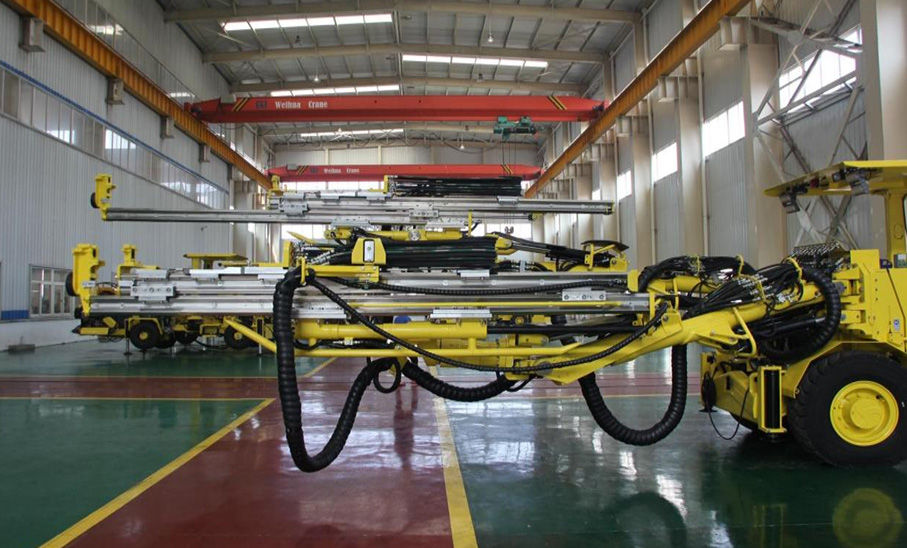

HYT telescopic feed for bolt hole drilling, face drilling, and cross cuttings in a limited space where both long and short rods have to be used. The design of the feeds aims at simplicity of structure and ease of maintenance. The beams are made of special aluminium profile with sliding surfaces faced with stainless steel strips. The drill rod centralizers are equipped with hardened steel wear pieces for optimum visibility and durability . America Helac Rotary actuator applied - Compact, High load capacity, no position shift and anti-pollution guaranteed.

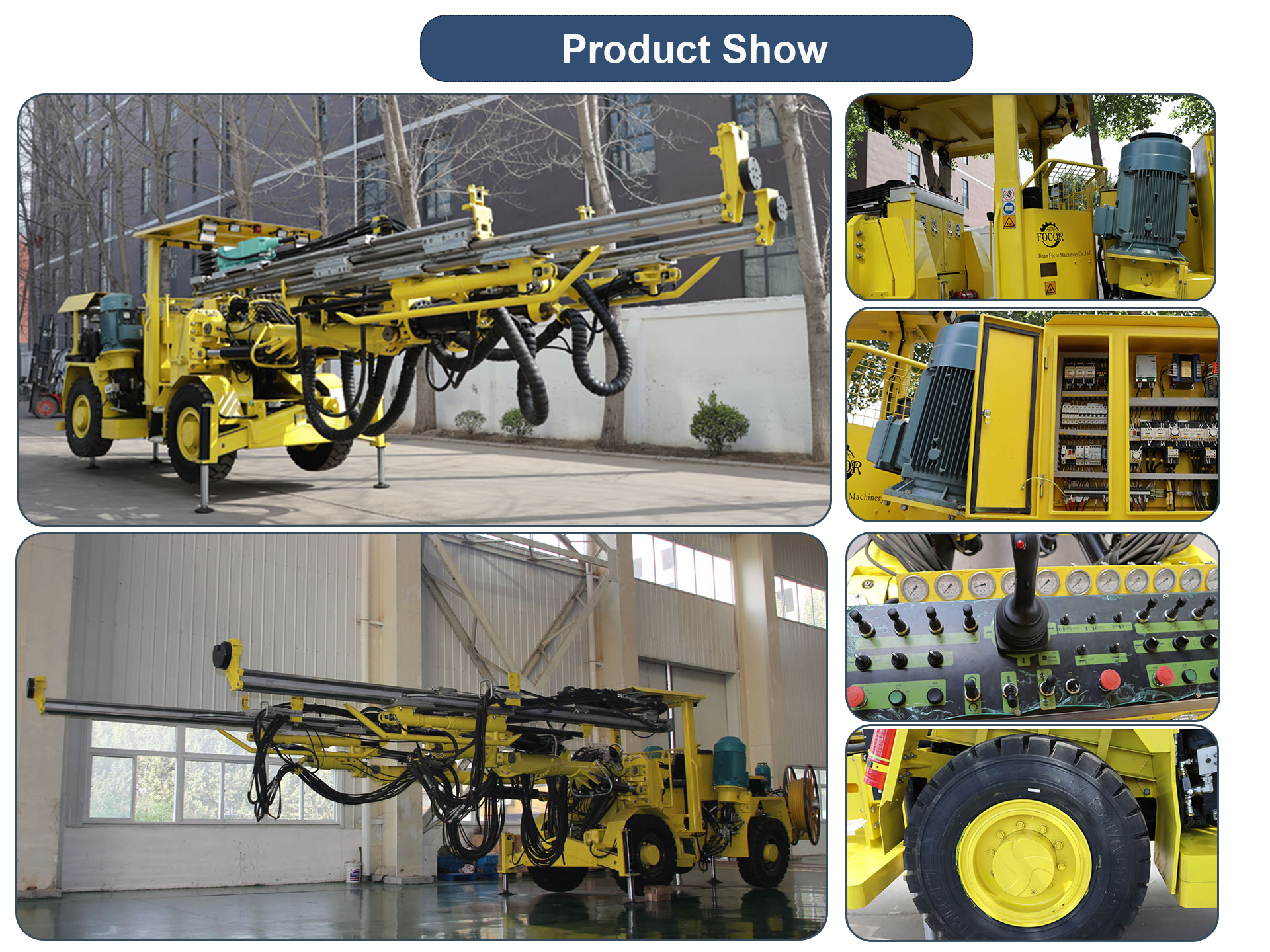

DETAIL PHOTO
| Rock Drill | Feed | |||
| Shank adapter | R32 R38 T38 T45 T76 | Total length | 5300 mm | |
| Feed impact force | ≤425 J | Drill rod length | 3700 mm | |
| Impact power | 24KW | Feed extension | 1250 mm | |
| Impact rate | 60-75 HZ | Hole depth | 3500 mm | |
| Impact pressure | 17-21 Mpa | Feed force, max | 15KN | |
| Rotation system | Separate rotation | Carrier | ||
| Rotation speed | 0---300 rpm | Diesel engine | Deutz D914L04 | |
| Rotation torque, max | 980 Nm | Power rating | 58 kW | |
| Water consumption | 80 L/min | Torque , max | 258 Nm | |
| Lub. Air consumption | 5 m3/min | Fuel oil tank volume | 60 L | |
| Hole diameter | 32 mm-76 mm | Fixed seat for tramming with safety belt | Yes | |
| Length without shank | 600 mm | Articulated Steering | ± 40° steering angle | |
| Height over drill center | 88 mm | Horn, beacon and reverse alarm | Yes | |
| Weight | 190 Kg | Four-wheel drive | Yes | |
| Sound Level | <110 dB(A) | Hydrostatic power steering system | Yes | |
| Hydraulic System | Hydrostatic transmission | Clark 12000 | ||
| Pumps unloaded at start | Yes | Front axle | Dana123 | |
 System pressure, max | 200 bar | Rear axle | Dana123 | |
| Electric System | Clearance outside axles | 15° | ||
| Motor model | ABB YX3 250M-4 | Hydraulic jacks, front | 2 extendable | |
| Power rating | 55 KW | Hydraulic jacks, rear | 2 extendable | |
| Air System | Service brakes | 2 separate circuits | ||
| Air pump | ABB 5.5 KW | Emergency and parking brakes | SHAR | |
| Working pressure/air supply | 2-8 bar | Electric system | 24 V | |
| Flow rate | 600 L/Min (6bar) | Batteries | 2 x 12 V, 70 Ah | |
| Air pressure gauge | Yes | Hydrostatic transmission | Clark 12000 | |
| Water System | Front axle | Dana123 | ||
| Water pump | ABB 7.5 KW | Rear axle | Dana123 | |
| Working pressure | 8-12 bar | Clearance outside axles | 15° | |
| Max Capacity | 150 L/min （13.5 bar) | Hydraulic jacks, front | 2 extendable | |
| Water pump power | 7.5 kw | Hydraulic jacks, rear | 2 extendable | |
| Shank Adapters | Service brakes | 2 separate circuits | ||
| Thread | R32 R38 T38 T45 T76 | Emergency and parking brakes | SHAR | |
| Shank lubrication | Oil-pressure air | Electric system | 24V | |
| Shank Length | 3090-6135 mm | Batteries | 2 x 12V, 70Ah | |
| Hole diameter | 32 mm-76 mm | Boom | ||
| Dimensions | Feed extension | 1250mm | ||
| Width | 1990 mm | Parallel holding | Complete | |
| Height roof (up/down) | 3000/2300 mm | Feed roll-over | ±180° | |
| Length | 11800 mm | Max. Lifting angle | +65°/-30° | |
| Weight | 18000 Kg | Max. Swinging angle | ±30° | |
| Tramming Speed | Weight, boom only | 1750 kg | ||
| On flat grond | 10 Km/h | |||
| Gradeability | 14° | |||
Sturdy, articulated carrier with four-wheel drive - Dana Axle from Germany. Powered by a strong and 5-cylinder Deutz diesel engine-EPA III/COM III approved and Quality guaranteed. Four jacks for stable set up - Jack cylinders made by FOCOR.
PLC control system makes the further mining equipment - Intelligent mining .Anti-jamming system with the rotation pressure control feed saves the miners on the costs of drilling rods. Two systems are designed by FOCOR - It makes us unique because we know mining process and rock conditions. Hydraulically controlled drilling system which incorporates the anti-jamming function Rotation Pressure Controlled Feed(RPCF); Impact, Rotation and feed adopt separate hydraulic pump, independent control loop ensure the stable power output.
FK20-2BCDL Twin-boom Hydraulic Face Drilling Jumbo
Download
| MODEL | BOOM | LENGTH | WIDTH | HEIGTH | DRILLING SECTION | SHANK | POWER OF DIESEL ENGINE | POWER OF ELECTRIC MOTOR | SPEC SHEET |
| FK20-1BCDL | Single | 11200 mm | 1910 mm | 2200 mm | 6×6 m | R32, R38, T38 | 58 kw | 55 kw | down |
| FK20-2BCDL | Twin | 11800 mm | 1900 mm | 3000 mm | 8.7 x 6.3 m | R32 R38 T38 T45 | 58 kw | 55 kw | down |
| FK80-2BCDL | Twin | 14161 mm | 2530 mm | 3091 mm | 13.4 x 8.65 m | R32 R38 T38 | 75 kw | 120 kw | down |
| FK80-3BCDL | Triple | 16300 mm | 2650 mm | 3790 mm | 12.79 x 15.6 m | R32 R38 T38 | 55 kw | 173 kw | down |
