Introduction to the 4 m³ Underground LHD Loader
Jan. 09, 2026

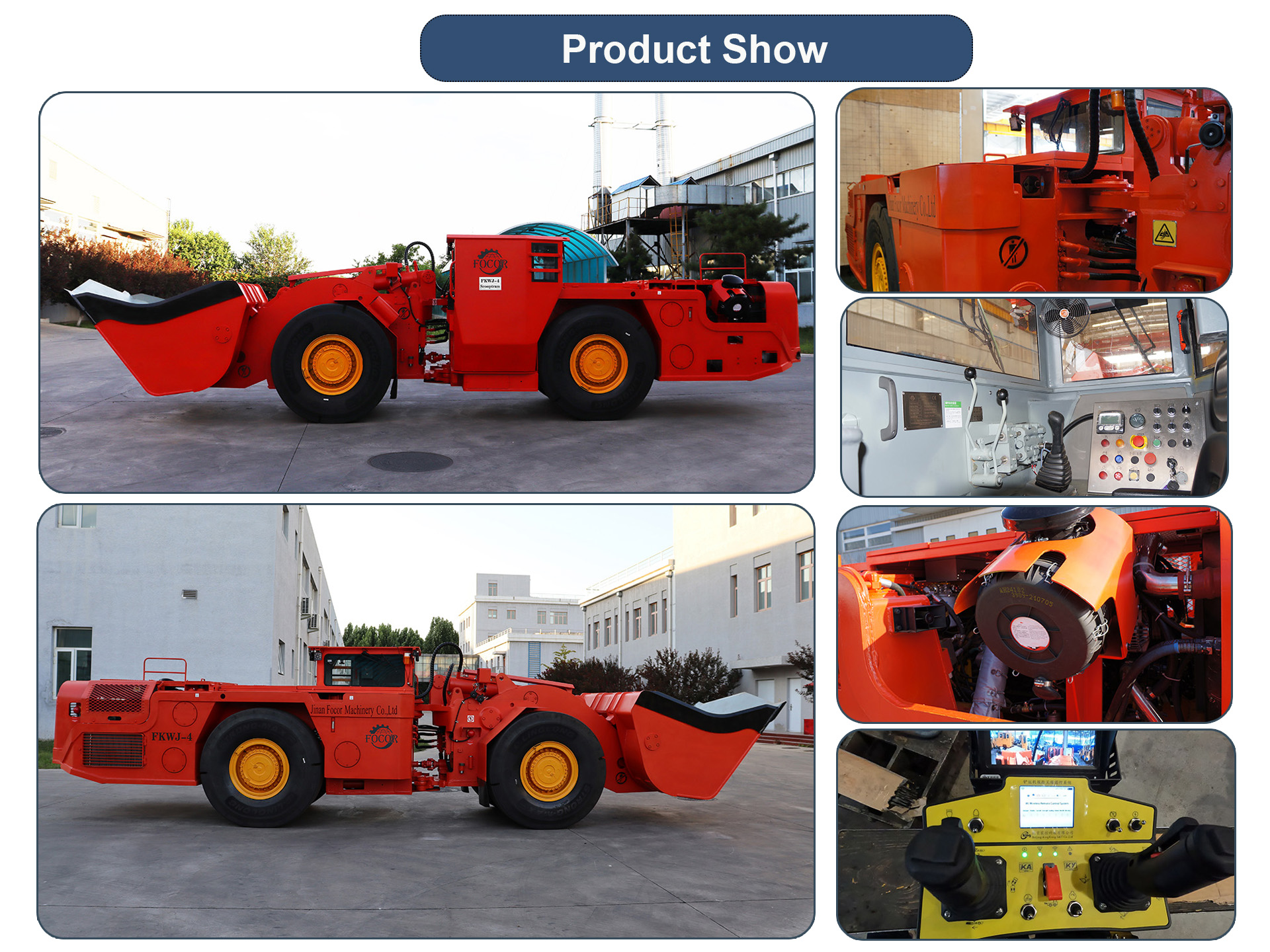

The 4 m³ underground LHD (Load-Haul-Dump machine, often referred to as a 4 m³ underground LHD) is a special underground mining loading and transportation equipment with a rated bucket capacity of 4 cubic meters. It is mainly used for loading and transporting ore and waste rock in underground non-explosive environments. The mainstream type is diesel-driven, with a rated load of 8–10 tons. It features articulated steering, four-wheel drive, compact flexibility, and safety reliability.
Underground Diesel Loader Technical Parameter
| General Parameter | Loader Weight & Capacity | ||
| Rated capacity | 8000 kg | Scooptram weight | 20000 kg |
| Length(bucket down) | 9400 mm | Load weight | 28000 kg |
| Width(bucket) | 2500 mm | Traveling performance | |
| Height(cabin) | 2300 mm | 1 shift forward/backward | 4 km/h |
| Bucket volume | 4 m³ | 2 shift forward/backward | 8.5 km/h |
| Lifting height | 4530 mm | 3 shift forward/backward | 15 km/h |
| Discharging height | 1850 mm | 4 shift forward/backward | 21 km/h |
| Min. Discharging distance | 1320 mm | Grade ability | 15% (load) |
| Discharging angle | 40° | Max. Traction | 200 KN |
| Min. Ground clearance | 355 mm | Max. Shovel | 180 KN |
| Departure angle | 15° | Tyre | 18-25 |
| Steering angle | left/right 40° | Diesel Engine | |
| Rear axle swing | ±8° | Brand | Germany DEUTZ |
| Min. Turning radius | inner 4700 mm | Model | F10L413W |
| Min. Turning radius | Outer 7500 mm | Type | Air cooling |
| Torque Converter | Rated Power | 170KW/2300 rpm | |
| Brand | American DANA | Remarks | Original Germany Deutz Brand |
| Model | C5000 | Optional brand | CUMMINS QSL 9/224kW |
| Type | Single stage two components with hydraulic pump drive | Shift Transmission | |
| Axle | Brand | American DANA | |
| Brand DANA | 16D | Model | R32000 |
| Optional KESSLER | D91 | Shift | Power shift (4 shifts)forward+backward with Emergency brake |
| Bucket | Driver Cabin | ||
| Material | Manganese steel | Reinforced with 6mm steel panel | YES |
| Ejector Bucket | For optional | Side-seat layout with good vision | YES |
Underground loader Application
Suitable for underground roadways of metal mines and non-metal mines without explosive gases, as well as small tunnel projects.Adapts to working environments with roadway width ≥ 2.5 m and cross-section ≥ 4×4 m, especially suitable for medium and small mines or branch roadways of large mines. It can be matched with 10 t-class underground mining trucks to form an efficient loading-transportation cycle.Optional remote control system for high-risk stopes or unmanned working faces to reduce personnel exposure risks.
