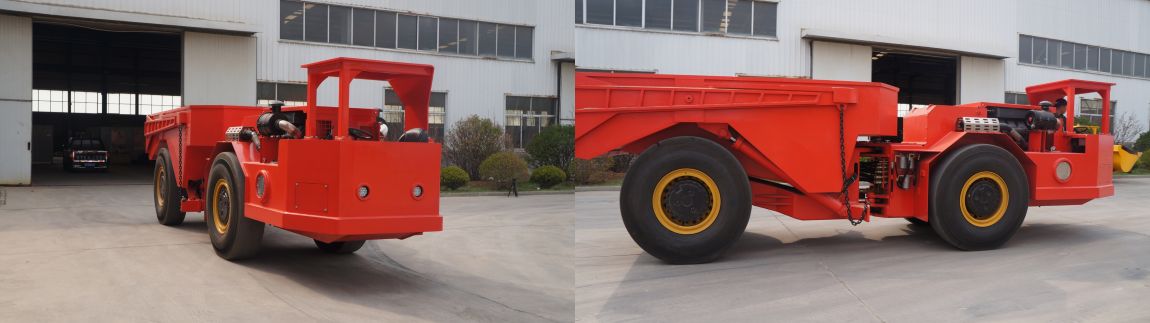

FUK‑12 Underground Haul Truck Delivers Reliable 12‑ton Performance for Underground Mines

Developed for narrow underground drifts and tough underground working scenarios, the FUK‑12 underground truck offers a rated payload capacity of 12000kg, becoming a cost‑effective haulage solution for medium‑scale metal and non‑metal mines.

Power comes from the original German DEUTZ BF6M1013FW water‑cooled diesel engine, which outputs 165kW at 2300rpm to guarantee stable power output under heavy‑load and high‑gradient working conditions. Matched with American DANA C270 torque converter and R32000 power‑shift transmission, the machine supports four‑speed forward‑and‑reverse shifting together with emergency brake function. The QY‑150 rigid planetary drive axle equipped with non‑spin anti‑slip differential delivers strong traction up to 160KN, and enables 25% gradeability under full‑load condition. The travelling speed ranges from 5 km/h at 1st gear to 22.5km/h at 4th gear to satisfy different haulage cycle requirements.

Safety‑oriented braking configuration includes service brake and spring‑applied parking brake. Fully‑enclosed multi‑disc wet hydraulic brakes are applied for service braking to adapt to dusty, wet underground environments and extend component service life. The whole vehicle dimension stands at 7560mm×2047mm×2410mm. It features 3710mm wheelbase and 400mm minimum ground clearance. The articulated steering design achieves ±40° steering angle, with inner turning radius of 4860mm and outer turning radius of 7650mm, making it agile in narrow underground roadways. The manganese‑steel bucket reaches 6 m³ volume; the dumping angle hits 62°, with 11‑second lifting time and 10‑second lowering time for fast unloading cycles.

Major hydraulic parts are sourced from well‑known international brands including Parker, Rexroth and Wabco. The hydraulic system is divided into working, steering, braking and oil‑charging acceleration circuits with stable rated working pressure. The driver cabin is reinforced with 6 mm‑thick steel plate and adopts side‑seat layout for broad field‑of‑view and operator safety.

To fit varied mine site requirements, optional configurations are available, such as remote‑control module, centralised lubrication system and rear‑view camera. Manufacturers can also carry out tailored dimension adjustment according to customers’ tunnel conditions. The total machine weight of FUK‑12 is 14500kg while gross loaded weight reaches 26500kg. It runs under 24V electric system with 14.00‑24 tyres for heavy‑duty underground transportation.

Mining operators can obtain optimised proposals with competitive budgets by offering detailed mine conditions. The FUK‑12 underground truck targets to lower site operating cost while maximising ore hauling efficiency for underground projects.
