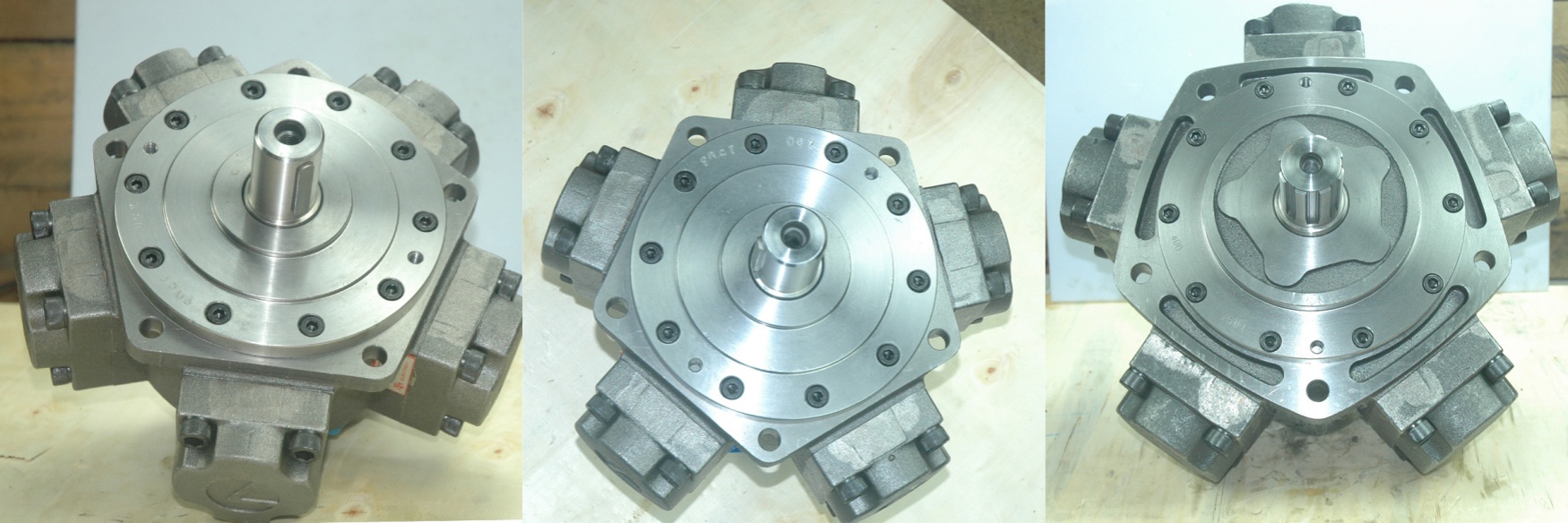

NHM Series Five-Star Hydraulic Motor Reliable Heavy Duty Power

Recently, the NHM series five-star hydraulic motor, based on classic Italian hydraulic technology and deeply optimized by localized craftsmanship, has attracted widespread attention in the hydraulic transmission field due to its excellent low-speed high-torque performance and stable quality. As a benchmark product of radial piston hydraulic motors, the NHM series is designed and manufactured in strict accordance with international standards, integrating precision mechanical structure and efficient hydraulic principles. Tailored for heavy-duty, low-speed and high-torque working conditions, it has been widely used in various global heavy machinery and equipment, becoming a recognized cost-effective drive solution in the industry.

The core advantage of the NHM series five-star hydraulic motor stems from its unique five-piston eccentric shaft structure design. Different from traditional motors, this structure adopts a low excitation frequency, resulting in small vibration and low noise during operation. Even in long-term continuous operation scenarios, it can maintain a stable operating state, significantly improving the equipment operating environment. At the same time, the radial arrangement of five pistons combined with the drive of the eccentric crankshaft endows the motor with super large starting torque and extreme low-speed stability, enabling stable operation without pulsation at an ultra-low speed of 1r/min. It is perfectly suitable for working conditions requiring precise start-stop and low-speed heavy-duty traction, such as mine winches, port cranes, and injection molding machine clamping mechanisms.

In terms of core performance and reliability, the NHM series is equipped with a patented planar compensation oil distribution plate, which has strong sealing and extremely low leakage. Combined with the high-precision sealing ring design between the piston and the plunger sleeve, the volumetric efficiency is greatly improved, and the energy utilization rate is higher. The crankshaft and connecting rod adopt a roller support structure, which reduces mechanical friction loss, achieves industry-leading mechanical efficiency, and reduces component wear to extend the overall service life. In addition, the motor can rotate in both directions, and the output shaft can withstand certain radial and axial external forces. It has strong installation adaptability and can be flexibly integrated into various hydraulic systems to meet the power requirements of different equipment. From the perspective of technical parameters, the NHM series has a complete product range, with displacement covering 63–5400ml/r, torque range 225–46420N·m, rated pressure of 25MPa and peak pressure of 31.5MPa, which can adapt to heavy-duty equipment of different power levels. Current mainstream models include NHM1, NHM2, NHM3, NHM6, NHM8, NHM11, NHM16, NHM31, NHM70, etc., which can meet the hydraulic drive needs of construction machinery, mining machinery, marine machinery, petroleum equipment, agricultural machinery, injection molding machinery and other industries.

In terms of manufacturing technology and quality control, the NHM series five-star hydraulic motor is made of high-strength cast iron. Key components undergo forging, precision machining and heat treatment processes, which are impact-resistant, wear-resistant and corrosion-resistant, and can adapt to harsh working conditions such as high temperature, high dust and high salt spray. The product has passed ISO9001 quality system certification and CE certification. Core components are 100% inspected, and strict pressure tests, torque tests and durability tests are conducted before delivery to ensure that each motor has stable and reliable performance, with a failure rate much lower than the industry average.

With outstanding product strength and cost-effectiveness, the NHM series five-star hydraulic motor has become a high-quality alternative to imported motors. Compared with similar imported products, the price can be reduced by 20%–30%, while providing the same performance and perfect after-sales service. At present, this series of motors has been exported in bulk to Europe, Southeast Asia, the Middle East, South America and other regions, and is widely used in underground loaders, mining drills, marine winches, port stackers, large injection molding machines and other equipment, winning unanimous recognition and praise from global customers. In the future, as industrial equipment develops towards heavy-duty, high-efficiency and energy-saving directions, the NHM series five-star hydraulic motor will continue to optimize technical processes, expand product models and application scenarios, and provide core power support for the global hydraulic transmission field with more excellent performance, more stable quality and more competitive prices, helping all kinds of heavy machinery and equipment operate efficiently and reliably.
