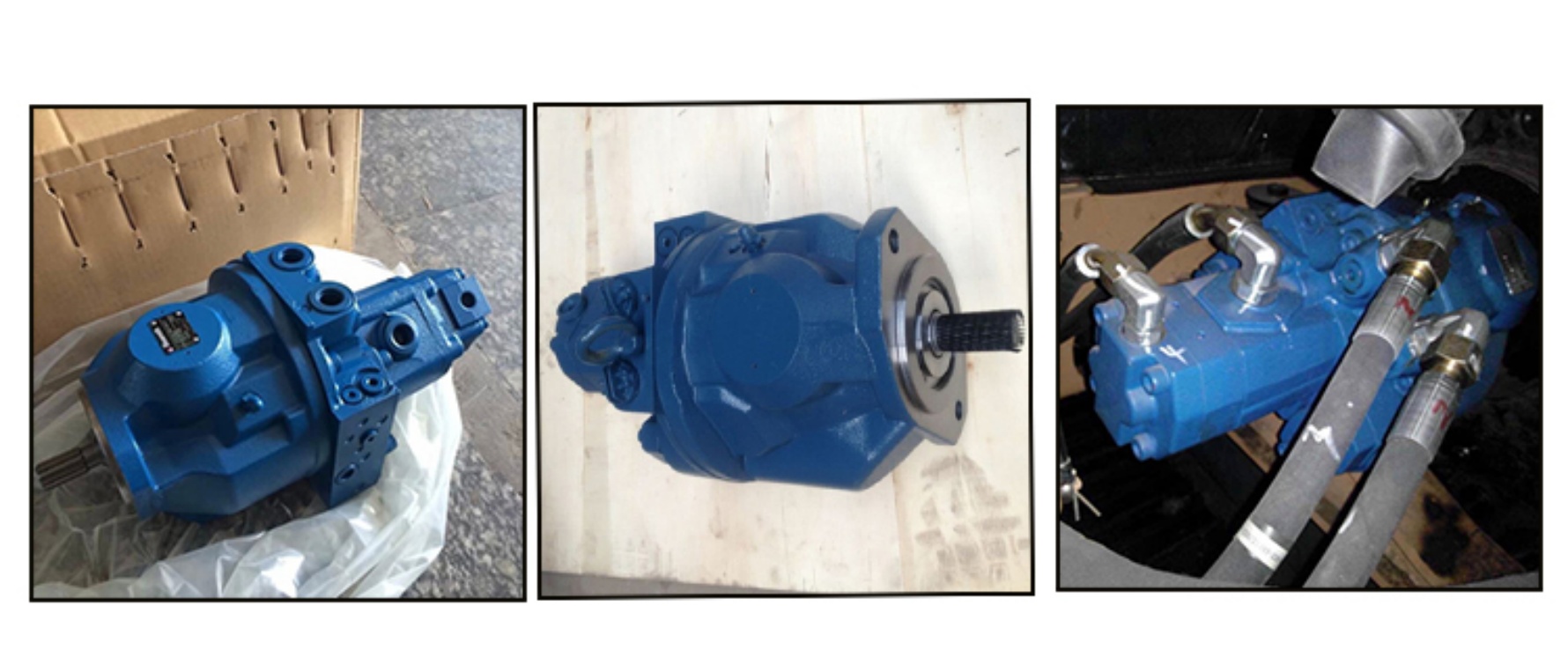

Rexroth AP2D: Core Hydraulic Power for Mini Excavators

Nowadays, the construction machinery industry keeps developing in segmented fields. Mini construction machinery is widely used in urban construction in narrow spaces, garden maintenance, rural infrastructure, indoor demolition, farm operations and other scenarios due to its small size, flexible mobility and strong site adaptability, leading to a continuous growth in market demand. As the power core of the whole machine, the hydraulic system’s performance, volume, stability and service life directly determine the working efficiency and overall operating cost of mini equipment, and it has also become a key area for technological competition among major hydraulic brands. As a world-leading brand in the hydraulic industry, Bosch Rexroth has launched the AP2D series dual variable displacement piston pump relying on a century of R&D and manufacturing experience as well as profound technical accumulation. This product accurately addresses the pain points of mini construction machinery, occupies an important share in the global market of hydraulic pumps for mini excavators for a long time, and is recognized as a benchmark product in the industry.

The AP2D series adopts a classic dual swash-plate piston structure and an innovative integrated common cylinder block design. It greatly reduces the overall volume and installation space while realizing two independent hydraulic flow outputs, perfectly solving the contradiction between limited installation space and sufficient working power of mini equipment. This product line includes a variety of mature displacement specifications, covering mainstream models of 12cm³/r, 18cm³/r, 21cm³/r, 25cm³/r and 36cm³/r. It can be matched with mini excavators, small loaders, micro crushing equipment, agricultural construction machinery and other equipment ranging from 3 to 6 tons with different power and working requirements. In terms of pressure parameters, the rated working pressure of AP2D reaches 24.5MPa, and the instantaneous peak pressure is up to 31.4MPa. It can not only meet the requirements of continuous light-load operation on a daily basis, but also cope with short-term heavy-load working conditions such as crushing, excavation and lifting. The pressure output is stable without obvious impact fluctuation, ensuring smooth and consistent movements of the whole equipment.

In terms of core technology, AP2D is equipped with Bosch Rexroth’s mature constant power control system. This intelligent regulation mechanism can real-time perceive the load changes of the equipment and dynamically adjust the output flow and power ratio of the piston pump. When the equipment is in no-load or light-load state, it automatically reduces power output to lower the load on the engine and fuel consumption. When facing heavy-load operations, it quickly increases power output to guarantee working force. Actual tests show that mini equipment equipped with this pump can achieve more than 15% improvement in comprehensive fuel efficiency, effectively cutting operating costs for end users in long-term use. Meanwhile, the product adopts a highly integrated modular design. The pilot gear pump, load sensing control valve, pressure regulating components and other auxiliary structures are all built-in, eliminating the need for additional auxiliary hydraulic components. This design not only simplifies the hydraulic pipeline layout of the whole machine and reduces the risk of pipeline leakage, but also greatly cuts down potential failure points, making the equipment run more stably and reliably.

Material and craftsmanship are the fundamental guarantee for the long service life of AP2D. The pump housing is made of high-strength corrosion-resistant alloy cast iron, which has excellent deformation resistance and vibration resistance, and can adapt to complex working environments with bumps and collisions on construction sites. Core moving parts inside the pump such as pistons, slippers and valve plates are made of special wear-resistant steel, and undergo multiple precision heat treatments and surface hardening processes to greatly enhance hardness and wear resistance. Under harsh working conditions with dense dust, high oil temperature and contaminated hydraulic oil on construction sites, this pump can still operate stably, effectively extending the overall service life. Compared with ordinary hydraulic pumps of the same type, it has a much lower failure rate and a greatly prolonged maintenance cycle.

Strong universality and compatibility are also important reasons why the AP2D series is widely recognized by the market. The whole pump adopts the internationally universal SAE standard flange structure. Its installation dimensions, shaft end specifications and oil port layout all comply with general industry standards. It can directly replace many Japanese and domestic dual piston pumps of the same specification on the market, making equipment renovation and parts replacement simple and convenient. It is compatible with mini construction machinery from mainstream domestic and foreign brands including Hyundai, Doosan, Kubota, Bobcat, Sany and XCMG. In terms of control modes, the brand provides diversified configuration options, including basic pressure compensation control, high-precision load sensing control, remote unloading control and multi-pump pressure linkage control. Users can flexibly select configurations according to different working scenarios, operating habits and equipment design schemes, meeting the demands of standardized mass production and personalized customization.

From the perspective of market application, the AP2D series has passed years of market verification and is sold all over the world. In urban renewal projects, it empowers mini excavators to work flexibly in narrow spaces such as streets, basements and corridors. In landscape engineering, it stably drives excavators and transportation equipment to complete earthwork sorting and seedling transplanting. On construction sites for rural infrastructure and farmland water conservancy in remote areas, it delivers power stably all day long relying on its strong environmental adaptability. Whether in mature construction machinery markets in Europe and America or emerging infrastructure markets in Asia, Africa and Latin America, this product has won unanimous praise from end users, equipment manufacturers and maintenance service providers due to its high reliability, low maintenance cost and strong compatibility.

As the global construction machinery industry continues to upgrade towards lightweight, energy saving, intelligence and environmental protection, the technical requirements for mini equipment are also constantly improving. Bosch Rexroth keeps optimizing the technology and craftsmanship of the AP2D series instead of resting on its laurels. The brand continuously optimizes the internal flow channel structure, noise reduction design and sealing system to further reduce operating noise, improve sealing performance and enhance energy-saving effect. As a classic product in the field of miniature hydraulics, the AP2D series is not only a direct reflection of Bosch Rexroth’s technical strength, but also leads the development trend of small hydraulic piston pumps. In the future, this time-tested core component will continue to provide stable, efficient and economical hydraulic power solutions for global mini construction machinery with excellent overall performance, and continuously empower the global small-scale infrastructure and special engineering operation sectors.
