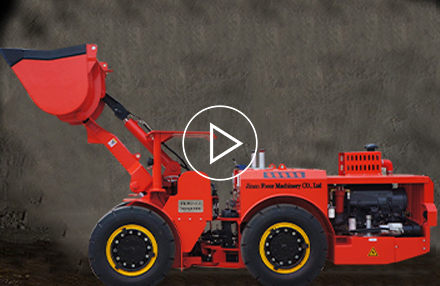

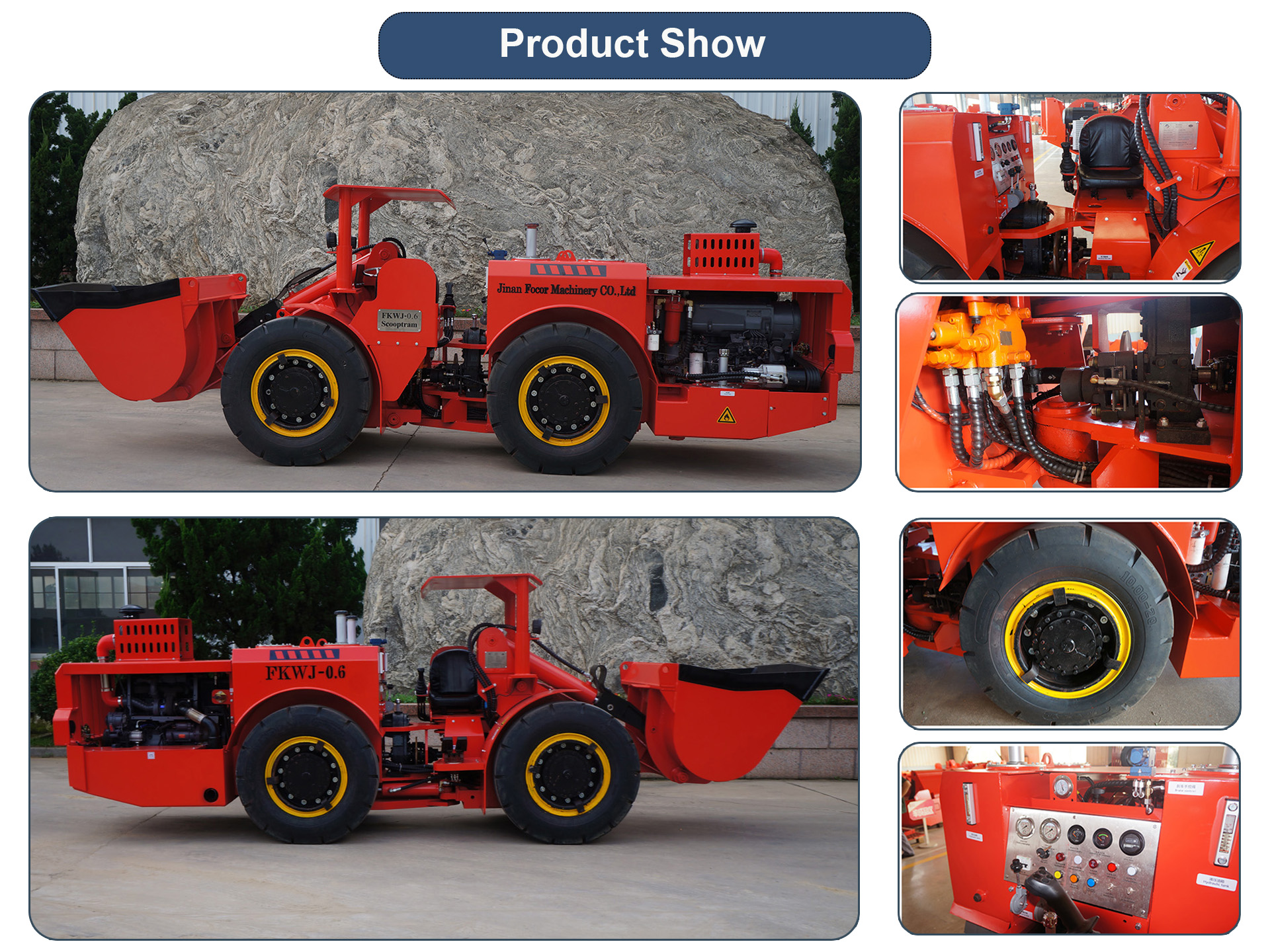

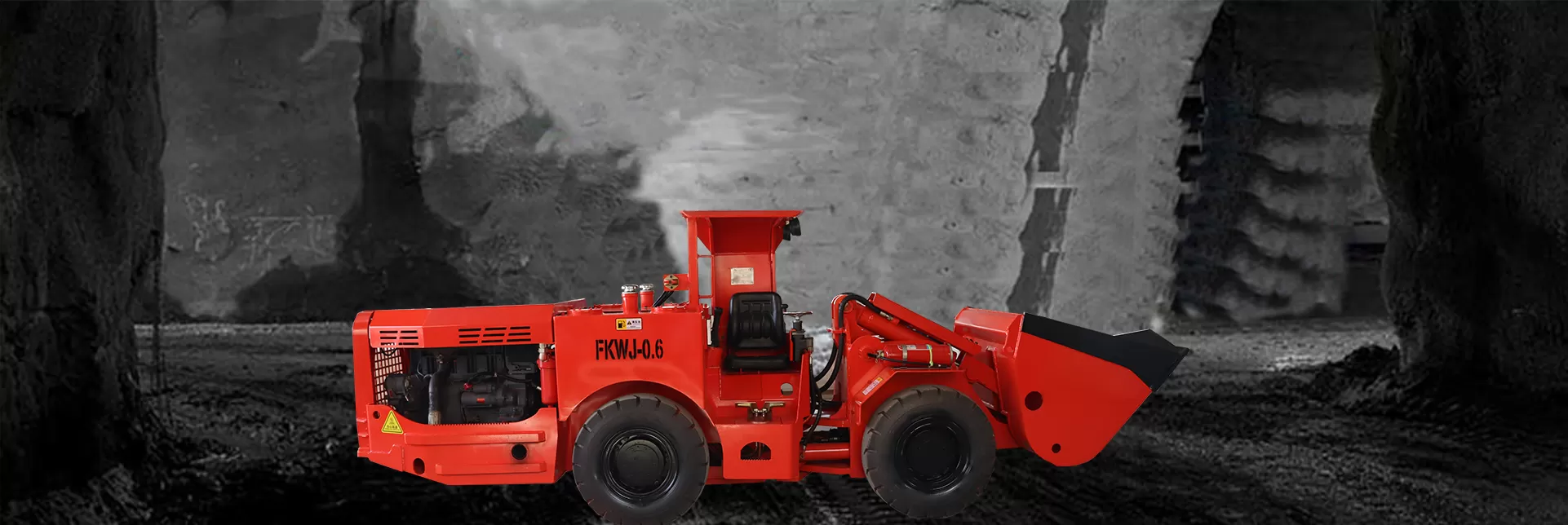

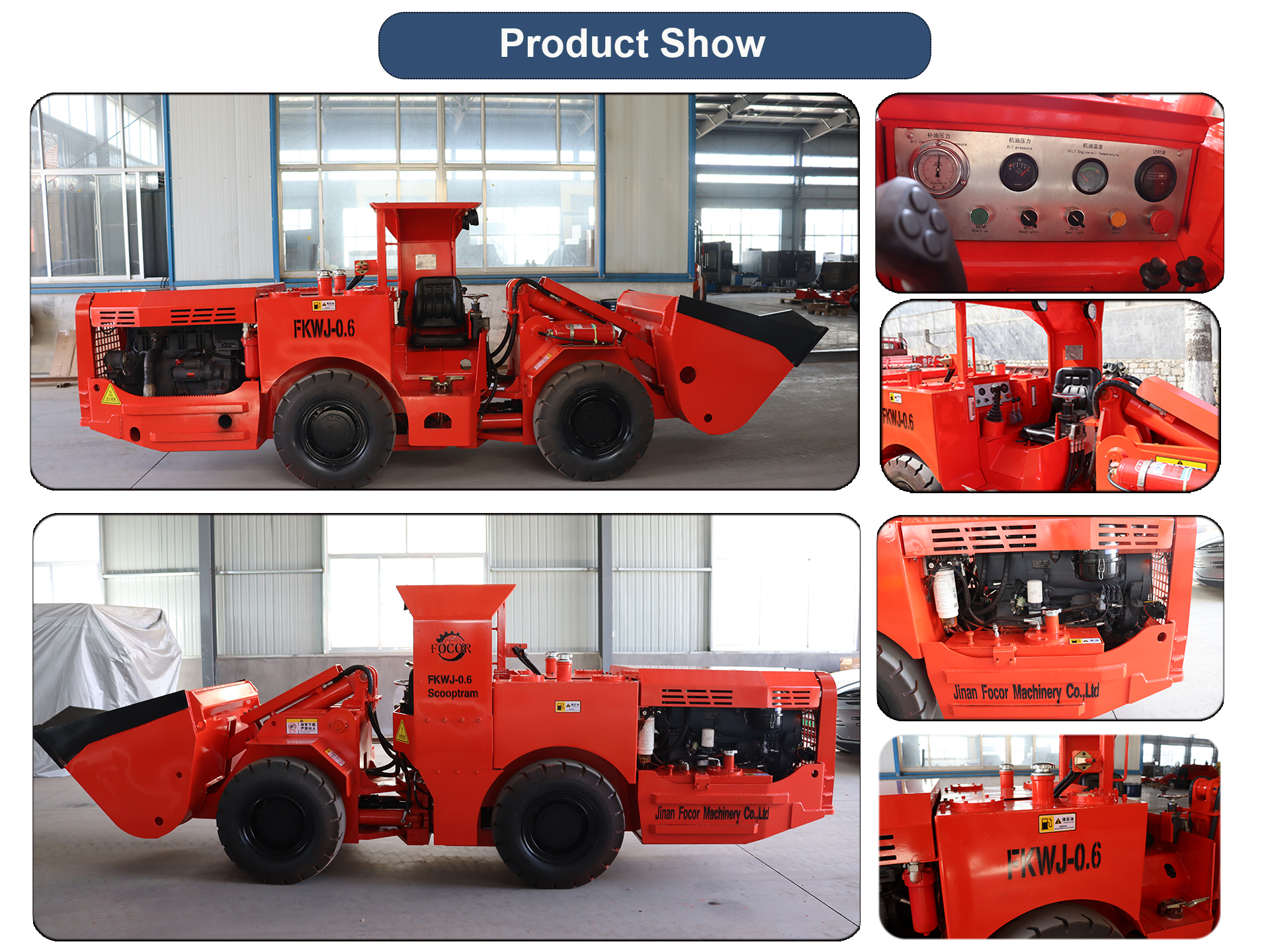

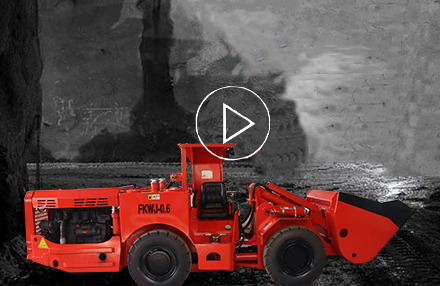

FKWJ-0.6 is a reliable 1.2 ton Underground Diesel Loader . This mini underground diesel loader is designed with a high-strength steel frame and features a heavy-duty, fully mechanical powertrain. It has the characteristics of compact structure, convenient operation, low energy consumption, low noise, high protection level, good power performance, low operating cost and high production efficiency. It is a new type of equipment for small and medium-sized underground mines or mine renovation and upgrading.
FKWJ-0.6 underground loader is a diesel engine-driven machine with low body, hydraulic mechanical transmission, hairpin frame, tire running, and front self-unloading bucket. It can be independently loaded, transported and unloaded by a single person. It is suitable for ore extraction and roadway excavation in mining methods such as segmental caving, empty field, room and pillar, shrinkage, and layered filling.
The FKWJ-0.6 underground mining loader fuel efficient 58KW DEUTZ D914L04 engine delivers powerful thrust for fast bucket filling and high speed tramming for high productivity. FKWJ-0.6 underground mining loader provides excellent hydraulic power for fast loading. There are two types of our hydraulic systems, one is manual lubrication and the other is centralized lubrication system. The main accessories we use for our underground mining loaders are all international brands. The hydraulic motor we use is Danfoss 9M075 imported variable piston motor. The hydraulic pump uses REXROTH A4VG56 fully reversible variable displacement plunger pump .
With superior hydraulic power for fast bucket fills and drive train power for high ramp speeds, this FKWJ-0.6 underground diesel loader clears tunnel headings quickly for quick advances. Engineered to optimize machine width, length and turning radius, enabling operation in narrower tunnels for less dilution and lower operational costs. Long-life components developed for harsh subterranean environments help reduce cost per ton.Long-life components developed for harsh subterranean environments help reduce cost per ton.
Designed with operator and maintenance safety in mind, the rugged loader is equipped with a quiet, spacious and ergonomic cabin. Smart placement of key service areas as well as multiple digital solutions offer easy maintenance access.
1. The closed static pressure stepless variable speed drive system composed of hydraulic variable piston pump and hydraulic variable piston motor is adopted, which greatly improves the production efficiency;
2. The motor is used as the power source, no pollution, low energy consumption, and plateau motors are optional for areas with high altitudes;
3. The cable retraction is controlled by the hydraulic cable drum valve, which effectively protects the transition and extension of the cable and prolongs the service life.
|General Parameter||Loader Weight & Capacity|
|Rated capacity||1200 kg||Scooptram weight||5500 kg|
|Length(bucket down)||4910 mm||Load weight||6700 kg|
|Length(bucket up)||4780 mm||Traveling Performance|
|Width(bucket)||1150 mm||Forward/backward||0-9.8 km/h|
|Width(frame)||1150 mm||Grade ability||25%|
|Height(cabin)||1825 mm||Max. Traction||35 KN|
|Bucket volume||0.6 m3||Max. Shovel||33 KN|
|Discharging height||910 mm||Tyre size||8.25-15|
|Min. Ground clearance||145mm||Tyre pressure||0.6-0.7 MPa|
|Departure angle||15°||Diesel Engine|
|Steering angle||left/right 38°||Brand||Germany DEUTZ|
|Rear axle swing||6°||Model||D914L04|
|Min. Turning radius||inner 2030 mm||Type||Air cooling, Tier III, Stage 3A|
|Min. Turning radius||Outer 3430 mm||Rated Power||58KW/2300rpm|
|Model||A4VG56||Ejector Bucket||For optional|
|Type||Fully reversible variable piston pump||Control system|
|Hydraulic motor||Manual control||YES|
|Brand||DANFOSS||Remotor control||For optional|
|Type||Imported Variable |
|Manual Fire extinguisher||YES|
|Lubrication system||Centralized Fire extinguisher||For optional|
|Centralized lubrication||For optional|
Strong:This small LHD is designed with a high-strength steel frame. The steel structure frame has light weight and high material strength, which can improve the service life of the machine. Designed for long component life. Rugged steel frame, mining grade components, heavy-duty all mechanical powertrain, severe-duty electrical system and collet-style pins.
Comfortable：Engineered for operator comfort and visibility for enhanced performance and zero injuries. Easy-to-use two-hand controls simplify training and operation of this underground diesel loader.
Customized: Customize to meet your needs. Some of the options that can be customized include body and baffle engine selection, enclosed cab, hydraulic joints standard optional, automatic centralized, lubricated, centralized fire extinguishing system.
FKWJ-0.6 Underground Diesel Loader
|FKWJ-0.6||1200 kg||0.6 m³||4910 mm||1150 mm||1825 mm||58 kw|
|FKWJ-1||2000 kg||1 m³||5700 mm||1300 mm||1920 mm||58 kw||Diesel Engine||down|
|FKWJ-2||4000 kg||2 m³||7060 mm||1500 mm||2009 mm||84 kw||Diesel Engine||down|
|FKWJ-3||7000 kg||3 m³||9350 mm||2150 mm||2252 mm||165 kw||Diesel Engine||down|
|FKWJ-4||8000 kg||4 m³||9400 mm||2500 mm||2300 mm||170 kw||Diesel Engine||down|
|FKWJ-6||14000 kg||6 m³||10502 mm||2864mm||2545mm||256 kw||Diesel Engine||down|
|FKWJ-0.6E||1200 kg||0.6 m³||4960 mm||1150 mm||1760 mm||30 kw||Electric Motor||down|
|FKWJ-1E||2000 kg||1 m³||5710 mm||1300 mm||1920 mm||45 kw||Electric Motor||down|
|FKWJ-2E||4000 kg||2 m³||7130 mm||1840 mm||1964 mm||75 kw||Electric Motor||down|
|FKWJ-3E||6000 kg||3 m³||8600 mm||2160 mm||2760 mm||90 kw||Electric Motor||down|
