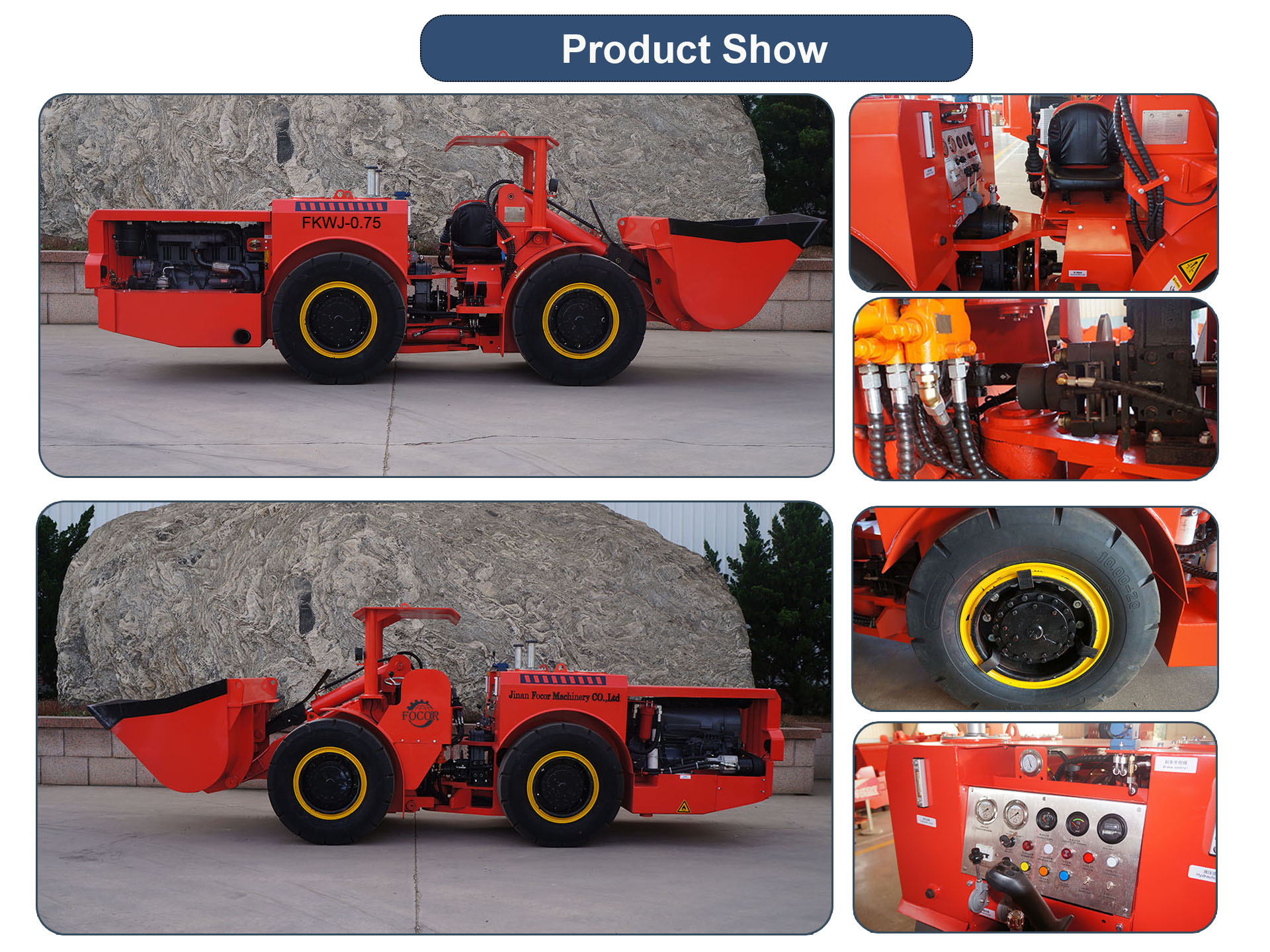

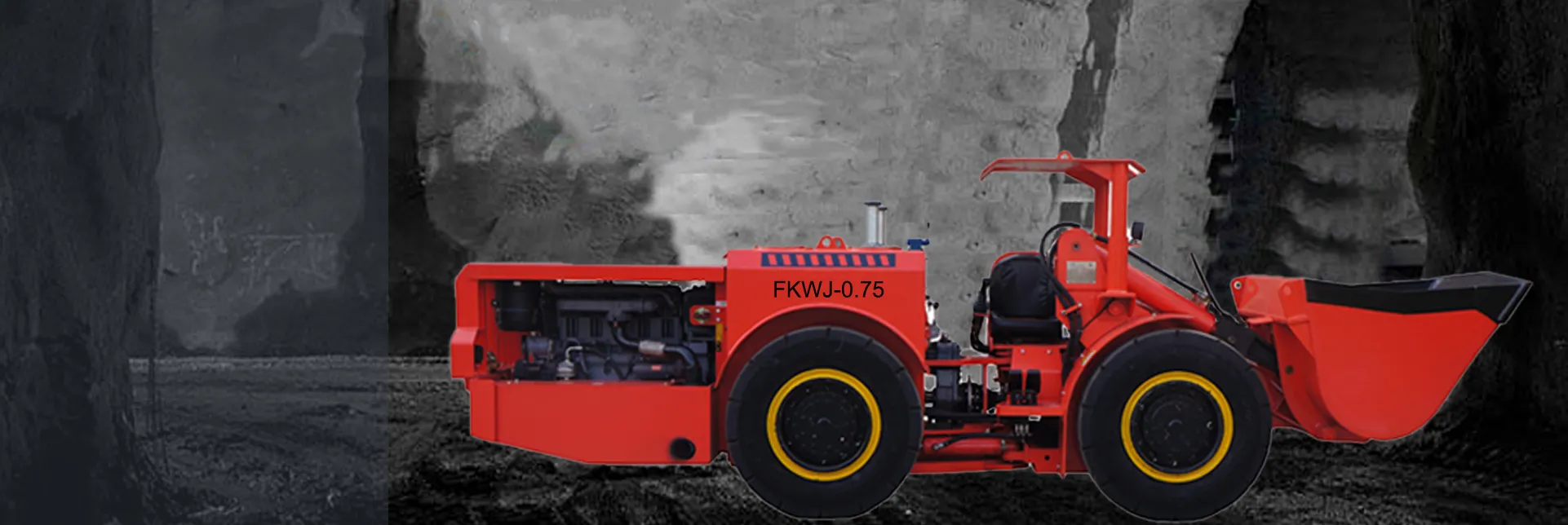

The FKWJ-0.75 is a small robust underground loader with a hauling capacity of 1.2 tons. The combination of small size and powerful performance is the key to the FKWJ-0.75 mini scooptram to achieve excellent productivity in a small space. The loader's rugged construction provides long-term durability and increased uptime. In stenotic vein work, it reduces dilution, improves dexterity and operator safety. It is easy to operate and maintain, and its operator's cab is located in the rear frame of the machine to ensure enhanced operator safety. The loader's rugged construction provides long-term durability and increased uptime.
The FKWJ-0.75 underground diesel loader provides superior hydraulic power for fast bucket filling. Driveline power enables high speeds and increases productivity. Long-life components developed for harsh subterranean environments help reduce cost per ton.
High power-to-weight ratio improves muck pile penetration, reducing load cycle times. Turbocharged engines are especially effective in high altitude applications. Rugged construction not only increases uptime, but also enhances operator safety and comfort.
All the accessories of this loader we use are international famous brands. Our hydraulic motor uses SAUER pv22 imported Variable motor. The hydraulic pump is configured with SAUER PV22 fully reversible variable piston pump.Our control system can choose manual or remote control, giving customers more choices.
The sturdy boom, load frame, LED lights and new instrument panel gauge cluster increase safety, production and operator comfort. To maximize uptime by making maintenance quick and efficient, the Scooptram FKWJ-0.75 is designed with easy access to all daily work.
1. Closed hydrostatic and stepless variable speed driving system composed of hydraulic pump and hydraulic motor,which runs smoothly and comfortably and produces production efficiency;
2. Wheeled central double articulation structure, unique in China, longer service life;
3. Hydraulic control control system design, more humanized; Easy to operate and labor-saving.
|General Parameter||Loader Weight & Capacity|
|Rated capacity||1200 kg||Scooptram weight||6500 kg|
|Length||4910 mm||Load weight||8000 kg|
|Width(bucket)||1295 mm||Traveling Performance|
|Width(frame)||1250 mm||Forward/backward||0-9.5 km/h|
|Height(cabin)||1920 mm||Grade ability||25%|
|Bucket volume||0.75 m3||Max. Traction||45 KN|
|Discharging height||1300 mm||Max. Shovel||42 KN|
|Wheelbase||1880 mm||Tyre size||10.0-20|
|Min. Ground clearance||195 mm||Tyre pressure||0.6-0.7 MPa|
|Departure angle||15°||Diesel Engine|
|Steering angle||left/right 38°||Brand||Germany DEUTZ|
|Rear axle swing||±6.5°||Model||D914L04|
|Min. Turning radius||inner 2100 mm||Type||Air cooling, Tier III, Stage 3A|
|Min. Turning radius||Outer 3900 mm||Rated Power||58KW/2300rpm|
|Model||PV22||Ejector Bucket||For optional|
|Type||Fully reversible variable piston pump||Control system|
|Hydraulic motor||Manual control||YES|
|Brand||SAUER||Remotor control||For optional|
|Model||MV 22||Fire system|
|Type||Imported Variable |
|Manual Fire extinguisher||YES|
|Lubrication system||Centralized Fire extinguisher||For optional|
|Centralized lubrication||For optional|
Main parts are imported top brand, like Deutz Engine, Sauer PV pumps and motors, Parker pump and valves etc.;
Brake system is equipped with Forceps disc, hydraulic release and spring brake, supply better braking performance; Central articulated full hydraulic steering.
Tailor made size and optional parts for customers to choose: remote control, ejector bucket etc.
|FKWJ-0.6||1200 kg||0.6 m³||4910 mm||1150 mm||1825 mm||58 kw|
|FKWJ-1||2000 kg||1 m³||5700 mm||1300 mm||1920 mm||58 kw||Diesel Engine||down|
|FKWJ-2||4000 kg||2 m³||7060 mm||1500 mm||2009 mm||84 kw||Diesel Engine||down|
|FKWJ-3||7000 kg||3 m³||9350 mm||2150 mm||2252 mm||165 kw||Diesel Engine||down|
|FKWJ-4||8000 kg||4 m³||9400 mm||2500 mm||2300 mm||170 kw||Diesel Engine||down|
|FKWJ-6||14000 kg||6 m³||10502 mm||2864mm||2545mm||256 kw||Diesel Engine||down|
|FKWJ-0.6E||1200 kg||0.6 m³||4960 mm||1150 mm||1760 mm||30 kw||Electric Motor||down|
|FKWJ-1E||2000 kg||1 m³||5710 mm||1300 mm||1920 mm||45 kw||Electric Motor||down|
|FKWJ-2E||4000 kg||2 m³||7130 mm||1840 mm||1964 mm||75 kw||Electric Motor||down|
|FKWJ-3E||6000 kg||3 m³||8600 mm||2160 mm||2760 mm||90 kw||Electric Motor||down|
