OverviewFKWJ-1undeground mining loader is a reliable 2 rated capacity for narrow vein applications. FKWJ-1 scooptram high strength steel frame design with heavy duty. The FKWJ-1 underground mining loader fuel efficient 58KW DEUTZ D914L04 engine delivers powerful thrust for fast bucket filling and high speed tramming for high productivity. FKWJ-1 underground mining loader provides excellent hydraulic power for fast loading. Full hydraulic control of drive reversing and speed regulating system, fast and sensitive response. The appearance design is compact, flexible, with strong passing capacity and higher ore extraction efficiency. There are two types of our hydraulic systems, one is manual lubrication and the other is centralized lubrication system.
The FKWJ-1 Underground Diesel Loader has a powertrain tuned specifically for incline speeds to handle harsh ground conditions and deliver maximum production across all speed ranges. It has the strength and durability needed to work in harsh conditions, but its precise control and efficient operation set it apart. It offers exceptional stability, excellent digging and lifting capabilities, a variety of efficiency-enhancing features, and a transmission that delivers constant power.
It integrates working brake, parking brake and emergency brake, which simplifies the braking system. The brake adopts spring brake and hydraulic release, and the brake is safe and reliable. The model is cost-effective. Fully enclosed wet brake device, hydraulic service brake system and spring-type parking brake system, safe and reliable,better comfort;
The basic structure of diesel scraper is the same as that of underground scraper. It is characterized by the discharge of a large number of carbon monoxide, nitrogen oxides, aldehydes and carbon and other harmful substances in the process of work, pollution of the working environment, damage to human health. Therefore, diesel exhaust has strict requirements, generally specified carbon monoxide ≤30mg/m3, nitrogen oxide ≤8mg/m3. The main technical measures to reduce the harm of exhaust gas are strictly controlling the emission of harmful gas from diesel engine exhaust gas and setting up the exhaust gas purification equipment outside the engine.
Advantage
1. Ergonomics Canopy with side seat to provide good bi-directional view of operation.
2. An enhanced boom and load frame geometry optimizes digging performance.
3. Hydraulic joystick control for working to reduce the labor intensity of the driver.

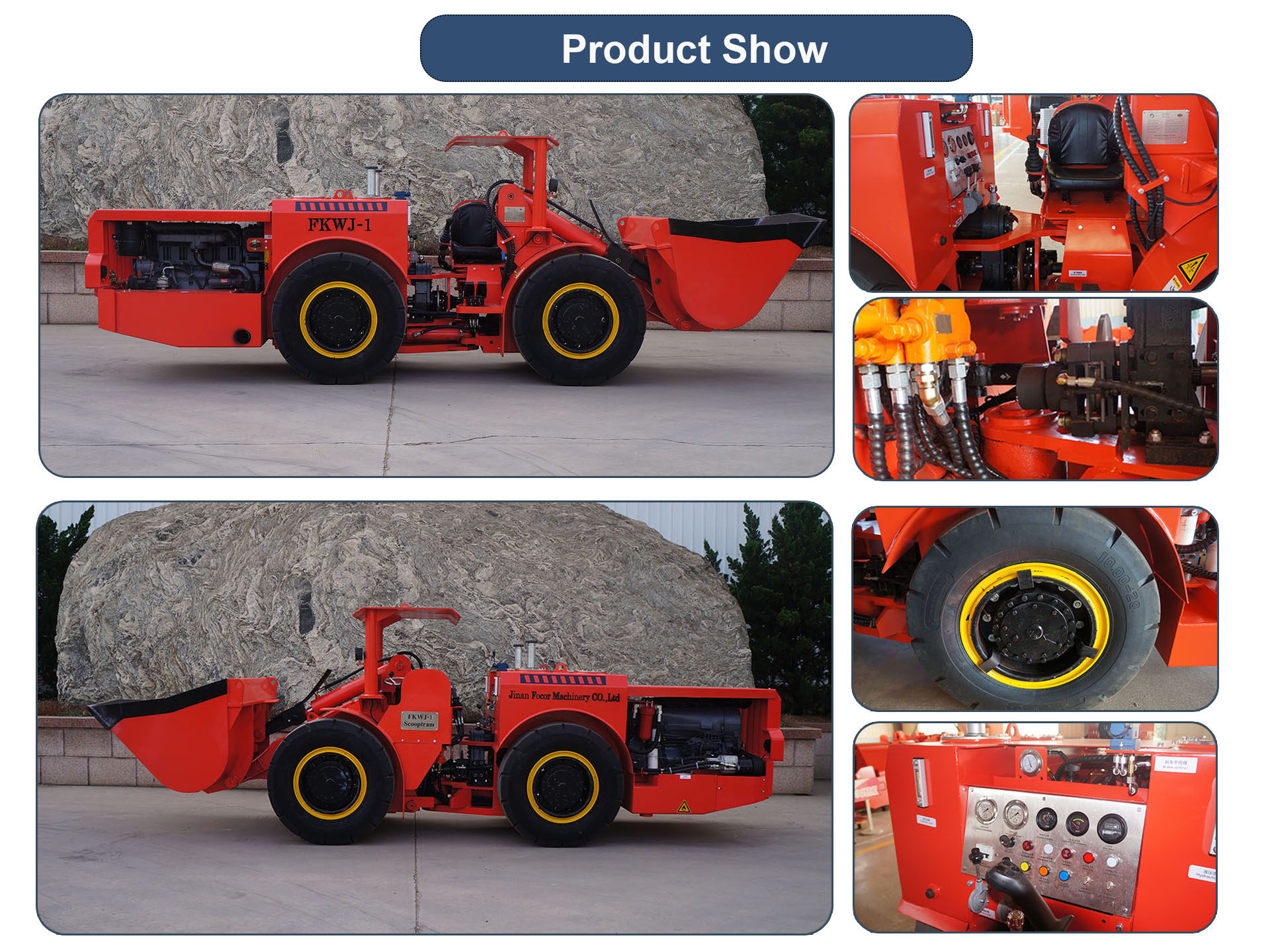

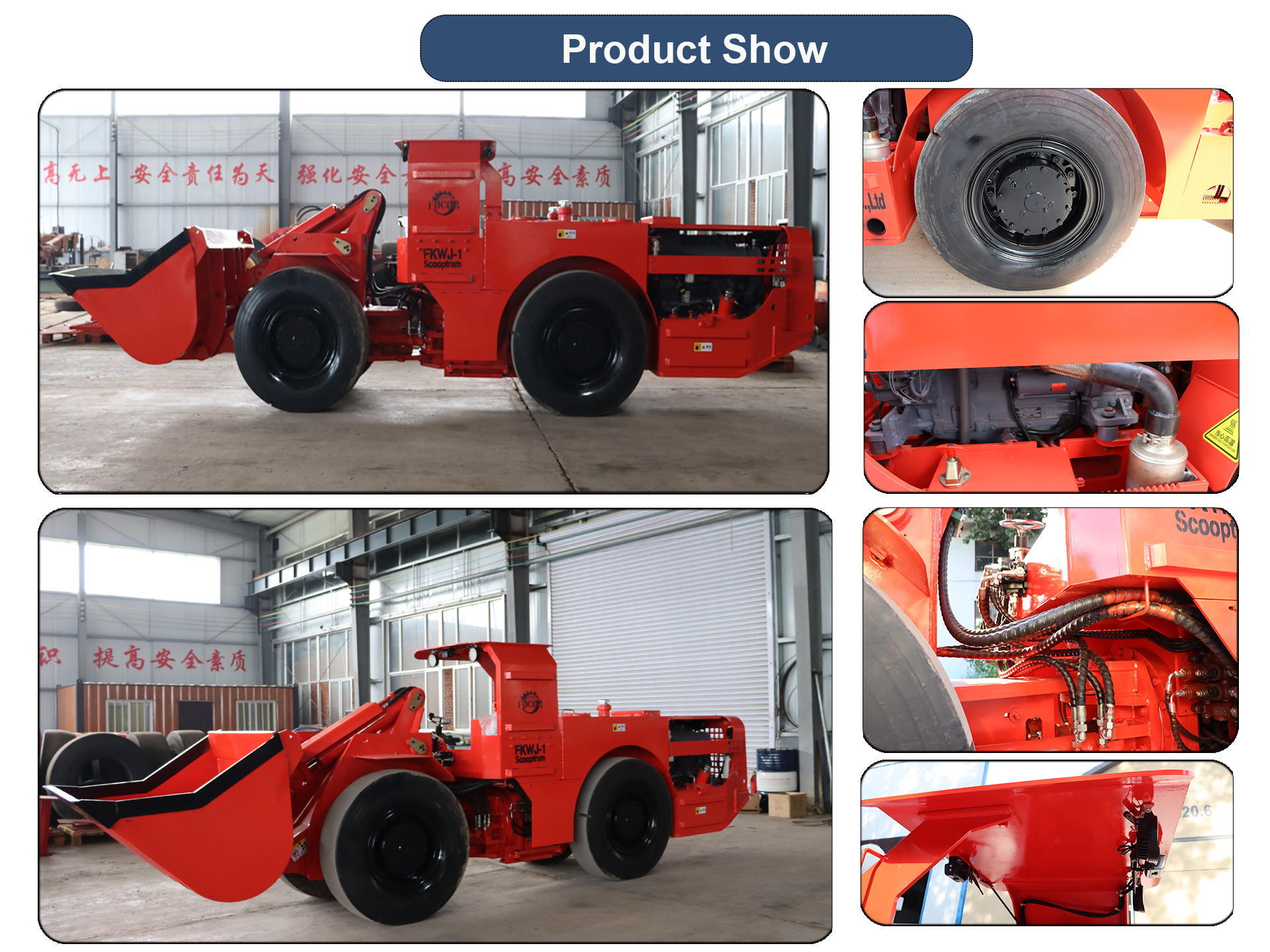

Detail Photos
| General Parameter | Loader Weight & Capacity | |||
| Rated capacity | 2000 kg | Scooptram weight | 6780 kg | |
| Length | 5700 mm | Load weight | 8780 kg | |
| Width(bucket) | 1395 mm | Traveling Performance | ||
| Width(frame) | 1300 mm | Forward/backward | 0-12 km/h | |
| Height(cabin) | 1920 mm | Grade ability | 25% | |
| Bucket volume | 1 m3 | Max. Traction | 54 KN | |
| Discharging height | 1300 mm | Max. Shovel | 45 KN | |
| Wheelbase | 1880 mm | Tyre size | 10.0-20 | |
| Min. Ground clearance | 195 mm | Tyre pressure | 0.6-0.7 MPa | |
| Departure angle | 15° | Diesel Engine | ||
| Steering angle | left/right 38° | Brand | Germany DEUTZ | |
| Rear axle swing | ±6.5° | Model | D914L04 | |
| Min. Turning radius | inner 2100 mm | Type | Air cooling, Tier III, Stage 3A | |
| Min. Turning radius | Outer 4120 mm | Rated Power | 58KW/2300rpm | |
| Hydraulic Pump | Bucket | |||
| Brand | SAUER | Material | Manganese steel | |
| Model | PV22 | Ejector Bucket | For optional | |
| Type | Fully reversible variable piston pump | Control system | ||
| Hydraulic motor | Manual control | YES | ||
| Brand | SAUER | Remotor control | For optional | |
| Model | MV 22 | Fire system | ||
| Type | Imported Variable piston motor | Manual Fire extinguisher | YES | |
| Lubrication system | Centralized Fire extinguisher | For optional | ||
| Manual lubrication | YES | |||
| Centralized lubrication | For optional | |||
Main parts are imported top brand, like Deutz Engine, Sauer PV pumps and motors, Parker pump and valves etc.;
Brake system is equipped with Forceps disc, hydraulic release and spring brake, supply better braking performance; Central articulated full hydraulic steering.
Tailor made size and optional parts for customers to choose: remote control, ejector bucket etc.
FKWJ-1 Underground Diesel Loader
Download
| PRODUCT | PAYLOAD | BUCKET | LENGTH | WIDTH | HEIGHT | POWER | TYPE | SPEC SHEET |
| FKWJ-0.6 | 1200 kg | 0.6 m³ | 4910 mm | 1150 mm | 1825 mm | 58 kw | Diesel Engine | down |
| FKWJ-1 | 2000 kg | 1 m³ | 5700 mm | 1300 mm | 1920 mm | 58 kw | Diesel Engine | down |
| FKWJ-2 | 4000 kg | 2 m³ | 7060 mm | 1500 mm | 2009 mm | 84 kw | Diesel Engine | down |
| FKWJ-3 | 7000 kg | 3 m³ | 9350 mm | 2150 mm | 2252 mm | 165 kw | Diesel Engine | down |
| FKWJ-4 | 8000 kg | 4 m³ | 9400 mm | 2500 mm | 2300 mm | 170 kw | Diesel Engine | down |
| FKWJ-6 | 14000 kg | 6 m³ | 10502 mm | 2864mm | 2545mm | 256 kw | Diesel Engine | down |
| FKWJ-0.6E | 1200 kg | 0.6 m³ | 4960 mm | 1150 mm | 1760 mm | 30 kw | Electric Motor | down |
| FKWJ-1E | 2000 kg | 1 m³ | 5710 mm | 1300 mm | 1920 mm | 45 kw | Electric Motor | down |
| FKWJ-2E | 4000 kg | 2 m³ | 7130 mm | 1840 mm | 1964 mm | 75 kw | Electric Motor | down |
| FKWJ-3E | 6000 kg | 3 m³ | 8600 mm | 2160 mm | 2760 mm | 90 kw | Electric Motor | down |
