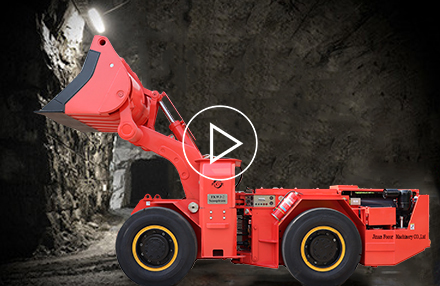

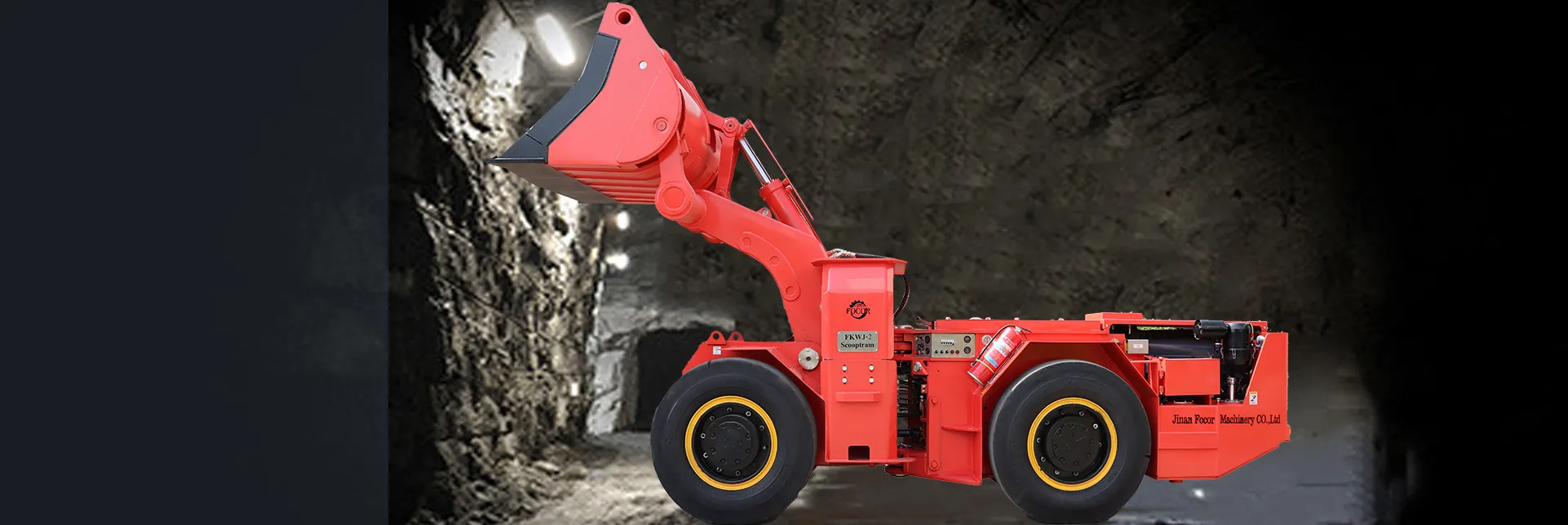

FKWJ-2 Underground Diesel Loader

FKWJ-2 Scooptram is mainly used in underground mine, mainly to shovel and transport loose materials after blasting. The FKWJ-2 scooptram is a 4 ton underground loader built for low-seam applications.
Contact Us

FKWJ-2 Underground Mining Diesel Loader

FKWJ-2 Scooptram is mainly used in underground mine, mainly to shovel and transport loose materials after blasting. The FKWJ-2 scooptram is a 4 ton underground loader built for low-seam applications. Efficient and powerful Germany DEUTZ F6L914 engine, which delivers maximum tramming and loading performance in the most demanding mining applications.  Unmatched strength when digging, pedaling and traversing steep grades, coupled with increased torque that effectively matches drivetrain shift points for maximum efficiency and fast cycle times. Excellent powertrain efficiency thanks to a high-capacity torque converter that delivers more power to the wheels.Complete system integration of the engine and transmission to ensure fuel efficiency and smooth operation.Large window openings improve visibility, and large handles on either side provide three-point access to the cab and machine. The operator presence system protects the machine and the operator from uncontrolled machine motion.

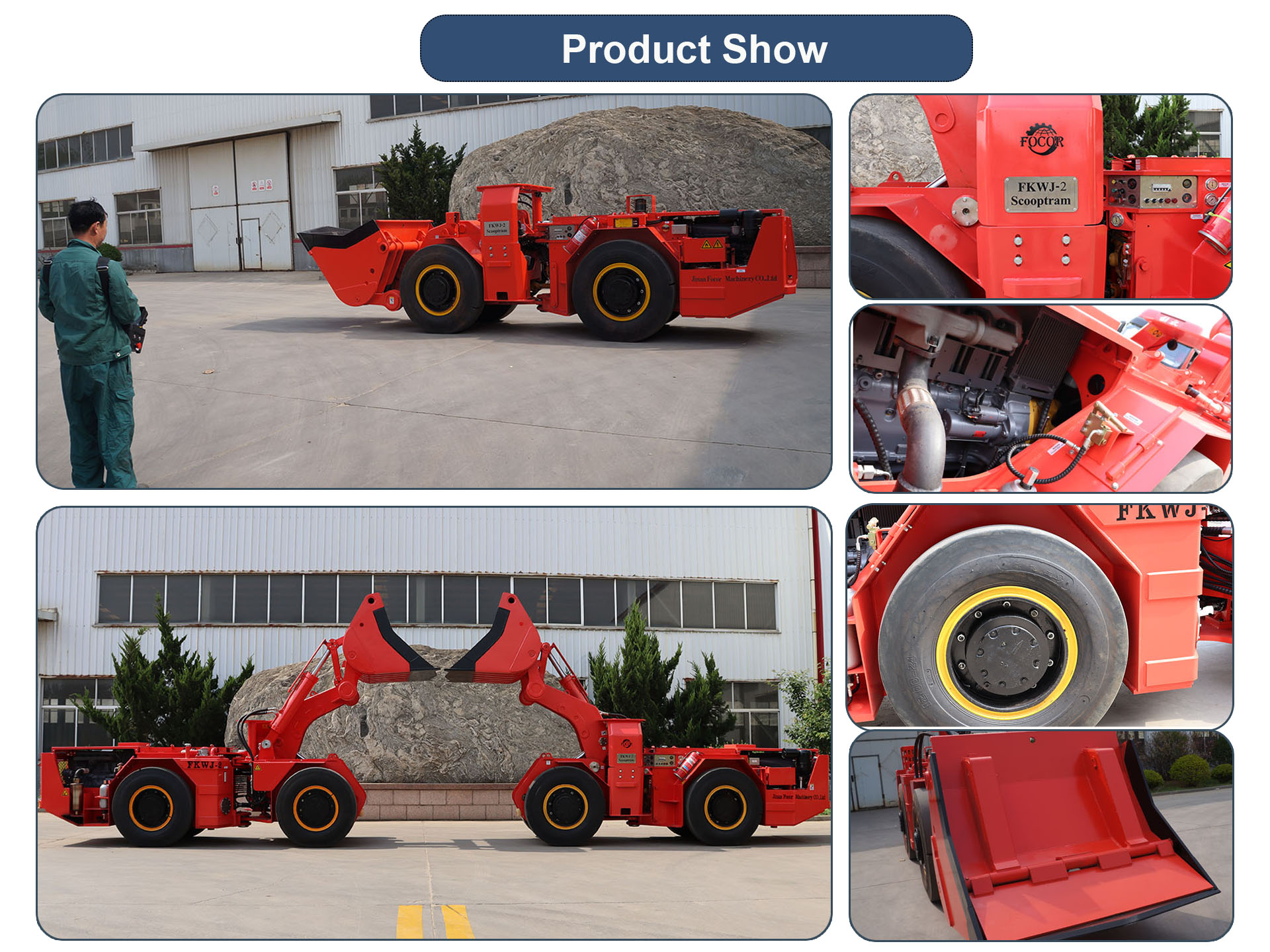

FKWJ-2 Scooptram Specific Description

The FKWJ-2 scooptram provides superior hydraulic power to quickly fill buckets. Drivetrain power enables high speed punching and increased productivity. The FKWJ-2 has many features that can help mines maximize tonnage and reduce mining costs. The machine's width, length and turning radius are optimized to work in narrower tunnels, reducing dilution and lowering operating costs.


The underground loader's powertrain is tuned specifically for speed to control harsh ground conditions and deliver maximum production across all speed ranges. It has the strength and durability needed to work in harsh conditions, but its precise control and efficient operation set it apart. It offers excellent stability, excellent digging and lifting, and various efficiency-enhancing features, plus a transmission that delivers constant power.

Advantage

1. Low cost per ton, extended component life and robust construction ;

2. The overall body design conforms to ergonomics, bringing the best comfort to the driver ;

3. This state-of-the-art hydraulic system features an on-demand piston pump for increased durability, higher pressure and overall system efficiency, and provides the operator with full system pressure when the engine is idling.


FKWJ-2


General Parameter
Loader Weight & Capacity
 Rated capacity  4000 kgScooptram weight 8000 kg
 Length 7060 mmLoad weight  14000 kg
 Width  1500 mmTraveling performance
 Height(cabin)   2009 mm1 shift forward/backward5 km/h
 Bucket volume 3 m³2 shift forward/backward 11 km/h
 Discharging height 3099 mm3 shift forward/backward 19 km/h
 Discharging angle 62°4 shift forward/backward 20 km/h
 Bucket lifting time 7 SGrade ability15%  (load)
 Bucket down time 6 SMax. Traction  120 KN
Wheelbase 3472 mmMax. Shovel 100 KN
 Min. Ground clearance 255 mmDiesel Engine
 Min. Turning radiusinner  3842.5 mmBrandGermany DEUTZ
 Min. Turning radius  Outer 5649.8 mmModelF6L914
Torque ConverterTypeAir cooling
Brand American DANARated Power84KW/2300rpm
Model  1201T20321Remarks Original Germany Deutz Brand
Type Integral, mechanical shift
Optional brandCUMMINS QSB6.7/97KW
Shift TransmissionAxle
Brand American DANABrandMeitong
Model1201T20321Model QY-150
Shift Integral, mechanical shiftType

Rigid planetary transmission axle

with NON-SPIN & anti-slip differential

Driver CabinBucket
 Reinforced with 6mm steel panel YESMaterialManganese steel
 Side-seat layout with good vision
YESEjector Bucket For optional
 Closed Cabin with air conditionerFor optionalFire system
Lubrication systemManual Fire extinguisher YES
Manual lubrication YESCentralized Fire extinguisher For optional
Centralized lubricationFor optional

Control system

Manual control
YES

Remotor control For optional




1

Main parts are imported top brand, like Deutz Engine, DANA torque converter, transmission, Parker pump and valves etc.;

2

Braking System consisted of Working brake and Stop brake, with Fully enclosed and Multi-disc wet hydraulic brake, Stop brake with spring brake;

3

Tailor made size and optional parts for customers to choose: remote control, Centralized lubrication system, ejector bucket etc.

 Scooptram

FKWJ-2 Underground Diesel Loader

Download


PRODUCTPAYLOAD  BUCKET LENGTH
WIDTHHEIGHT POWERTYPESPEC SHEET
FKWJ-0.6
1200 kg0.6 m³4910 mm1150 mm1825 mm58 kw

Diesel Engine

down
FKWJ-12000 kg1 m³5700 mm1300 mm1920 mm
58 kwDiesel Enginedown
FKWJ-24000 kg7060 mm1500 mm2009 mm84 kwDiesel Enginedown
FKWJ-37000 kg3 m³9350 mm2150 mm2252 mm165 kw
Diesel Enginedown
FKWJ-48000 kg4 m³9400 mm2500 mm2300 mm170 kwDiesel Enginedown
FKWJ-614000 kg10502 mm2864mm2545mm 256 kwDiesel Enginedown
FKWJ-0.6E1200 kg0.6 m³4960 mm1150 mm1760 mm30 kwElectric Motordown
FKWJ-1E2000 kg1 m³5710 mm1300 mm1920 mm45 kwElectric Motordown
FKWJ-2E4000 kg2 m³7130 mm1840 mm1964 mm75 kwElectric Motordown
FKWJ-3E6000 kg3 m³8600 mm2160 mm2760 mm90 kwElectric Motordown
