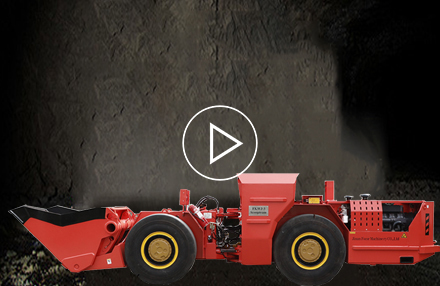

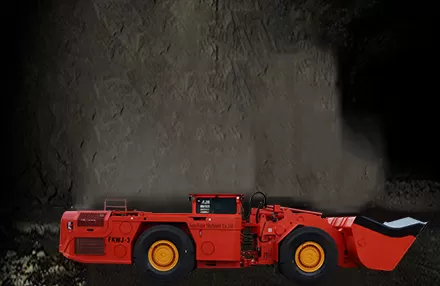

The FKWJ-3 underground diesel loader is a new compact light-duty 7-ton rated capacity (LHD) designed for medium-sized mining applications. The comfortable and safe cab equipped with automatic forward and reverse cameras as standard in the car provides drivers with good driving functions. Best payload to deadweight ratio in its class. It reduces dilution, improves dexterity and operator safety when working in vein work.
Germany DEUTZF6L912 engine, provides unmatched traction when digging, pedaling and traversing steep slopes.Torque rises to effectively match transmission shift points for maximum efficiency and fast cycle times.Torque converter lock-up clutch that combines maximum marginal pull when torque converter driven with the efficiency and performance of direct drive when the lock-up clutch is engaged.
Transmission Neutralizer, which allows the operator to engage service braking and neutralize the transmission, maintain high engine speed for full hydraulic flow, and improve digging and loading functions.
Operators can confidently drive above 5 km/h (3 mph) during load and carry operations thanks to the short cycle times of the optional Ride Control system. The productivity-enhancing hydraulic system provides superior digging and lifting forces at fast cycle times, along with high hydraulic flow for quick response and powerful lifting forces.
Standard operator presence system, which protects the machine and the operator from uncontrolled machine movements, hydraulic neutralization and door sensors. The large window openings offer a good view. Safer entry and exit with non-slip upper deck surface and three-point access to cab and machine. Four-corner oil-cooled brake system, providing excellent control, the working brake system is hydraulically operated, the parking brake function, applied spring and hydraulic release to ensure braking in the event of a hydraulic failure.
FKWJ-3 underground diesel loader is versatile, sturdy and reliable. Not only for hard rock applications, but also for operations in tunnels and soft rock applications.
1.Advanced cabin ergonomics for operator comfort
2.low total cost of ownership
3.Designed for long component life. Rugged steel frame, mining grade components, heavy-duty all-mechanical powertrain, severe-duty electrical system and collet-style pins.
|General Parameter||Loader Weight & Capacity|
|Rated capacity||7000 kg||Scooptram weight||19740 kg|
|Length(bucket down)||9350 mm||Load weight||25740 kg|
|Length(bucket up)||8780 mm||Traveling performance|
|Width(bucket)||2150 mm||1 shift forward/backward||4.2 km/h|
|Width(frame)||2150 mm||2 shift forward/backward||8.5 km/h|
|Height(cabin)||2252 mm||3 shift forward/backward||14.5 km/h|
|Bucket volume||3.5 m³ (4.5 yd)||4 shift forward/backward||20 km/h|
|Lifting height||4800 mm||Grade ability||12% (load)|
|Discharging height||1886 mm||Max. Traction||85 KN|
|Discharging angle||32°||Max. Shovel||70 KN|
|Min. Ground clearance||352 mm||Diesel Engine|
|Departure angle||15°||Brand||Germany DEUTZ|
|Steering angle||left/right 40°||Model||F6L912|
|Rear axle swing||±10°||Type||Air cooling|
|Min. Turning radius||inner 3200 mm||Rated Power||165 KW/2300 rpm|
|Min. Turning radius||Outer 5760 mm||Rated Torque||243 Nm/2300 rpm|
|Min. Turning radius||Outer 4729 mm||Max. Torque||275 Nm/2300 rpm|
|Torque Converter||Remarks||Original Germany|
|Brand||American DANA||Shift Transmission|
|Type||Single stage two components|
with hydraulic pump drive
|Axle||Shift|| Power shift (4 shifts) forward+backward|
with Emergency brake
|Brand DANA||16D||Driver Cabin|
|Optional KESSLER||D91||Reinforced with 6mm steel panel||YES|
|Bucket|| Side-seat layout with |
|Material||Manganese steel|| Closed Cabin with air|
|Ejector Bucket||For optional||Control system|
|Lubrication system||Manual control||YES|
|Manual lubrication||YES||Video remote control systeml||For optional|
|Centralized lubrication||For optional||Fire system|
|Manual Fire extinguisher||YES|
|Centralized Fire extinguisher||For optional|
Operator's cab in rear frame improves operator safety and ergonomics ;
Main parts are imported top brand, like Deutz or Cummins Engine, DANA torque converter, transmission, axle Parker pump and valves etc ;
Tailor made size and optional parts for customers to choose: remote control, Centralized lubrication system, Closed Cabin with air conditioner, ejector bucket etc.

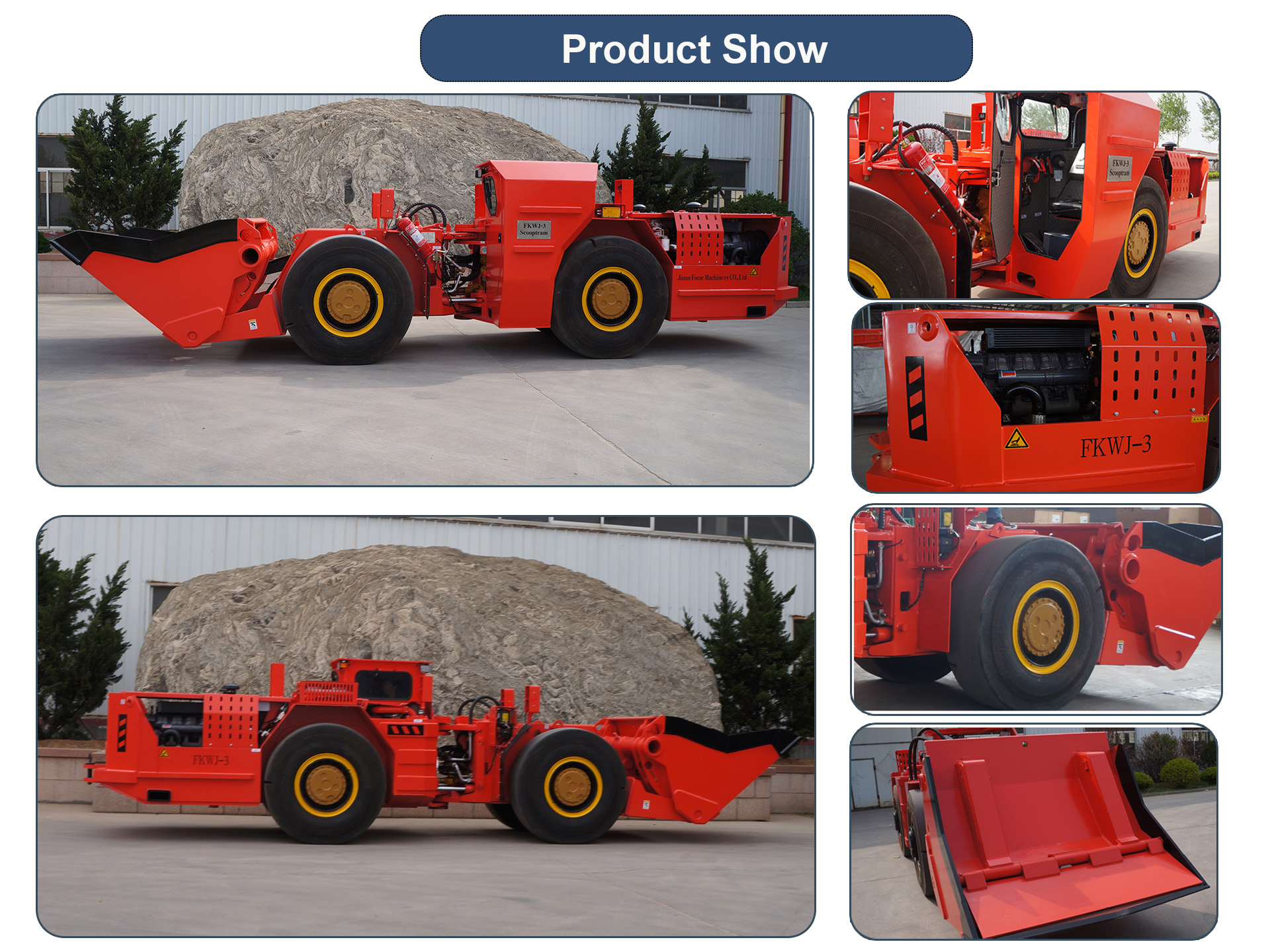

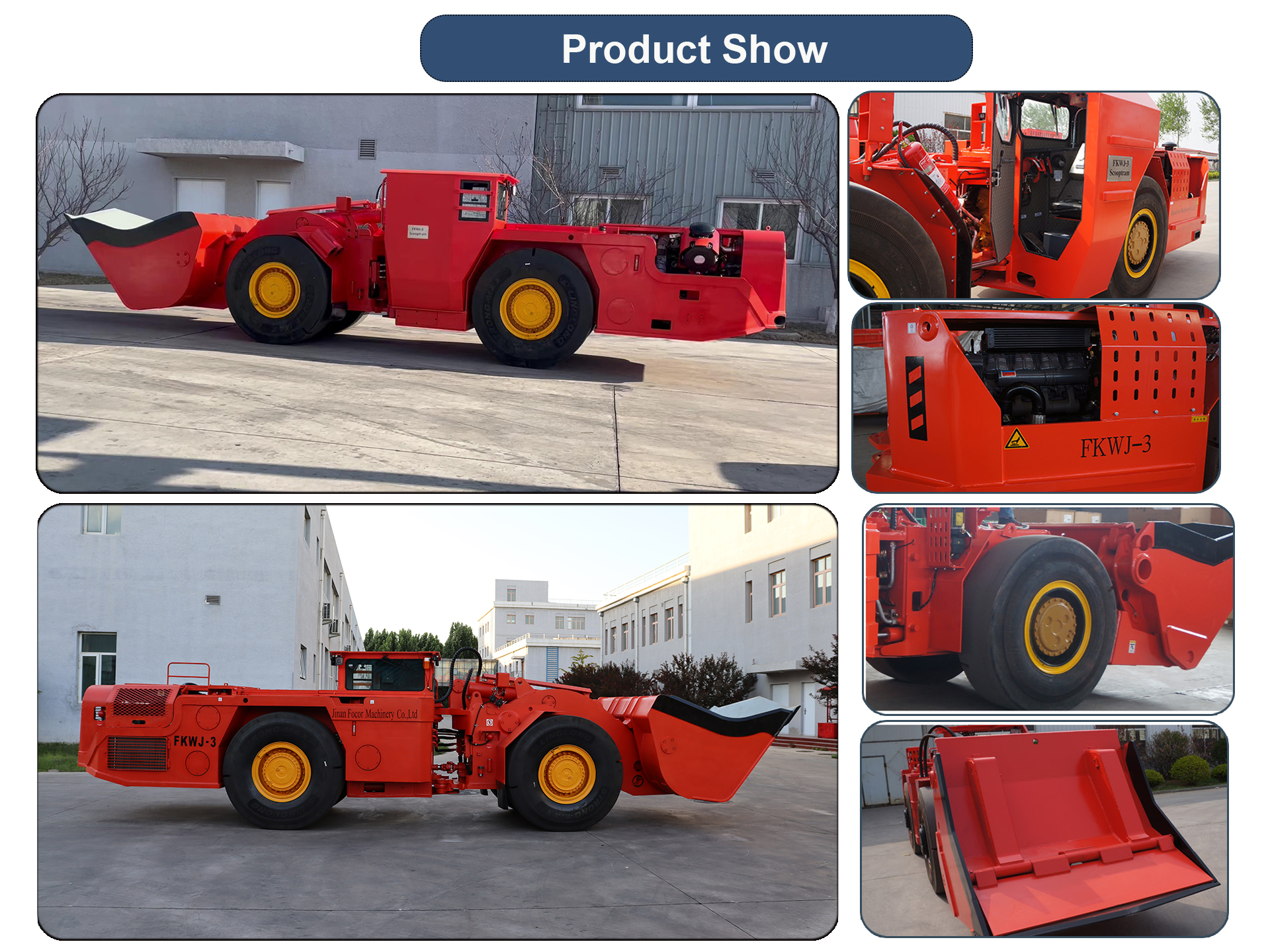

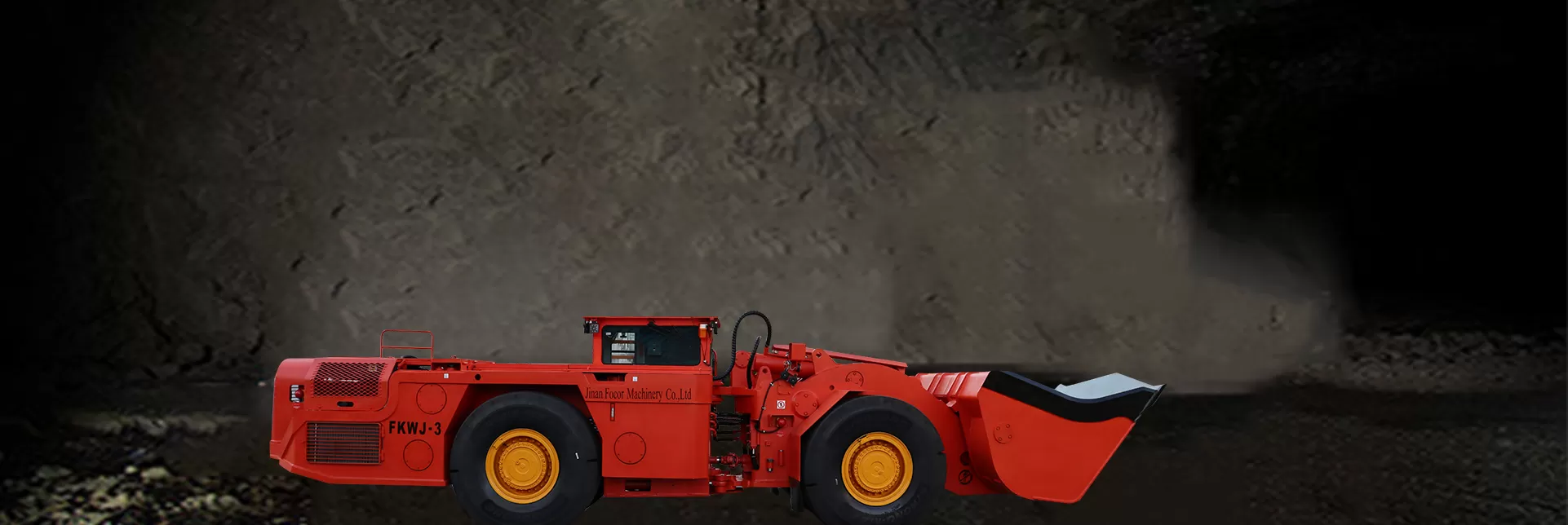

FKWJ-3 Underground Diesel Loader
|FKWJ-0.6||1200 kg||0.6 m³||4910 mm||1150 mm||1825 mm||58 kw|
|FKWJ-1||2000 kg||1 m³||5700 mm||1300 mm||1920 mm||58 kw||Diesel Engine||down|
|FKWJ-2||4000 kg||2 m³||7060 mm||1500 mm||2009 mm||84 kw||Diesel Engine||down|
|FKWJ-3||7000 kg||3 m³||9350 mm||2150 mm||2252 mm||165 kw||Diesel Engine||down|
|FKWJ-4||8000 kg||4 m³||9400 mm||2500 mm||2300 mm||170 kw||Diesel Engine||down|
|FKWJ-6||14000 kg||6 m³||10502 mm||2864mm||2545mm||256 kw||Diesel Engine||down|
|FKWJ-0.6E||1200 kg||0.6 m³||4960 mm||1150 mm||1760 mm||30 kw||Electric Motor||down|
|FKWJ-1E||2000 kg||1 m³||5710 mm||1300 mm||1920 mm||45 kw||Electric Motor||down|
|FKWJ-2E||4000 kg||2 m³||7130 mm||1840 mm||1964 mm||75 kw||Electric Motor||down|
|FKWJ-3E||6000 kg||3 m³||8600 mm||2160 mm||2760 mm||90 kw||Electric Motor||down|
