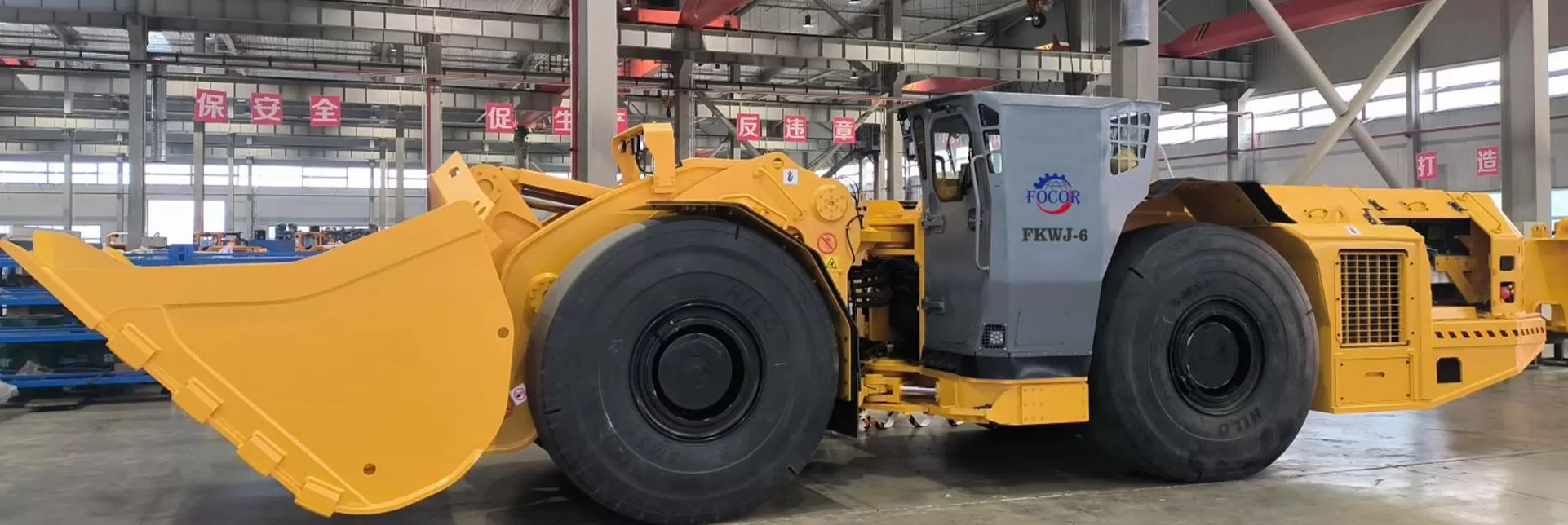

FKWJ-6 Underground Diesel Loader

The FKWJ-6 scooptram is a 4 ton underground loader built for low-seam applications. Efficient and powerful VOLVO 256kW engine, which delivers maximum tramming and loading performance in the most demanding mining applications.
Contact Us

FKWJ-6 Underground Mining Loader

The FKWJ-6 scooptram is a 4 ton underground loader built for low-seam applications. Efficient and powerful VOLVO  256kW engine, which delivers maximum tramming and loading performance in the most demanding mining applications. Complete system integration of the engine and transmission to ensure fuel efficiency and smooth operation. Large window openings improve visibility, and large handles on either side provide three-point access to the cab and machine. The operator presence system protects the machine and the operator from uncontrolled machine motion.

FKWJ-6 Underground Loader has a powertrain tuned specifically for speed on grade mastering poor floor conditions and delivering maximum production in all speed ranges. It has the necessary strength and durability to work in tough conditions, but its precise controls and efficient operation set it apart. It offers superior stability, exceptional digging and lifting, and a variety of efficiency-boosting functions, plus a transmission that delivers constant power.

Hydraulic system that provides significantly more breakout force during digging, and that gives the machine faster dumping times at the other end of the cycle. Repositioned front linkage cylinders for better mechanical lift.

FKWJ-6 Scooptram Specific Description

Features that deliver excellent responsiveness, such as Auto Dig, which automates loading of the bucket; and pilot-controlled steering system to provide more acute feel in tight spaces.Hydraulically actuated auto retarding, which improves cycle times as operators gain confidence and become more comfortable on downhill grades at faster speeds.

High hydraulic flow rates that provide fast hydraulic and cylinder response and powerful lift forces, plus large-bore tilt and lift cylinders that deliver exceptional strength, performance and durability.

Proven Z-bar loader linkage geometry, which generates powerful breakout force and an increased rack back angle for better bucket loading and material retention.

Optional ride control system that reduces fore and aft pitch of the lift arm and bucket, giving operators confidence to travel at speeds above 5 km/h (3 mph) during load and carry operations for fast cycle times.

In a drive to constantly comply to stringent engine emission standards the entire GHH loader offering has a significant amount of products available in Tier 3, Tier 4 final and Stage V packages to support industy drive towards environmental and operator friendly working environments.

Unmatched strength when digging, pedaling and traversing steep grades, coupled with increased torque that effectively matches drivetrain shift points for maximum efficiency and fast cycle times. Excellent powertrain efficiency thanks to a high-capacity torque converter that delivers more power to the wheels.


1.Ergonomic canopy and side seats provide good two-way view operation.

2.Enhanced boom and load frame geometry optimize digging performance

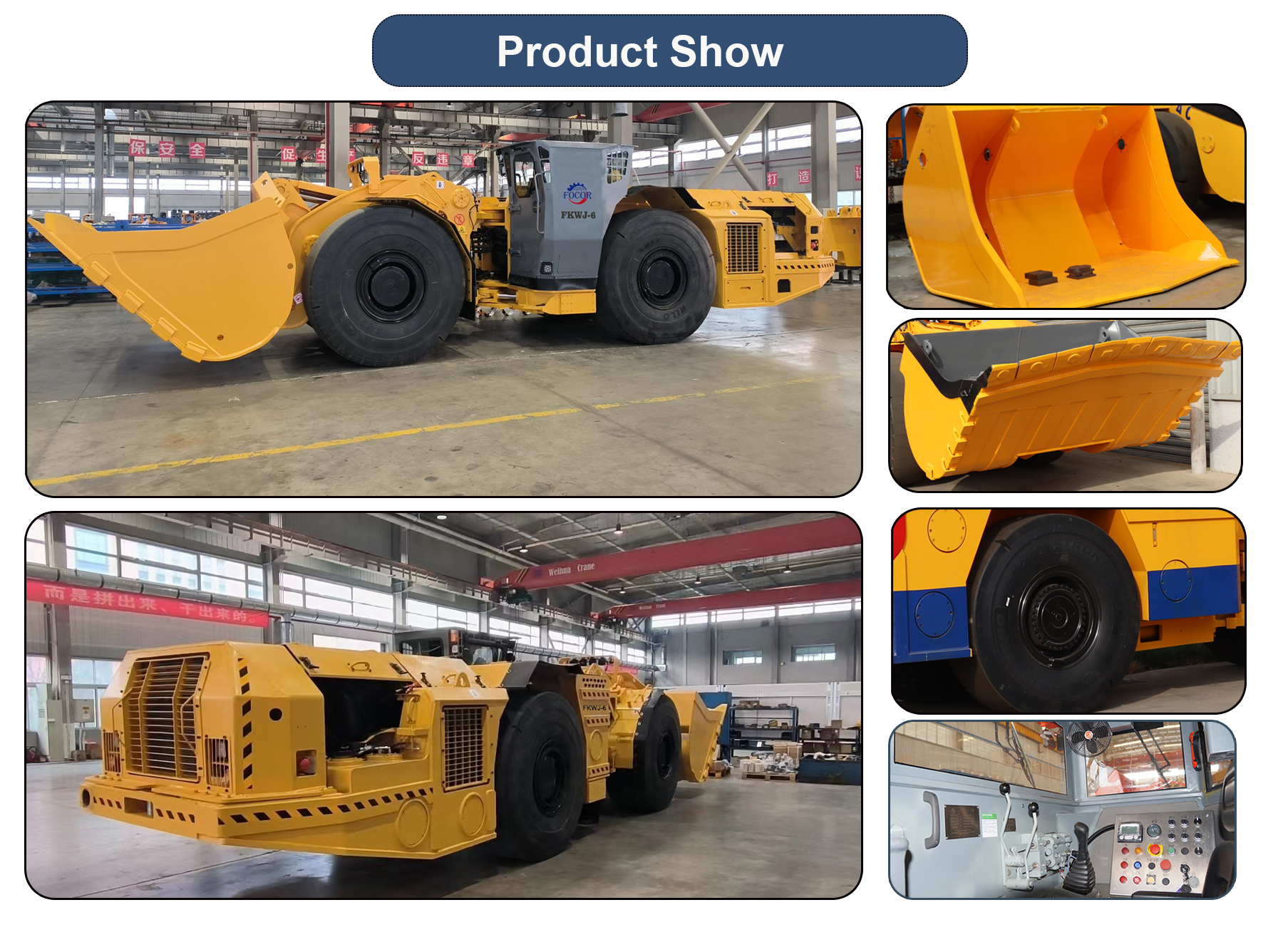

Details Show


General ParameterWeight
 Rated capacity 14000 kgOperating weight 39000 kg
 Length10510 mmFully loaded53000 kg
Width(Include bucket)2799 mmTramming Capacities
Height(with Canopy)2550 mm1 shift forward/backward4.6 km/h
Ground clearance400 mm2 shift forward/backward 7.9 km/h
Bucket Capacity6 m³3 shift forward/backward 13.5 km/h
Dump angle 39°4 shift forward/backward 22.9 km/h
Max. dumping heigh2513 mmGrade ability1st gear  3.1 km/h at 25%
Dumping distance159mmDiesel Engine
Max. tractive effort26kNBrandVOLVO
Max. tipping load24kNTypeTAD1352
Breakout force (Mechanical)23kNDesignWater-cooled diesel engine
Breakout force(Hydraulic)23kNMax. power315kW/1900rpm
Oscillating angle of rear frame±8°Max. torque2175Nm/1260rpm
Departure angle14°Air intake systemDONALDSON dry air filter
Torque ConverterExhaust systemDOC exhaust gas catalyst/silencer
Brand American DANAStarter, power/voltage6.0kw/24 V
TypeC8000Alternator, voltage/ampere24V/150 A

Single  stage  industrial  type  with

 auxiliary  drives  for  steering  and

dump/host hydraulic system

Exhaust quality MeetsMeets U.S. EPA Tier 3 and U Stage Ⅲ A
Front AxlePower Shift Transmission
ManufacturerKESSLERBrand American DANA
TypeD106Type6000 Series

Rigid planetary axles with POSI-TORQ



Power shift transmission with

 4 forward and 4 reverse gears

Rear AxleBrakes
ManufacturerKESSLERDesignSpring applied hydraulic release.
Fully enclosed, force cooled multiple
Wet discs at each wheel end.
TypeD102Brake system designSet service, parking and emergency
Brake in one

Rigid planetary axles with

 POSI-TORQ differential

Service brake accumulator pressure12.0-15.5 MPa
Wheels& TiresSteering
Size26.5-R25 TLTypeLeft electric control handle control
Tire filling pressure7.0±0.2 barDesignSwivel-joint hydraulic power steering
 Hydraulic SystemSteering angle42.5°
Pump delivery flow rate270 L/minInner clearance circle3320±200 mm
System pressure29.5 MPaOuter Clearance circle6840±250 mm
Number of dump hydraulic cylinders1Electrical Equipment
Number of hoist hydraulic cylinders2Operating voltage24V
Lifting time<7.5 sBatteries2×12V/180Ah
Lowering time<4.5 sLighting System
Dumping time<2.9 sMain headlights4×27 W
Steering Hydraulic SystemReversing headlights4×27 W
Pump delivery flow rate120 L/minReverse alarming112 dB
System pressure19 MPaBeacon light1
Number of steering cylinders2Safety Features
Optional ConfigurationsCanopySAE heavy duty tubular canopy ROPS/FOPS
Manual centralized lubrication systemOptionalFire suppressionPortable manual fire extinguisher
Auto centralized lubrication systemOptionalMachine start-upMachine start on transmission neutral position
Horizon remote control system OptionalServicing

Boom lock mechanism when servicing machine

 with boom raised

Video remote control systemOptionalParking brakeBrake automaticity when Engine turn off
Filling VolumesDoor limit switch

Parking brake works and not allow to start Engine

on if the door open

Fuel tank 500 LAudible alarmReverse alarming
Hydraulic tank 235 L Operator Cabin
Brakes coolant72 LOperator AreaSide seating, with easy access to all controls
Diesel engine oil pan 36 LOperator SeatSpring cushioned seat. Adjustable
Horizontal distance from control
Panel and vertical height from
Operator’s cabin floor
Engine coolant38 LMeters/gauges7.8 inch LCD
Torque converter/power shift45 LJoystick operating force≤120 N
Front axle differential gear 36 LPedal operating force≤350N
Front axle planetary gear2×6.5 LOperating noise≤90dB(A)
Rear axle differential gear 36 L

Rear axle planetary gear2×6.5 L


ROPS/FOPS cabin or canopy with ergonomic controls, clear visibility and automatic fail-safe features. By focusing on safety and operator comfort, we reduce risk and maximize uptime.


Maximum productivity : With the FKWJ-1.5 Scooptram's high lift capacity, load-sensing hydraulics, traction control and intelligent rig control, you can achieve more tons of load per hour.


High ramp speeds, fast bucket fill and high lift for best-in-class production performance .


1200 kg0.6 m³4910 mm1150 mm1825 mm58 kw

Diesel Engine

FKWJ-12000 kg1 m³5700 mm1300 mm1920 mm
58 kwDiesel Enginedown
FKWJ-24000 kg7060 mm1500 mm2009 mm84 kwDiesel Enginedown
FKWJ-37000 kg3 m³9350 mm2150 mm2252 mm165 kw
Diesel Enginedown
FKWJ-48000 kg4 m³9400 mm2500 mm2300 mm170 kwDiesel Enginedown
FKWJ-614000 kg10502 mm2864mm2545mm 256 kwDiesel Enginedown
FKWJ-0.6E1200 kg0.6 m³4960 mm1150 mm1760 mm30 kwElectric Motordown
FKWJ-1E2000 kg1 m³5710 mm1300 mm1920 mm45 kwElectric Motordown
FKWJ-2E4000 kg2 m³7130 mm1840 mm1964 mm75 kwElectric Motordown
FKWJ-3E6000 kg3 m³8600 mm2160 mm2760 mm90 kwElectric Motordown
