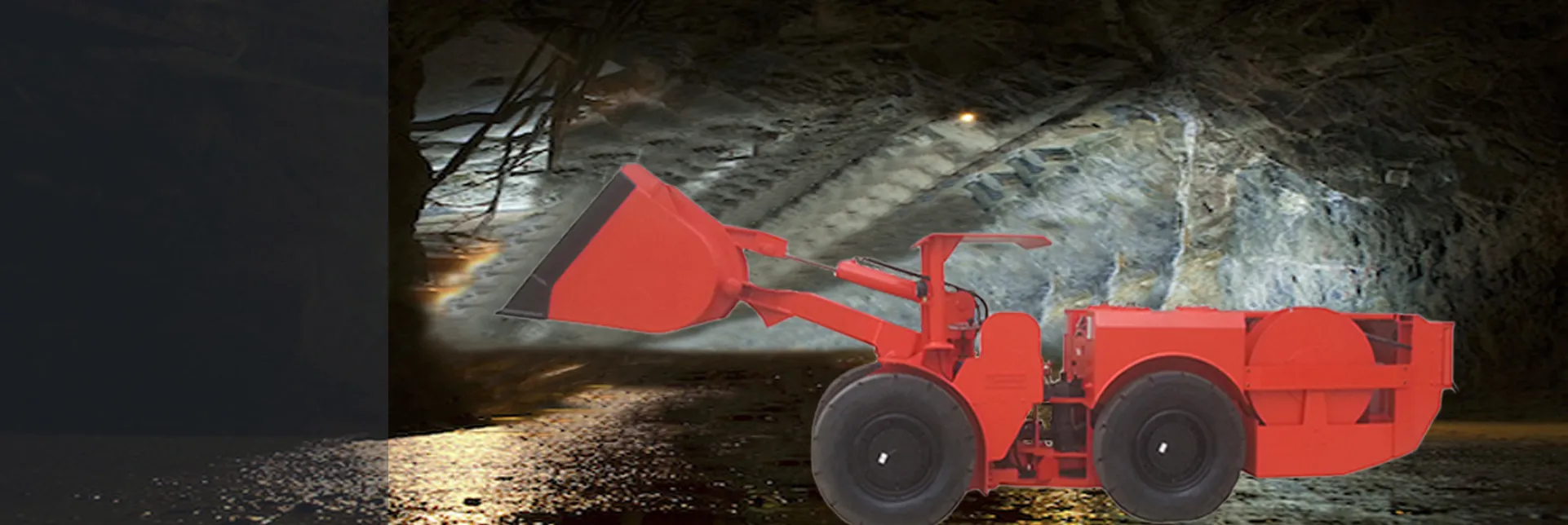

The Underground Electric loader is the result of research on our most popular underground loader. It is an efficient, powerful and reliable machine designed to meet the needs of the underground mining industry for greater payloads, faster loading and reduced emissions. The use of electric drive components can reduce fuel consumption and increase productivity. The biggest benefit is that electric scrapers are more cost-effective.
The rated loading capacity of FKWJ-0.6E underground electric loader is 1.2 tons. The hydraulic pump of FKWJ-0.6E underground electric loader is Rexroth A4VG. The hydraulic motor configuration is Rexroth A2FM. The accessories of all our equipment are international famous brands. Equipped with an energy-efficient electric motor, the jumbo loader offers low cost per ton loaded. The electric motor has no exhaust emissions, generates less heat and is less noisy, helping to improve underground working conditions and helping reduce mine ventilation costs. The bucket design of FKWJ-0.6E undergound electric loader has higher strength and simplifies the convenience of maintenance. Wear bars can be replaced more easily, and the bucket design transfers stress to areas where wear pads are easily replaced, reducing the need for welded repairs. Welded, bolted, or hammer less Ground Engaging Tools (GETs) to meet site-specific needs and site maintenance strategies. Bolt-On Half-Arrow (BOHA) GETs for bucket edges offer more wear-resistant material than standard welded GETs and feature a bolt-on design for quick and easy removal and replacement.The cab of FKWJ-0.6E underground electric loader provides the operator with unparalleled space and spacious layout. The loader's spacious cab features a unique seating arrangement.
In narrow vein work, it reduces dilution, improves flexibility and operator safety. Easy to operate and maintain, and it has an operator's compartment located on the rear frame of the machine to ensure increased operator safety.FKWJ-0.6E underground electric scraper is mainly used for scraping underground mines, transporting ore and gravel after blasting, and can also be used for railway, highway and tunnel construction projects, especially for harsh working conditions, narrow working sites, and Low and muddy.
1. Ergonomics Canopy with side seat to provide good bi-directional view of operation.
2. An enhanced boom and load frame geometry optimizes digging performance.
|General Parameter||Electric motor|
|Rated capacity||1200 kg||Brand||Huali|
|Bucket volume||0.6 m³||Model||HM2|
|Discharging height||1150 ± 100 mm||Rated power||30 KW|
|Wheelbase||1850 mm||Rotation speed||1480 r/min|
|Min. Ground clearance||190 mm||Hydraulic Pump|
|Steering angle||left/right 38°||Model||A4VG|
|Rear axle swing||±6° — ±8°||Hydraulic Motor|
|Min. Turning radius||inner 3650 ± 100 mm||Brand||Rexroth|
|Min. Turning radius||2650 ± 100 mm||Model||A2FM|
|Traveling Performance||Gear pump|
|Grade ability||20% (load)||Model||P124|
|Max. Traction||38 KN||Transfer Case|
|Max. Shovel||45 KN||Reduction ratio||2.643|
Fixed axis helical
|Control system||Material||Manganese steel|
|Manual control||YES||Ejector Bucket||For optional|
Protection class IP55, high protection will prolong the service life.Use high-quality grease to prolong the life of the bearing .Supply big power and stable performance.
Sauer PV series piston pump and MV seriespiston motor, supply stable hydraulic powerand long service life;Optional Brand:Rexroth A4VG series pumpand 90M series piston motor.
Hydraulic motor driving with good performance;Famous brand cable prolong the service life.

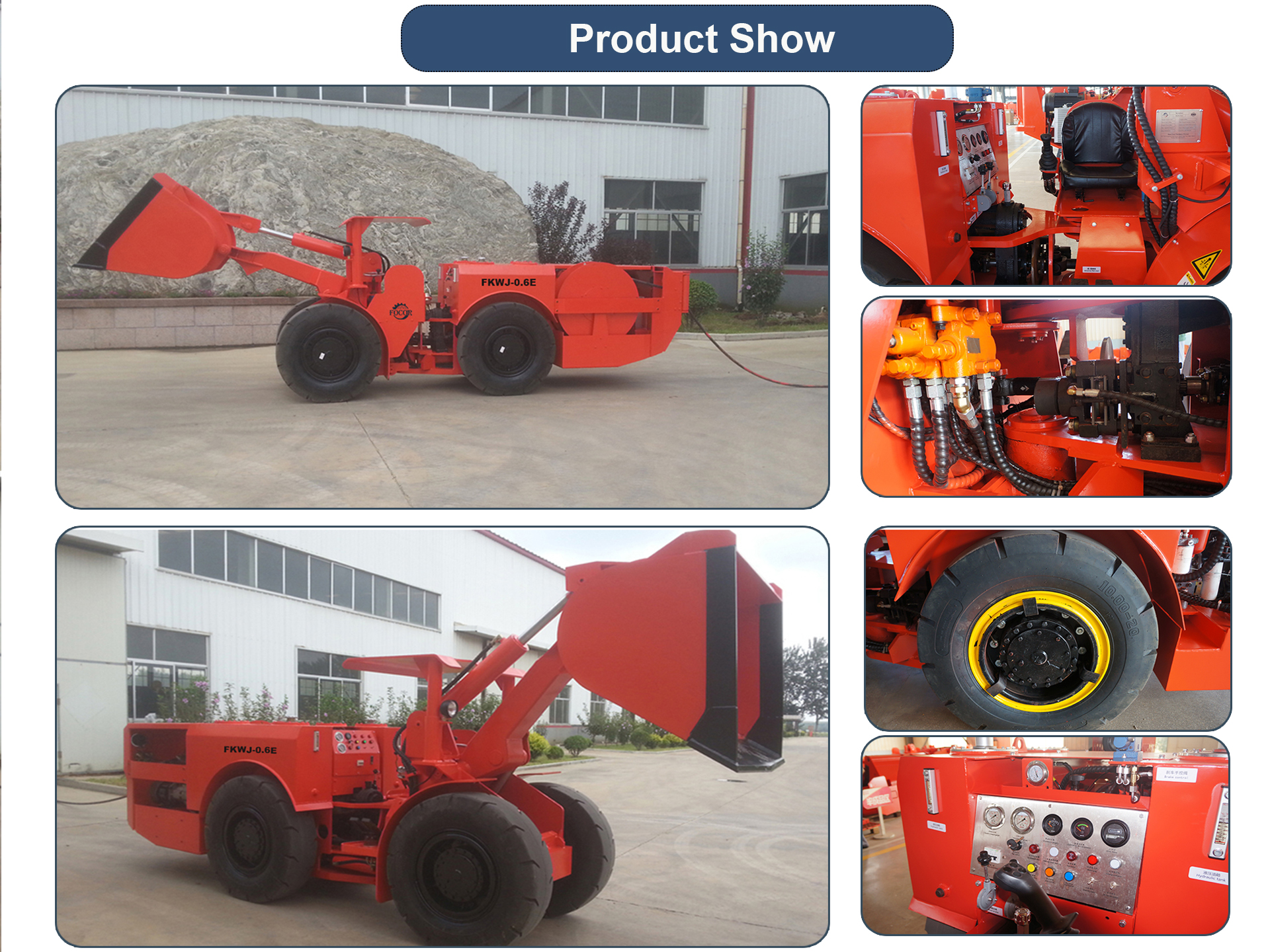

FKWJ-0.6E Underground Electric Loader
|FKWJ-0.6||1200 kg||0.6 m³||4910 mm||1150 mm||1825 mm||58 kw|
|FKWJ-1||2000 kg||1 m³||5700 mm||1300 mm||1920 mm||58 kw||Diesel Engine||down|
|FKWJ-2||4000 kg||2 m³||7060 mm||1500 mm||2009 mm||84 kw||Diesel Engine||down|
|FKWJ-3||7000 kg||3 m³||9350 mm||2150 mm||2252 mm||165 kw||Diesel Engine||down|
|FKWJ-4||8000 kg||4 m³||9400 mm||2500 mm||2300 mm||170 kw||Diesel Engine||down|
|FKWJ-6||14000 kg||6 m³||10502 mm||2864mm||2545mm||256 kw||Diesel Engine||down|
|FKWJ-0.6E||1200 kg||0.6 m³||4960 mm||1150 mm||1760 mm||30 kw||Electric Motor||down|
|FKWJ-1E||2000 kg||1 m³||5710 mm||1300 mm||1920 mm||45 kw||Electric Motor||down|
|FKWJ-2E||4000 kg||2 m³||7130 mm||1840 mm||1964 mm||75 kw||Electric Motor||down|
|FKWJ-3E||6000 kg||3 m³||8600 mm||2160 mm||2760 mm||90 kw||Electric Motor||down|
