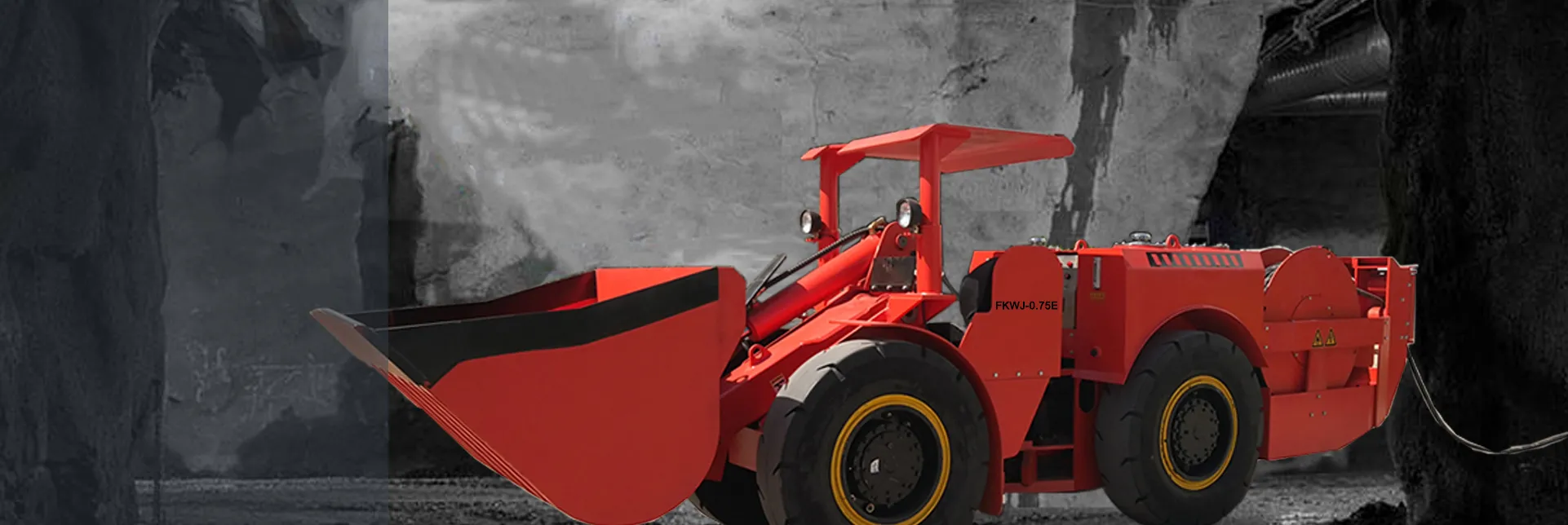

OverviewFKWJ-0.75E underground electric loader is mainly used for underground mine shoveling, transportation of ore and rubble after the bursting and is also used in railway, highway, and tunnel construction project especially those places such as bad working conditions, narrow, work site, low and muddy work site.
By eliminating castings and reducing weight, we increase the life and strength of the frame without sacrificing performance.The FKWJ-0.75E underground electric loader features a new axle design for longer life, improved availability and many maintainability features and improvements.New, larger wheel bearings feature optimized positioning and flange-mounted rims for longer life and easier serviceability. Four-planet final drives with larger gear sets. An updated brake design provides greater capacity, a remotely mounted brake bleeder, easier serviceability and longer brake life.Traction control reduces tire slip, extending tire life and reducing consumable costs.
The hydraulic pump of FKWJ-0.6E underground electric loader is sauer pv22. The hydraulic motor is equipped with sauer mv22. The accessories of all our equipment are international famous brands. Electric drive systems have fewer moving parts and parts than traditional torque converters and mechanical transmissions, extending maintenance intervals compared to mechanical transmissions.Operator's cab
Side seated operator position for efficient bi-directional operation with maximum visibility; Ergonomic operator seat with seat belt for comfort during a full operating shift. Protection class IP55, high protection will prolong the service life. Use high-quality grease to prolong the life of the bearing.Supply big power and stable performance.
The power system is driven by 45KW electric motor, hydraulic control variable displacement pump, Quantitative motor, front and rear axle reducer and four wheel drive. Front and back fuselage use slewing bearing coupling oscillation. Working system adopts hydraulic control pilot operating system, making the scooptram operation more flexible, simple, efficient and low failure rate. Emergency parking brake uses a drive axle wet brake, spring brake, hydraulic lift brake, sudden power off brake, safe and reliable.
Advantage
1. Ergonomics Canopy with side seat to provide good bi-directional view of operation.
2. An enhanced boom and load frame geometry optimizes digging performance.

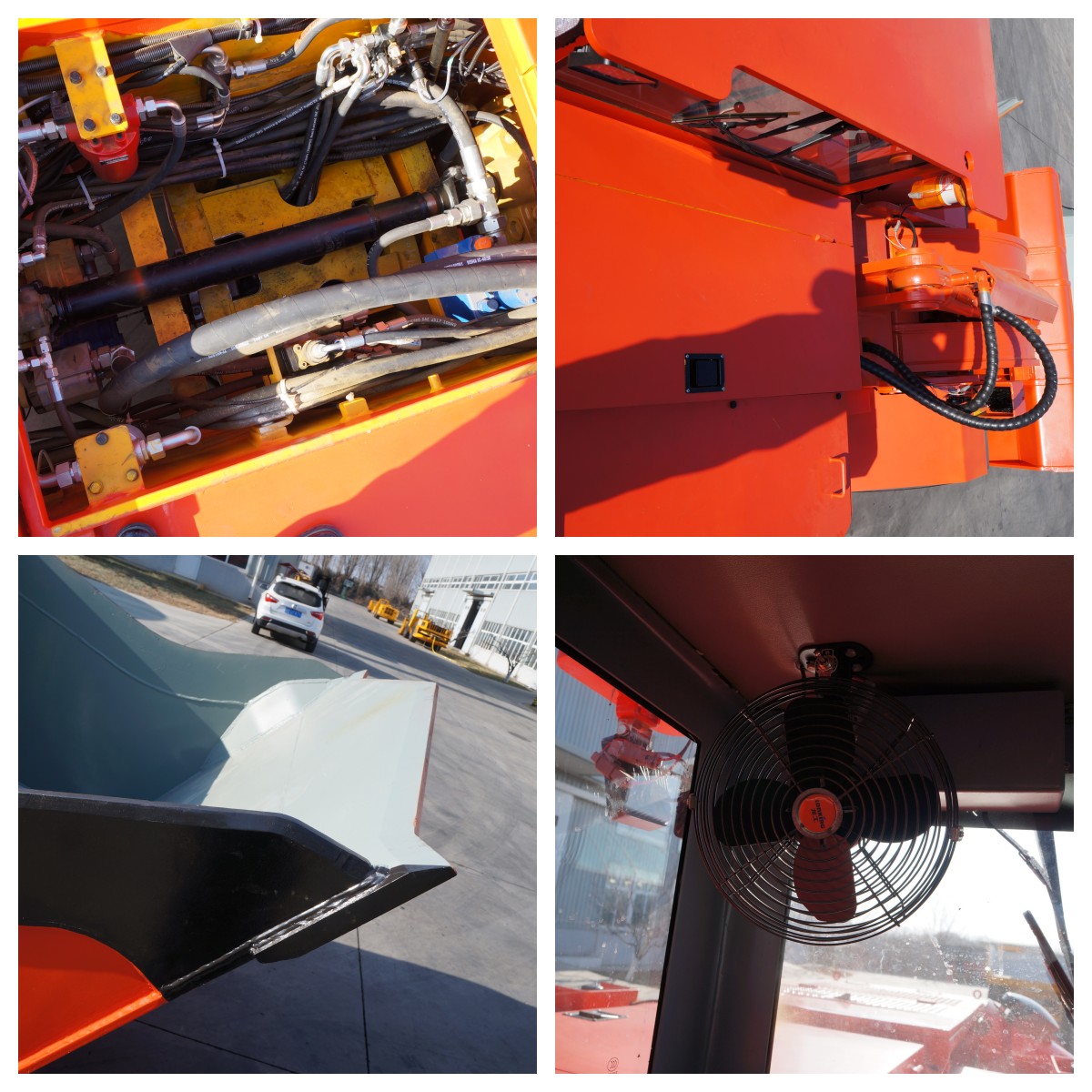

DETAILS SHOW
| General Parameter | Loader Weight and Load Capacity | |||
| Rated capacity | 1500 kg | Scooptram weight | 7000 kg | |
| Length | 5710 mm | Load weight | 8500 kg | |
| Width(bucket) | 1295 mm | Electric motor | ||
| Width(frame) | 1250 mm | Rated Power | 45 KW/1480 rpm | |
| Height(cabin) | 1920 mm | Power Voltage | 380 V/440 V, 50 HZ/60 HZ | |
| Bucket volume | 0.75 m³ | Control voltage | 24 V | |
| Discharging height | 1300 mm | Hydraulic Pump | ||
| Wheelbase | 1880 mm | Brand | SAUER | |
| Min. Ground clearance | 195mm | Model | PV22 | |
| Departure angle | 15° | Type | Fully reversible variable piston pump | |
| Steering angle | left/right 38° | Hydraulic Motor | ||
| Rear axle swing | ±6.5° | Brand | SAUER | |
| Min. Turning radius | inner 2240 mm | Model | MV22 | |
| Min. Turning radius | Outer 3890 mm | Type | Imported Variable piston motor | |
| Lubrication system | Bucket | |||
| Manual lubrication | YES | Material | Manganese steel | |
| Control system | Ejector Bucket | For optional | ||
| Manual control | YES | |||
Combination design of parking brake & working brake ensures good braking performance. Braking model is SAHR(spring applied, hydraulic release).
Front axle is equipped NO-SPIN differential. While rear is ANTI-SLIP.
Hydraulic joystick control for working to reduce the labor intensity of the driver.
Download
| PRODUCT | PAYLOAD | BUCKET | LENGTH | WIDTH | HEIGHT | POWER | TYPE | SPEC SHEET |
| FKWJ-0.6 | 1200 kg | 0.6 m³ | 4910 mm | 1150 mm | 1825 mm | 58 kw | Diesel Engine | down |
| FKWJ-1 | 2000 kg | 1 m³ | 5700 mm | 1300 mm | 1920 mm | 58 kw | Diesel Engine | down |
| FKWJ-2 | 4000 kg | 2 m³ | 7060 mm | 1500 mm | 2009 mm | 84 kw | Diesel Engine | down |
| FKWJ-3 | 7000 kg | 3 m³ | 9350 mm | 2150 mm | 2252 mm | 165 kw | Diesel Engine | down |
| FKWJ-4 | 8000 kg | 4 m³ | 9400 mm | 2500 mm | 2300 mm | 170 kw | Diesel Engine | down |
| FKWJ-6 | 14000 kg | 6 m³ | 10502 mm | 2864mm | 2545mm | 256 kw | Diesel Engine | down |
| FKWJ-0.6E | 1200 kg | 0.6 m³ | 4960 mm | 1150 mm | 1760 mm | 30 kw | Electric Motor | down |
| FKWJ-1E | 2000 kg | 1 m³ | 5710 mm | 1300 mm | 1920 mm | 45 kw | Electric Motor | down |
| FKWJ-2E | 4000 kg | 2 m³ | 7130 mm | 1840 mm | 1964 mm | 75 kw | Electric Motor | down |
| FKWJ-3E | 6000 kg | 3 m³ | 8600 mm | 2160 mm | 2760 mm | 90 kw | Electric Motor | down |
