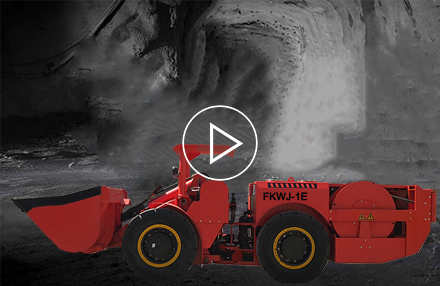

Focor's underground electric loaders feature zero diesel emissions and low noise, reducing ventilation needs and improving underground working conditions. Underground electric loaders combine compact design with reliability, high digging forces, responsive control and high haul speeds. High power-to-weight ratio ensures fast cycle times.
The rated capacity of our FKWJ-1E underground electric loader is 2 tons. The weight of our entire electric loader is tons, and our maximum loading capacity is 9 tons. Our bodies are all welded using welding techniques. The hydraulic pump is a fully reversible variable piston pump configured by Sauer pv22. Our hydraulic motor is a sauer mv22 imported Variable piston motor. Our hydraulic system comes with manual hydraulic pressure.
The bucket design of FKWJ-1E underground electric loader has higher strength and simplifies the convenience of maintenance. Wear bars can be replaced more easily, and the bucket design transfers stress to areas where wear pads are easily replaced, reducing the need for welded repairs.
It features significantly lower noise, vibration and heat levels than conventional diesel-powered underground loaders. It's a powerful pure power combination that delivers high digging forces, high travel speeds and increased acceleration. The loader's high capacity, unique bucket fill design and fast cycle times mean you can move more material faster at a lower cost per ton.This durable, high-capacity electric loader proves you can create a cleaner, quieter and safer underground work environment without sacrificing power and productivity.
It adopts an advanced three-point suspension system, which changes the arrangement of the swing axles of older models. It overcomes the disadvantages of high failure rate, maintenance problems, hidden dangers of swing axle and significantly reduces investment in manpower and material resources. A synchronous cable winding device was used, which made the tractor bucket more flexible when running.Suitable for mining and road debris, road and construction site construction, material transportation, etc.
High digging forces, high haul speeds and unique bucket fill allow you to move more material, faster. The compact shape and short turning radius make navigation easy.
1. High-efficiency electric drive: With no transmission or powertrain shock loads, it provides smoother directional changes and machine controllability with virtual gears. Automatic deceleration control maintains speed levels. The drive system prevents coasting in neutral and incorporates an anti-rollback feature for further operational safety
2. Comfortable and productive : The enclosed design of the cab provides fresh, pressurized, temperature-controlled air circulation and air conditioning, improving operator comfort and reducing fatigue. The ROPS/FOPS structure is resiliently mounted to the frame to insulate the operator from vibrations for a more comfortable ride.
|General Parameter||Loader Weight and Load Capacity|
|Rated capacity||2000 kg||Scooptram weight||7000 kg|
|Length||5710 mm||Load weight||9000 kg|
|Width(bucket)||1395 mm||Electric motor|
|Bucket volume||1 m³||Rated Power||45 KW/1480 rpm|
|Discharging height||1300 mm||Power Voltage||380 V/440V, 50 HZ/60 HZ|
|Wheelbase||1880 mm||Control voltage||24 V|
|Min. Ground clearance||195 mm||Hydraulic Pump|
|Steering angle||left/right 38°||Model||PV22|
|Rear axle swing||±6.5°||Type||Fully reversible variable piston pump|
|Min. Turning radius||inner 2240 mm||Hydraulic Motor|
|Min. Turning radius||Outer 3990 mm||Brand||SAUER|
|Manual lubrication||YES||Type||Imported Variable piston motor|
|Manual control||YES||Material||Manganese steel|
|Ejector Bucket||For optional|
Main parts are top brands, like Sauer PV pumps and motors, Parker pump and valves etc.;
Braking System consisted of Working brake and Stop brake, with Fully enclosed and Multi-disc wet hydraulic brake, Stop brake with spring brake;

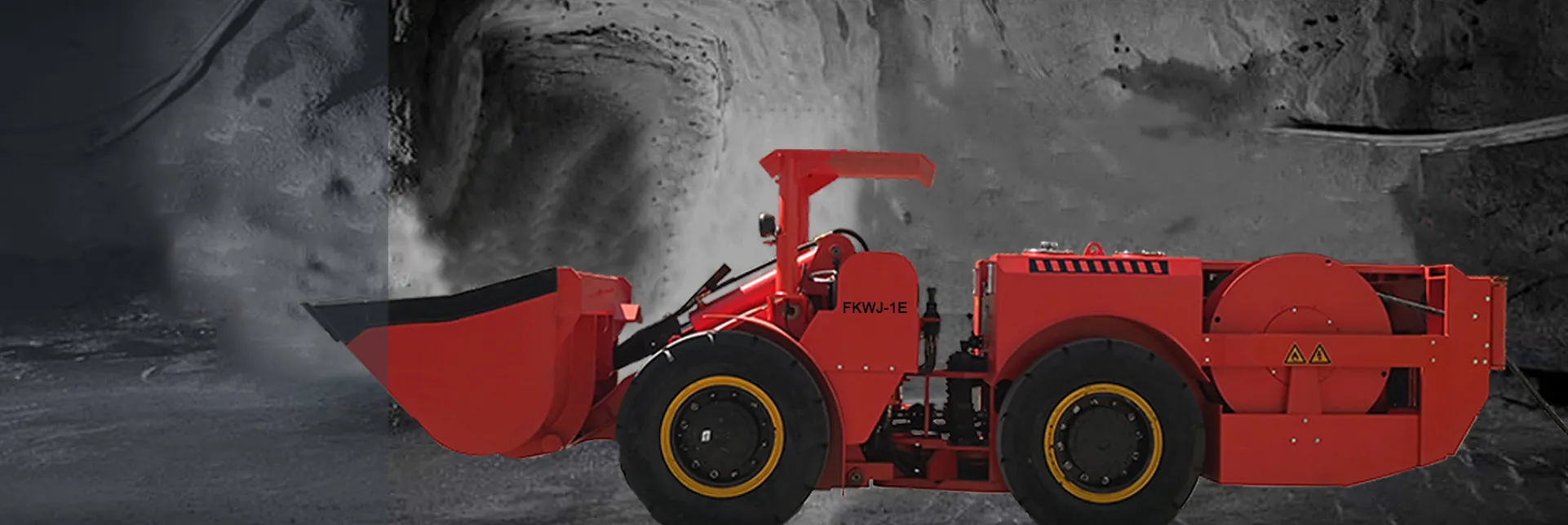

FKWJ-1E Underground Electric Loader
|FKWJ-0.6||1200 kg||0.6 m³||4910 mm||1150 mm||1825 mm||58 kw|
|FKWJ-1||2000 kg||1 m³||5700 mm||1300 mm||1920 mm||58 kw||Diesel Engine||down|
|FKWJ-2||4000 kg||2 m³||7060 mm||1500 mm||2009 mm||84 kw||Diesel Engine||down|
|FKWJ-3||7000 kg||3 m³||9350 mm||2150 mm||2252 mm||165 kw||Diesel Engine||down|
|FKWJ-4||8000 kg||4 m³||9400 mm||2500 mm||2300 mm||170 kw||Diesel Engine||down|
|FKWJ-6||14000 kg||6 m³||10502 mm||2864mm||2545mm||256 kw||Diesel Engine||down|
|FKWJ-0.6E||1200 kg||0.6 m³||4960 mm||1150 mm||1760 mm||30 kw||Electric Motor||down|
|FKWJ-1E||2000 kg||1 m³||5710 mm||1300 mm||1920 mm||45 kw||Electric Motor||down|
|FKWJ-2E||4000 kg||2 m³||7130 mm||1840 mm||1964 mm||75 kw||Electric Motor||down|
|FKWJ-3E||6000 kg||3 m³||8600 mm||2160 mm||2760 mm||90 kw||Electric Motor||down|
