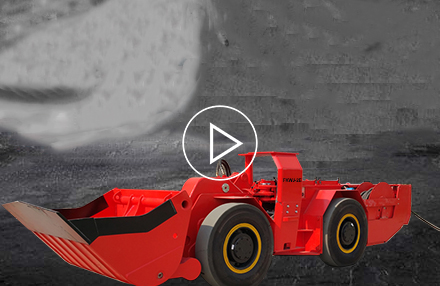

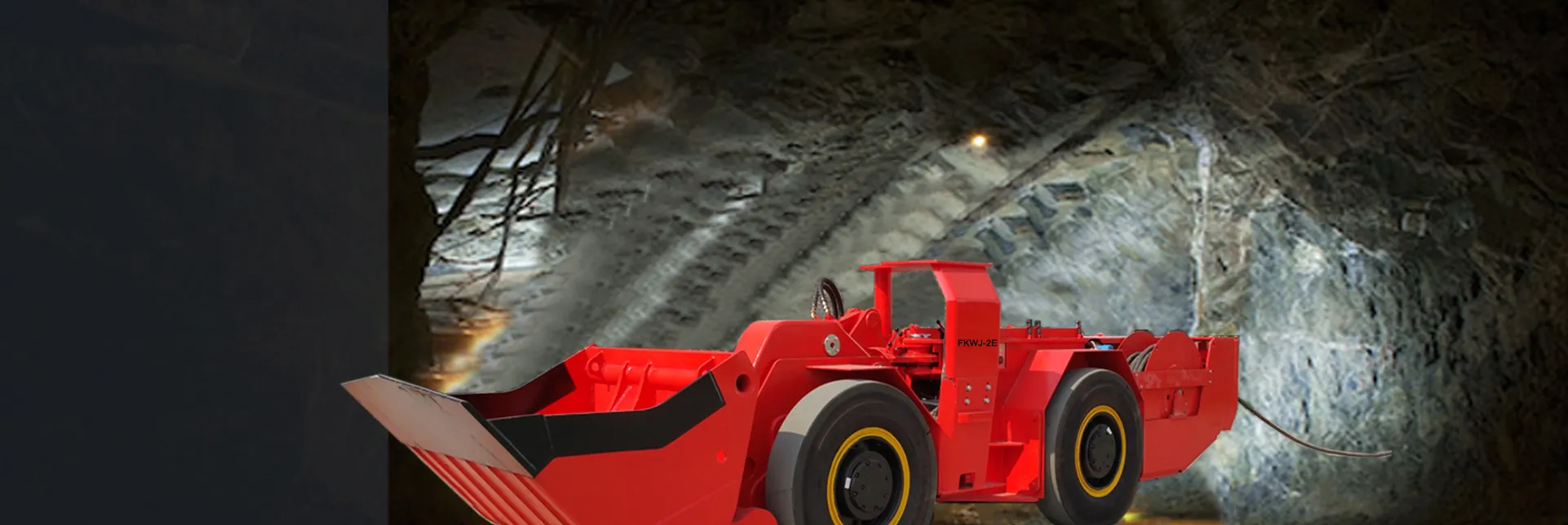

FKWJ-2E Underground electric loaders feature zero diesel emissions and low noise, reducing ventilation needs and improving underground working conditions. Electric loaders combine compact design with reliability, high digging forces, responsive control and high haul speeds. High power-to-weight ratio ensures fast cycle times.
FKWJ-2E underground electric loader is mainly used for underground mine shoveling .The power system is driven by a 75KW electric motor, hydraulically controlled variable pump, quantitative motor, front and rear axle reducers, and four-wheel drive. The front and rear of the fuselage adopt slewing bearing coupling to oscillate.
Enhanced visibility, lighting and camera coverage, including optional side and rear view cameras with color display, auto lights (high and high beam), automatic directional switching and automatic boom light switching capabilities.
Featuring a new axle design with longer life, higher availability and many maintainability features and improvements.New, larger wheel bearings with optimized positioning and flange-mounted hubs last longer and are easier to service. Four-planet final drives with larger gear sets. An updated brake design provides greater capacity, remotely mounted brake bleeders, easier service access and extended brake life.
Roll Over Protective Structure (ROPS) and Falling Object Protective Structure (FOPS) are resiliently mounted to the frame to insulate the operator from vibration for a more comfortable ride. The Operator Presence System helps ensure the safety of those working in, on or around the machine by preventing machine movement without an operator in the cab. The enclosed cab design provides fresh, pressurized, temperature-controlled air circulation and air conditioning for a more comfortable work environment.
Ride Control provides a smooth ride over uneven ground, smooth controlled directional changes, reduced driveline shock and hydraulically cushioned bucket and boom cylinder stops. All controls, levers, switches and gauges are positioned to maximize productivity and minimize fatigue.
1. High-efficiency electric drive: With no transmission or powertrain shock loads, it provides smoother directional changes and machine controllability with virtual gears. Automatic deceleration control maintains speed levels. The drive system prevents coasting in neutral and incorporates an anti-rollback feature for further operational safety
2. Comfortable and productive : The enclosed design of the cab provides fresh, pressurized, temperature-controlled air circulation and air conditioning, improving operator comfort and reducing fatigue. The ROPS/FOPS structure is resiliently mounted to the frame to insulate the operator from vibrations for a more comfortable ride.
|General Parameter||Loader Weight and Load Capacity|
|Rated capacity||4000 kg||Scooptram weight||13400 kg|
|Length||7130 mm||Load weight||17400 kg|
|Width(bucket)||1840 mm||Electric motor|
|Bucket volume||2 m³||Rated Power||75 KW|
|Lifting height||3850 mm||Power Voltage||380 V/440 V, 50 HZ/60 HZ|
|Discharging height||1880 mm||Control voltage||24 V|
|Min. Discharging distance||680 mm||Torque Converter|
|Discharging angle||40°||Brand||American DANA|
|Wheel distance||1373±15 mm||Type|
Single stage two components,
with hydraulic pump drive.
|Min. Ground clearance||251mm||Traveling Performance|
|Departure angle||15°||1 shift forward/backward||4.3 km/h|
|Steering angle||left/right 42°||2 shift forward/backward||9.5 km/h|
|Rear axle swing||±6.5°||3 shift forward/backward||18.1 km/h|
|Min. Turning radius||inner 3185 mm||Grade ability||12% (load)|
|Min. Turning radius||Outer 5350 mm||Max. Traction||102 KN|
|Hydraulic Pump||Max. Shovel||82 KN|
|Work pump||Parker||Shift Transmission|
|Steering pump||Parker||Brand||American DANA|
power shift (3 shifts) forward+backward
with Emergency brake
|Drive Axle||Driver Cabin|
|Brand||China||Reinforced steel panel||YES|
Rigid planetary transmission axle
with NON-SPIN & anti-slip differential
|Side-seat layout with good vision||YES|
|Manual lubrication||YES||Material||Manganese steel|
|Control system||Ejector Bucket||For optional|
Main parts are imported top brand, like DANA torque converter, transmission, Parker pump and valves etc.;
Braking System consisted of Working brake and Stop brake, with Fully enclosed and Multi-disc wet hydraulic brake, Stop brake with spring brake;
Tailor made size and optional parts for customers to choose: remote control, Centralized lubrication system, ejector bucket etc.

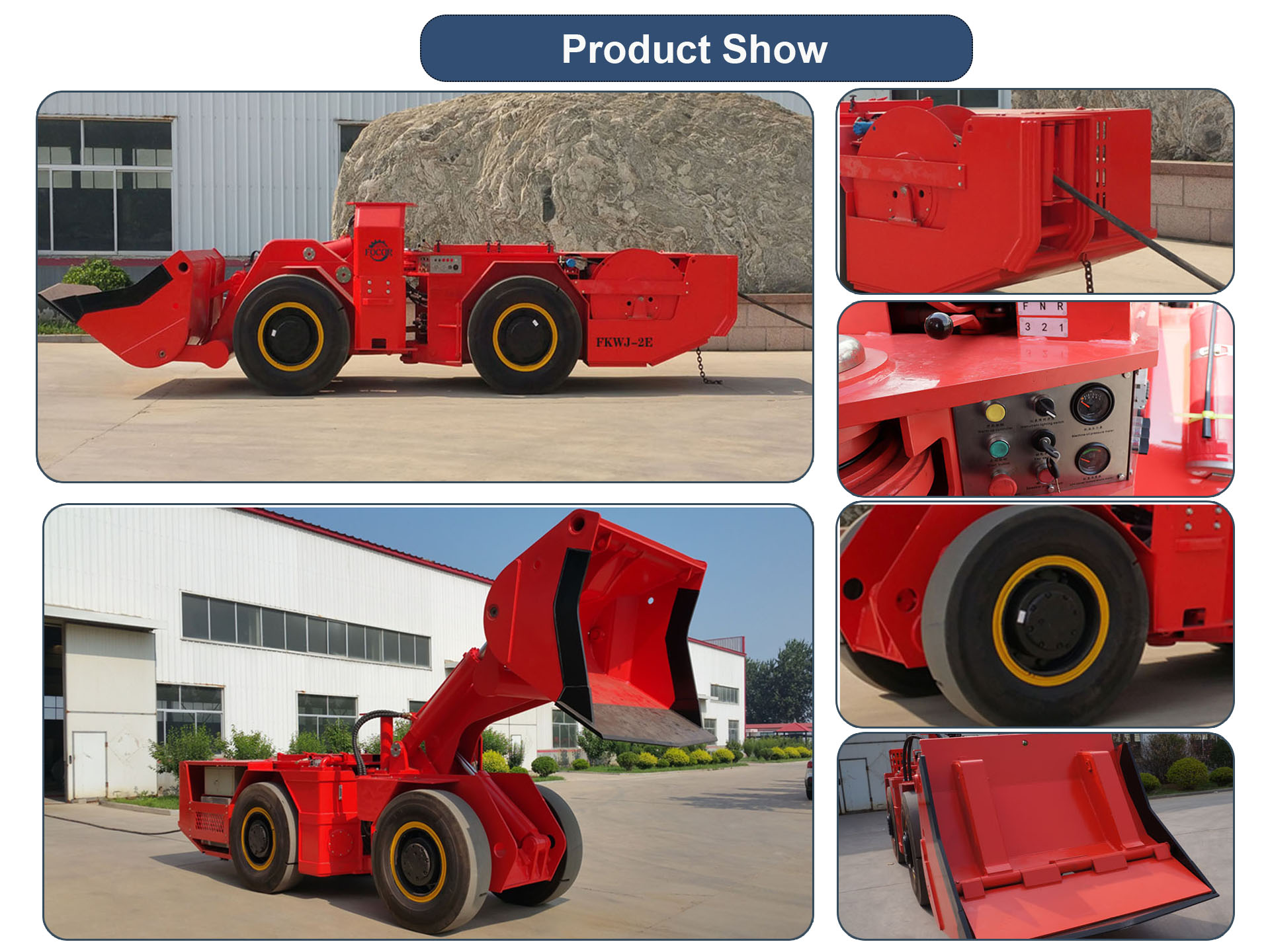

FKWJ-2E Underground Electric Loader
|FKWJ-0.6||1200 kg||0.6 m³||4910 mm||1150 mm||1825 mm||58 kw|
|FKWJ-1||2000 kg||1 m³||5700 mm||1300 mm||1920 mm||58 kw||Diesel Engine||down|
|FKWJ-2||4000 kg||2 m³||7060 mm||1500 mm||2009 mm||84 kw||Diesel Engine||down|
|FKWJ-3||7000 kg||3 m³||9350 mm||2150 mm||2252 mm||165 kw||Diesel Engine||down|
|FKWJ-4||8000 kg||4 m³||9400 mm||2500 mm||2300 mm||170 kw||Diesel Engine||down|
|FKWJ-6||14000 kg||6 m³||10502 mm||2864mm||2545mm||256 kw||Diesel Engine||down|
|FKWJ-0.6E||1200 kg||0.6 m³||4960 mm||1150 mm||1760 mm||30 kw||Electric Motor||down|
|FKWJ-1E||2000 kg||1 m³||5710 mm||1300 mm||1920 mm||45 kw||Electric Motor||down|
|FKWJ-2E||4000 kg||2 m³||7130 mm||1840 mm||1964 mm||75 kw||Electric Motor||down|
|FKWJ-3E||6000 kg||3 m³||8600 mm||2160 mm||2760 mm||90 kw||Electric Motor||down|
