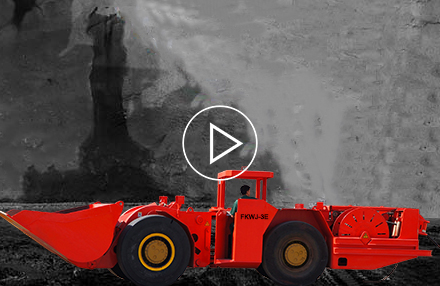

FKWJ-3E Underground Electric Loader

FKWJ-3E is an underground electric loader for underground loading and transportation with a transportation capacity of 17 tons. This durable, high-capacity electric loader proves you can create a cleaner, quieter and safer underground work environment without sacrificing power and productivity.
Contact Us

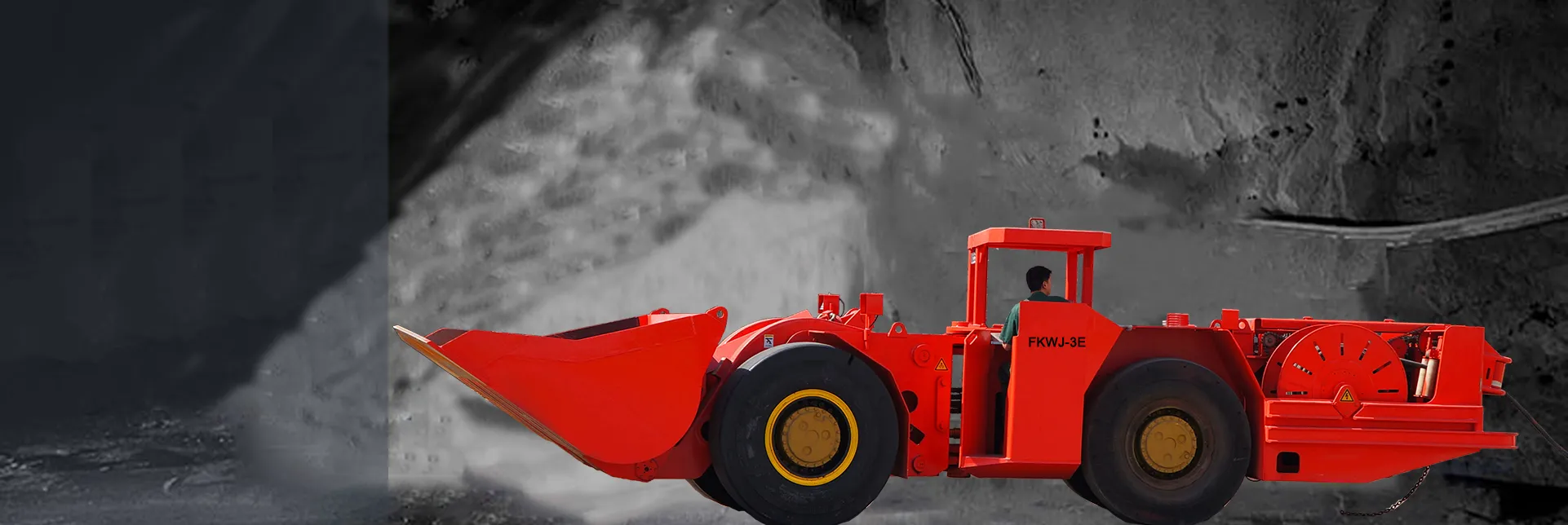

FKWJ-3E Underground Electric Loader

FKWJ-3E is an underground electric loader for underground loading and transportation with a transportation capacity of 17 tons. This durable, high-capacity electric loader proves you can create a cleaner, quieter and safer underground work environment without sacrificing power and productivity.


The mechanical body weight of FKWJ-3 is 17 tons. The maximum load capacity of our FKWJ-3 underground electric loader is 23 tons. Our rated capacity is 6 tons. The electric motor is HM2-280M-4, and the hydraulic pump is Parker. The drive axle is American DANA. Rigid planetary transmission axle with NON-SPIN & anti-slip differential. The brand of torque converter is American DANA C273. Single stage two components, with hydraulic pump drive. The brand of gearbox is 15.7HR36000. The feature of Shift is Single stage two components, with hydraulic pump drive.


Enhanced visibility, lighting and camera coverage, including optional side and rear view cameras with color display, auto lights (high and high beam), automatic directional switching and automatic boom light switching capabilities.

FKWJ-3E Electric Loader Specific Description

FKWJ-3E underground electric loader is mainly used for underground mine shoveling, transportation of ore and rubble after the bursting and is also used in railway, highway, and tunnel construction project especially those places such as bad working conditions, narrow, work site, low and muddy work site. The power system is driven by 90KW electric motor, hydraulic control variable displacement pump, Quantitative motor, front and rear axle reducer and four wheel drive. Front and back fuselage use slewing bearing coupling oscillation. Working system adopts hydraulic control pilot operating system, making the scooptram operation more flexible, simple, efficient and low failure rate. Emergency parking brake uses a drive axle wet brake, spring brake, hydraulic lift brake, sudden power off brake, safe and reliable.

Advantage

1. High-efficiency electric drive: With no transmission or powertrain shock loads, it provides smoother directional changes and machine controllability with virtual gears. Automatic deceleration control maintains speed levels. The drive system prevents coasting in neutral and incorporates an anti-rollback feature for further operational safety

2. Comfortable and productive : The enclosed design of the cab provides fresh, pressurized, temperature-controlled air circulation and air conditioning, improving operator comfort and reducing fatigue. The ROPS/FOPS structure is resiliently mounted to the frame to insulate the operator from vibrations for a more comfortable ride.

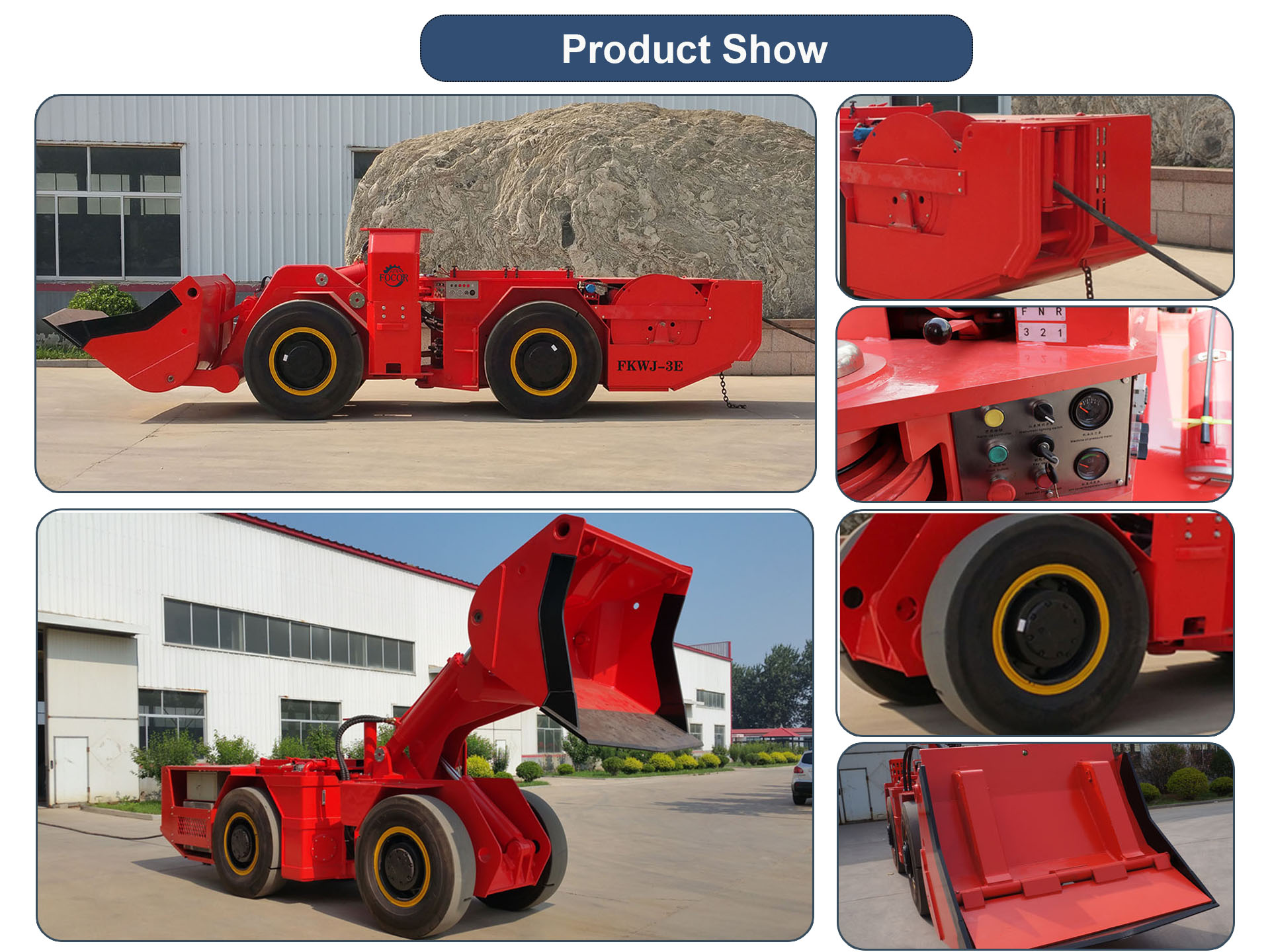

DETAILS SHOW

FKWJ-3E

General Parameter
Loader Weight and Load Capacity
Rated capacity6000 kg
Scooptram weight17000 kg
Length(bucket down)9000 mm
Load weight23000 kg
Length(bucket up)8600 mm
Electric motor
Width(bucket)2160 mm
BrandChina
Height(cabin)2760 mm
ModelHM2-280M-4
Bucket volume3 m³
Rated Power90 KW/1480 rpm
Total action time< 25 s
Power Voltage380 V/440 V, 50 HZ/60 HZ
Lifting height4230 mm
Control voltage24 V
Discharging height1500mm
Torque Converter
Min. Discharging distance1420mm
BrandAmerican DANA
Discharging angle40°
ModelC273
Wheelbase3050 mm
Type

Single stage two components

with hydraulic pump drive.

Wheel distance1900 mm
Traveling Performance
Ground clearance295 mm
1 shift forward/backward3.8 km/h
Departure angle16°
2 shift forward/backward7.8 km/h
Steering angleleft/right 42°
3 shift forward/backward12.5 km/h
Rear axle swing±8°
4 shift forward/backward20 km/h
Min. Turning radiusinner 2880 mm
Grade ability15% (load)
Min. Turning radiusouter 5700 mm
Max. Traction100 KN
Hydraulic Pump
Max. Shovel120 KN
Work pumpParker
Shift Transmission
Steering pumpParker
BrandAmerican DANA
Brake pumpRexroth
Model15.7HR36000
Slippage pumpDANA
Shift

power shift (4 shifts) forward+backwar

dwith Emergency brake

Axle
Driver Cabin
BrandAmerican DANA
Reinforced steel panelYES
Type

Rigid planetary transmission axle

with NON-SPIN & anti-slip differential


Side-seat layout with good visionYES
Model16D
Bucket
Lubrication system
MaterialManganese steel
Manual lubricationYES
Ejector BucketFor optional
Control system


Manual controlYES


1

Main parts are imported top brand, like DANA torque converter, transmission and Axles, Parker pump and valves etc.;

2

Braking System consisted of Working brake and Stop brake, with Fully enclosed and Multi-disc wet hydraulic brake, Stop brake with spring brake;

3

Tailor made size and optional parts for customers to choose: remote control, Centralized lubrication system, ejector bucket etc.

FKWJ-3E Underground Mining Electric Loader

FKWJ-3E Underground Electric Loader

Download


PRODUCTPAYLOAD  BUCKET LENGTH
WIDTHHEIGHT POWERTYPESPEC SHEET
FKWJ-0.6
1200 kg0.6 m³4910 mm1150 mm1825 mm58 kw

Diesel Engine

down
FKWJ-12000 kg1 m³5700 mm1300 mm1920 mm
58 kwDiesel Enginedown
FKWJ-24000 kg7060 mm1500 mm2009 mm84 kwDiesel Enginedown
FKWJ-37000 kg3 m³9350 mm2150 mm2252 mm165 kw
Diesel Enginedown
FKWJ-48000 kg4 m³9400 mm2500 mm2300 mm170 kwDiesel Enginedown
FKWJ-614000 kg10502 mm2864mm2545mm 256 kwDiesel Enginedown
FKWJ-0.6E1200 kg0.6 m³4960 mm1150 mm1760 mm30 kwElectric Motordown
FKWJ-1E2000 kg1 m³5710 mm1300 mm1920 mm45 kwElectric Motordown
FKWJ-2E4000 kg2 m³7130 mm1840 mm1964 mm75 kwElectric Motordown
FKWJ-3E6000 kg3 m³8600 mm2160 mm2760 mm90 kwElectric Motordown
