Scissor Lifting

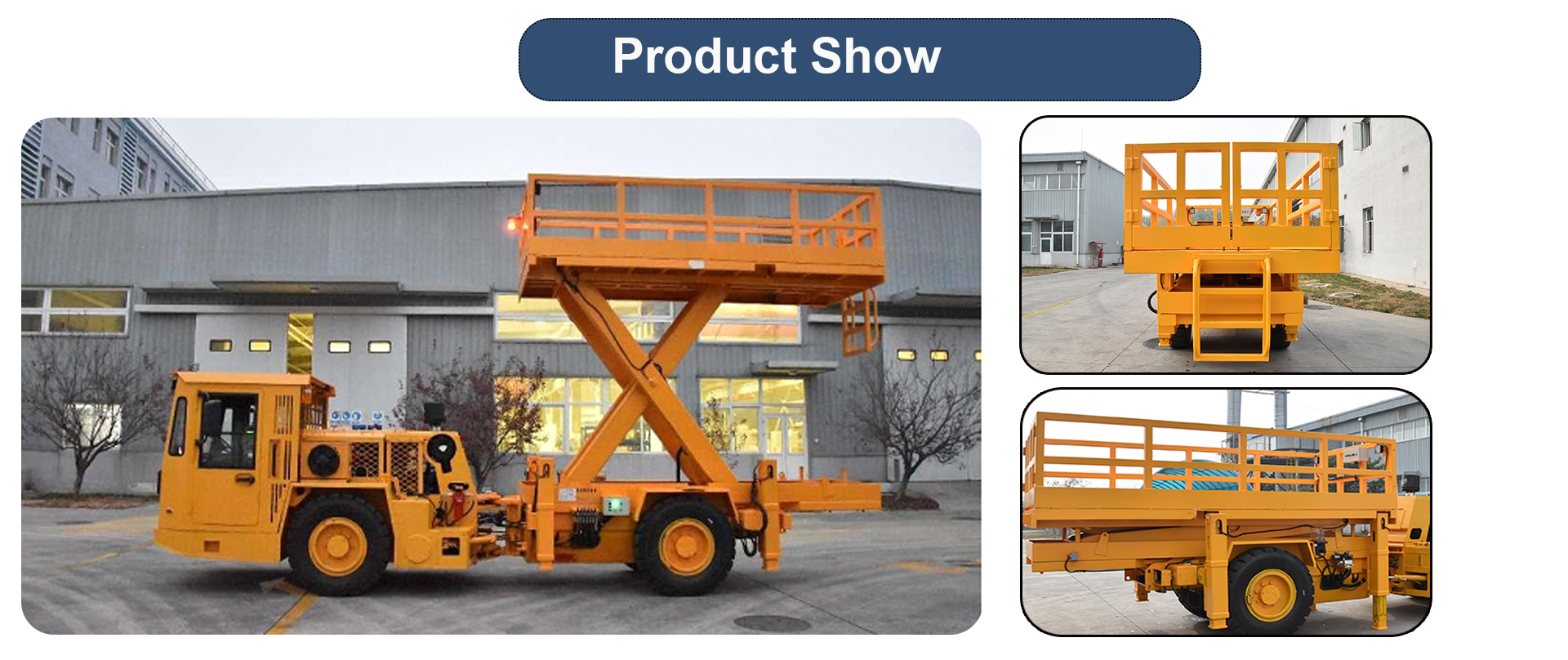

The working mechanism is equipped with a cutting-type lifting platform, which is mainly used for various auxiliary material transportation and roadway maintenance (roof, pole, hanging net, pipe layout, etc.) in underground mines. TheFKJP205 Scissor Lifting can assist hourly operating hours to increase productivity in underground mines.

FKJP205 Scissor Lifer

The empty weight is 5 tons and the full weight is 13.4 tons. The maximum lifting height (here refers to the height of the platform from the ground) is 3500 mm, and the standard load capacity is 4 tons. The lifting scissors are single scissors with 4 hydraulic supports. The lifting time of the equipment is controlled within 40 seconds. The steering type adopts the swivel joint, and the hydraulic power steering is driven by two double-acting steering cylinders, and the steering angle is ±42°. The service brake configuration is hydraulic. The parking brake is configured spring applied and hydraulically released. Braking pressure type 4.5Mpa.

Detail Photos

Scissor Lifting

Main DimensionsEngine
Length7800 mmManufacturerCUMMINS
Width1863 mmTypeQSB4.5-C1300
Height(Cabin)2265 mmStructural featuresWater cooled diesel engine
Height(carriage)2460 mmMax. power97kW/2000rpm
Technical parametersMax. torque900Nm/1500rpm
Length3600 mmAir intake systemDry air filter
Width1800 mmExhaust systemDOC Exhaust gas catalyst/silencer
Lifting height3357 mmStarter, power/voltage  4.8 kW/24V
Lifting capacity1200 kgAlternator, voltage/ampere24V/70A
Tramping CapacitiesExhaust qualityU.S.EPA Tier 3and EUROPE Stage III
Max. attractive≥90kNWheels and Tires
1st gear(forward)5.0km/hTires size10.00-20 TT
2nd gear(forward)10.9km/hFilling pressure5.5bar
3rd gear(forward)24.5km/hSteering system
Max. Grade ability25%TypeSteering wheel control
Grade ability (fully loaded)2nd gear 6.7km/h at 15%Steering angle±40°
Transmission SystemTurning radiusInner 4000± 200mm
Torque converter and transmissionDANA
Outer 6193±200mm
Manufacturer1201FT20000 seriesHydraulic System
TypePower shift transmission with 3Hydraulic Steering control unitDouble gear pump
Structural featuresforward and 3 reverse gears eachHydraulic steering gearLoad sensor steering gear
AxlesSystem pressure15MPa
ManufacturerDANASteering cylinder2
Structural features

Rigid planetary axles

 with differential gear

Operating areaEnclosed cabin, Forward seating
BrakesSeatsAdjustable seat
Service brakeLCBStructural features

Froward driving position throttle and brake,

 with data display, fault alarm

Parking brake/emergency brakeSpring applied, hydraulic
 release (SAHR)

Tachometer, Pre-heat indicator,

 Engine oil temperature gauge,

Brake pressure gauge,transmission

pressure gauge, Brakepressure low

warning light, engine oil pressure

warning light

Structural featuresFully enclosed, oil cooled
multiple wet discs at each axle
Filling Volumes
Electrical equipmentFuel tank110L
Operating voltage24VHydraulic tank140L
Battery2×12V/120AhDiesel engine oil pan11L
Lighting systemTorque converter/power shift24L
Front lights(LED)2×27WFront axle differential gear9L
Rear lights (LED)2×27WFront axle planetary gear2x1.3L
Roof light(LED)1×27WRear axle differential gear6L
Warning light1Rear axle planetary gear2x1.3L
Safety Features

CabinSAE heavy duty canopy (ROPS/FOPS)

Fire protection devicePortable manual fire extinguisher

Starting deviceMachine starts on transmission neutral position

Reversing alarm112dB


ROPS/FOPS cab conforming to US SAE standard,to reduce operator fatigue and increase productivity


LED work lights mounted on the platform and the vehicle.


It can be delivered with an optional enclosed, air-conditioned and heated cab upon customer request.
