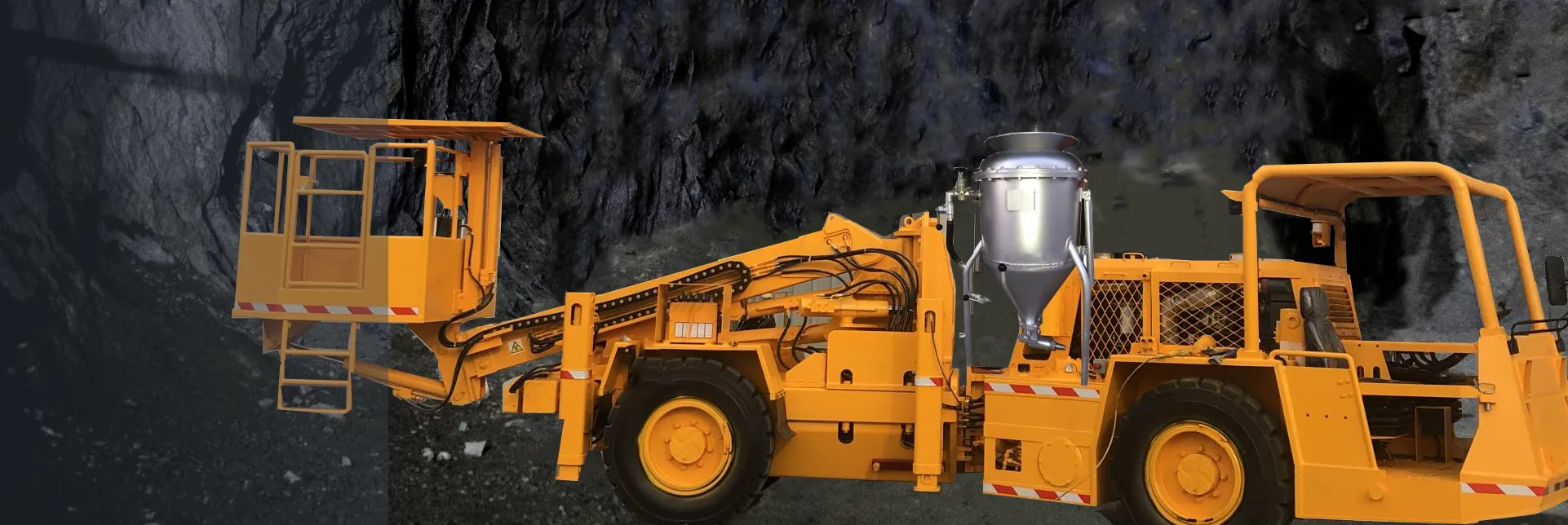

OverviewThe Anfo charger consists of a general chassis and a fixed compartment, and is suitable for transporting explosives and materials in underground mines. The power system adopts the world's most advanced cummis Water-cooled Electric control diesel engine, and is equipped with a platinum dry exhaust muffler from the Canadian ECS company; the transmission system uses the hydraulic torque converter, power shift gearbox and drive axle from the American DANA company. The brake system adopts a full hydraulic system, integrating service brake, parking brake and emergency brake. The main components of the hydraulic system are products from world-renowned companies such as Rexroth, Parker, and SAFIM, with good quality and reliable performance. The general chassis of this car is equipped with different working mechanisms, which can be composed of various auxiliary vehicles such as material transport vehicles, people transport vehicles, and refueling vehicles.
| Main dimensions | Boom and Basket | |||
| Length | 8622 mm | Basket dimension | 1400*1350*1100 mm | |
| Width | 1800 mm | Lifting Capacity | 300 Kg | |
| Height(Include basket) | 2490 mm | Lifting Height | 5 m | |
| Ground clearance | 260 mm | Horizon control | Automatic | |
| wheel base | 3620 mm | Operation from basket | Engine start/stop | |
| Charging System | Safety | Lowering boom when engine stop | ||
| Vessel quantity | 2 | Tramming capacities | ||
| Unit vessel capacity | 250 L | Maximum tramming speed | ||
| Single barrel capacity | 200 Kg | Laden forward / reverse, on a dry level roadway | ||
| Working wind pressure | 0.25～0.4 Mpa | Max. Traction force | ≥90 kN | |
| Withstand maximum wind pressure | 0.7Mpa | 1st Gear | 5 km/h | |
| Inner diameter of drug delivery hose | Φ25-Φ32 | 2nd Gear | 10.9 km/h | |
| Dimensions: length * width * height | 1980*1700*1500 mm | 3rd Gear | 24.5 km/h | |
| Weight | 250 Kg | Grade ability | 2nd gear 6.7 km/h at 15% | |
| Source of compressed air | User supply | Engine | ||
| Compressed air pressure | 5 bar | Manufacturer | Cummins | |
| Compressed air flow | 8-10 cu.m/min | Type | QSB4.5-C130 | |
| Control method | starting and stopping buttons are set in the hanging basket, which can be controlled by one button | Design | Water-cooled Electric control diesel engine | |
| Torque converter and Power shift transmission | Max. power | 97 kW/2300 rpm | ||
| Manufacturer | DANA Spicer off-highway | Max. torque | 511 Nm/1500 rpm | |
| Type | 1201FT20000 series | Air intake system | Dry air filter | |
| Design | Single stage industrial type with auxiliary drives for steering and dump hydraulic systems Power shift transmission with 3 forward and 3 reverse gears | Exhaust system | ECS exhaust gas catalyst / silencer | |
| Front Axle | Starter, power/voltage | 4.8 kW/24V | ||
| Manufacturer | DANA | Alternator, voltage/ampere | 24 V/70 A | |
| Type | Spicer 112 | Exhaust quality | Meets exhaust regulation EU StageⅢ and U.S.EPA Tier3 | |
| Design | Rigid planetary axles with standard differential | Front wheels | ||
| Rear Axle | Size | 10.00-20 TT | ||
| Manufacturer | DANA | Tire filling pressure | 7.5 bar | |
| Type | Spicer 112 | Rear wheels | ||
| Design | Rigid planetary axles with standard differential | Size | 10.00-20 TT | |
| Brakes | Tire filling pressure | 7.5bar | ||
| Service brake | Hydraulic applied | Steering | ||
| Design | Fully enclosed, multiple wet discs at axle | Type | Steering wheel, pilot steering control | |
| Service brake accumulator pressure | 15 MPa | Design | swivel-joint hydraulic power steering | |
| Parking brake | Spring applied, hydraulic release(SAHR) | Steering angle | ±40° | |
| Parking brake ability | >25% slope, fully loaded | Inner Clearance circle | 4000±150 mm | |
| Hydraulic system | Outer clearance circle | 6140±250 mm | ||
| System pressure | 20 MPa | Safety Features | ||
| Steering Cylinder | 2 | Canopy | SAE heavy duty tubular canopy (ROPS/FOPS) | |
| Electrical equipment | Fire suppression | Portable manual fire extinguisher | ||
| Operating voltage | 24 V | Machine start-up | Machine start on transmission neutral position | |
| Batteries | 2×12 V/120 Ah | Reverse alarming | 112 dB | |
| Lighting system | Filling volumes | |||
| Main headlights | 2×27 W | Fuel tank | 110 L | |
| Reversing headlights | 2×27 W | Hydraulic tank | 140 L | |
| Beacon light | 1 | Diesel engine oil pan | 16 L | |
| Operator Canopy | Torque converter/power shift | 24 L | ||
| Operator Area | Forward seating | Front axle differential gear | 9 L | |
| Operator Seat | Spring cushioned seat. Adjustable horizontal distance from control panel | Front axle planetary gear | 2×1.3 L | |
| Meters/gauges | Tachometer, Engine oil pressure gauge, Engine oil temperature gauge | Rear axle differential gear | 9 L | |
| Rear axle planetary gear | 2×1.3 L | |||
ROPS/FOPS cab conforming to US SAE standard，to reduce operator fatigue and increase productivity
LED work lights mounted on the platform and the vehicle.
Download
| MODEL | MAIN FEATUR | LENGTH | WIDTH | HEIGHT | POWER | TYPE | SPEC SHEET |
| FKYR22 | Capacity: 20 | 8250 mm | 2280 mm | 2400 mm | 97 kw | Diesel Engine | down |
| FKJP205 | Scissor Lifting | 8095 mm | 1860 mm | 2343 mm | 97 kw | Diesel Engine | down |
| FKYB205 | Arm Lifting | 8745 mm | 1860 mm | 2490 mm | 97 kw | Diesel Engine | down |
| FK206D | Rated loader: 10057 kg | 7495 mm | 1863 mm | 2400 mm | 97 kw | Diesel Engine | down |
| FKPS-100 | Breaker: SB50 | 7500 mm | 1800 mm | 3300 mm | 107 kw | Diesel Engine | down |
| FKQM-45 | Breaker: SB30 | 7300 mm | 1420 mm | 1920 mm | 42 kw | Diesel Engine | down |
