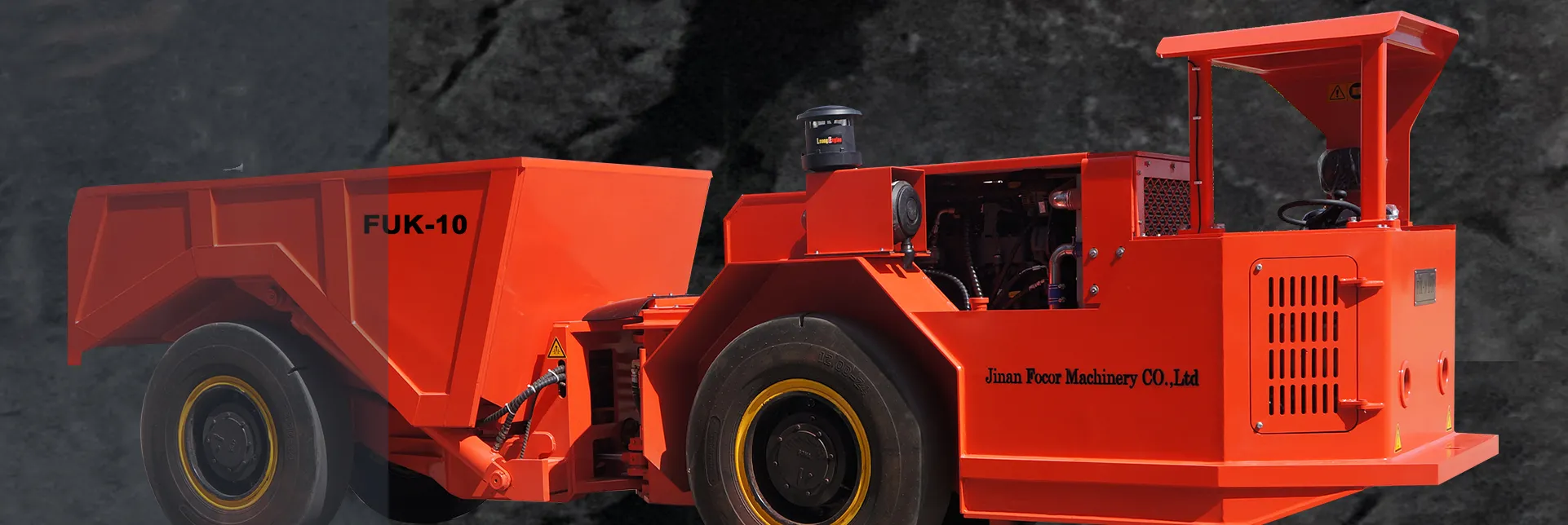

The FUK-10 is a compact underground mining truck with a capacity of 10 tons, designed to provide the flexible mobility required in narrow vein mining conditions. FUK-10 is an underground mining truck with a payload of 10 tons, suitable for medium-sized mining machinery. Best payload to deadweight ratio in its class. It has a variety of features that can help mines maximize tonnage and minimize costs. The payload of this mining truck is relatively high relative to its weight and it is flexible on the stand thanks to the chain mining truck. With intelligent systems and hardened fast components, it ensures productivity, reliability, operator safety and comfort, and ease of maintenance. Our products are equipped with structurally optimized full-penetration welded cross-section frame, beautiful and wear-resistant cargo compartment, which can improve the lower part and load-carrying capacity of the truck.
FUK-10 underground transport vehicle is a medium and small mining transport vehicle. Designed for performance, it is powered by a German Deutz engine that delivers fast cycle times and maximum efficiency. With a variety of body styles and a variety of body sizes, you can choose the right body for maximum efficiency. The cab is ergonomically designed for operator safety, comfort and control. Sturdy construction and easy maintenance guarantee a long service life and low operating costs.Controls, levers, switches and gauges are positioned to maximize productivity and minimize fatigue.
Four-corner oil-cooled brake system for excellent handling; the integrated system combines service brake, auxiliary brake, parking brake and retarding functions in the same robust system for optimal braking efficiency. Focor truck bodies are engineered for optimum strength, capacity and durability, with improved design and use of steel for longer life and lower cost per ton.
1. Ergonomically designed for all-day comfort, control and productivity;
2. Faster dumping speeds thanks to powerful engine, automatic retarding and single-stage lift cylinders;
3. Integrated weighing system option ensures full utilization of truck payload capacity.
|General Parameter||Loader Weight & Capacity|
|Rated capacity||10000 kg||Truck weight||14000 kg|
|Length||7670 mm||Loading weight||24000 kg|
|Width||1800 mm||Traveling performance|
|Height(cabin)||2300 mm||1 shift forward/backward||4.6 km/h|
|Bucket volume||5 m³||2 shift forward/backward||10.5 km/h|
|Discharging height||3630 mm||3 shift forward/backward||18 km/h|
|Discharging angle||62°||Grade ability||25% (load)|
|Bucket lifting time||8 S||Max. Traction||140 KN|
|Bucket down time||5 S||Diesel Engine|
|Wheelbase||3683 mm||Brand||Germany DEUTZ|
|Min. Ground clearance||320 mm||Model||BF4M1013EC/115 KW|
|Steering angle||left/right 40°||Type||Water cooling|
|Turning angle||±10°||Rated Power||115 KW/2300 rpm|
|Min. Turning radius||inner 4050 mm||Remarks||Original Germany Deutz Brand|
|Min. Turning radius||Outer 6500 mm||Bucket|
|Torque Converter||Material||Manganese steel|
Single stage two components
with hydraulic pump drive.
Rigid planetary transmission axle with
NON-SPIN & anti-slip differential
power shift (3 shifts)
|Manual Fire extinguisher||YES|
|Driver Cabin||Centralized Fire extinguisher||For optional|
|Reinforced with 6mm steel panel||YES||Lubrication system|
|Side-seat layout with good vision||YES||Manual lubrication||YES|
|Closed Cabin with air conditioner||For optional||Centralized lubrication||For optional|
The computerized drive system, Rig Control System, RCS, provides service information and diagnostics that are logged as well as displayed on the screen inside the cab.
Standard safety features and comfortable work conditions adds to increased production.
Main parts are imported top brand, like Deutz Engine, DANA torque converter, transmission, Parker pump and valves etc.;

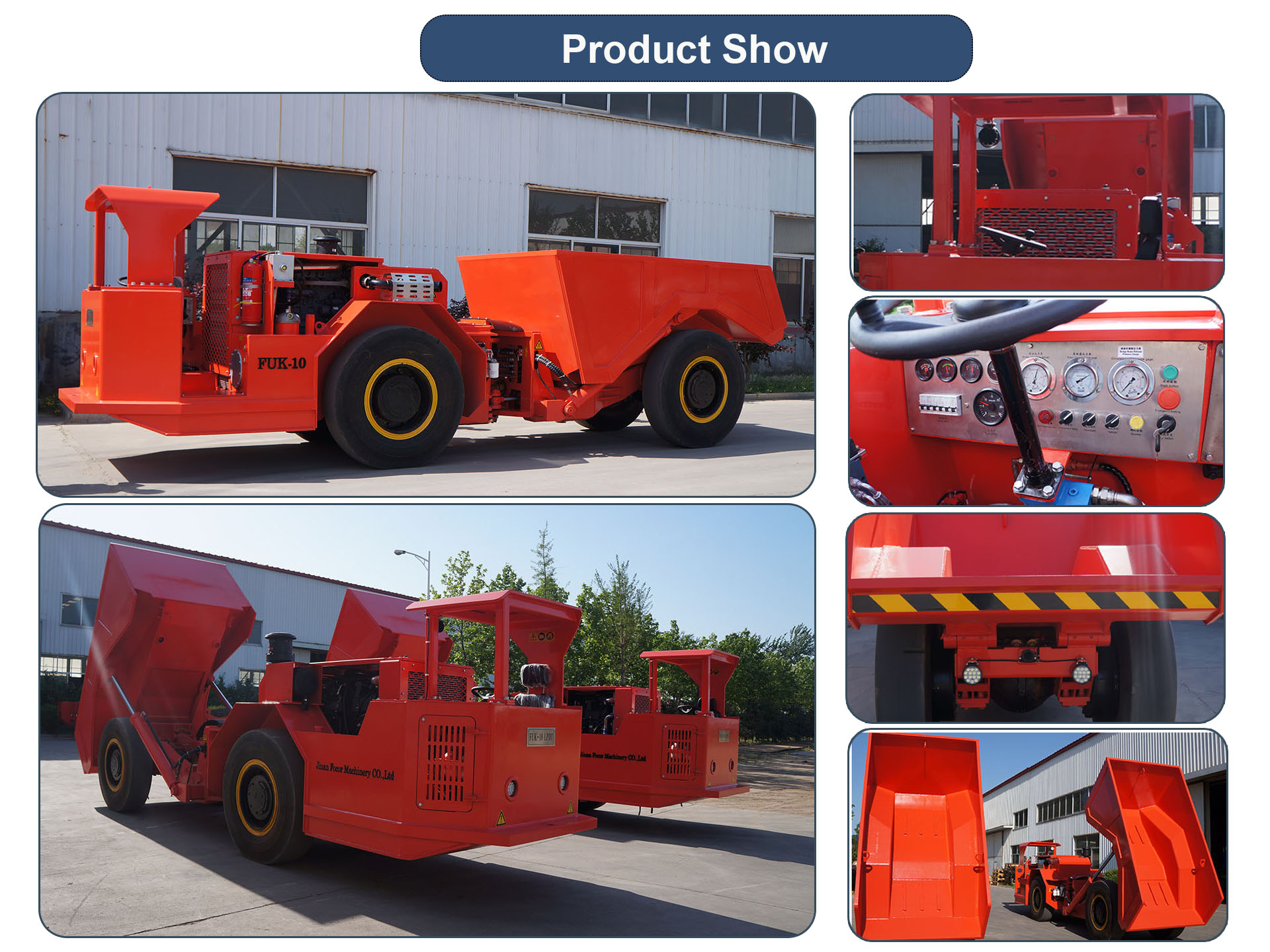

FUK-10 Underground Articulated Dump Mining Truck
|FUK-6||6000 kg||3 m³||5950 mm||1500 mm||2009 mm||84 kw||Diesel Engine||down|
|FUK-8||8000 kg||4 m³||7670 mm||1800 mm||2300 mm||115 kw||Diesel Engine||down|
|FUK-10||10000 kg||5 m³||7670 mm||1800 mm||2300 mm||115 kw||Diesel Engine||down|
|FUK-12||12000 kg||6 m³||7560 mm||2047 mm||2410 mm||165 kw||Diesel Engine||down|
|FUK-15||15000 kg||7.5 m³||7678 mm||2250 mm||2410 mm||165 kw||Diesel Engine||down|
|FUK-18||18000 kg||9 m³||8300 mm||2100 mm||2310 mm||165 kw||Diesel Engine||down|
|FUK-20||20000 kg||10 m³||9204 mm||2400 mm||2530 mm||170 kw||Diesel Engine||down|
|FUK-30||30000 kg||15 m³||10100 mm||2640 mm||2660 mm||285 kw||Diesel Engine||down|
|FUK-42||42000 kg||20 m³||10823 mm||3020 mm||2850 mm||405 kw||Diesel Engine||down|
