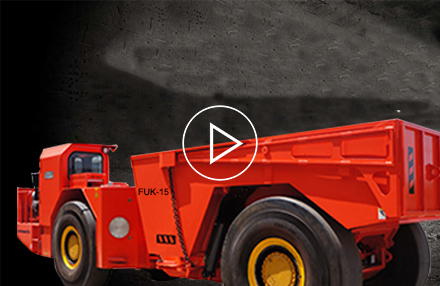

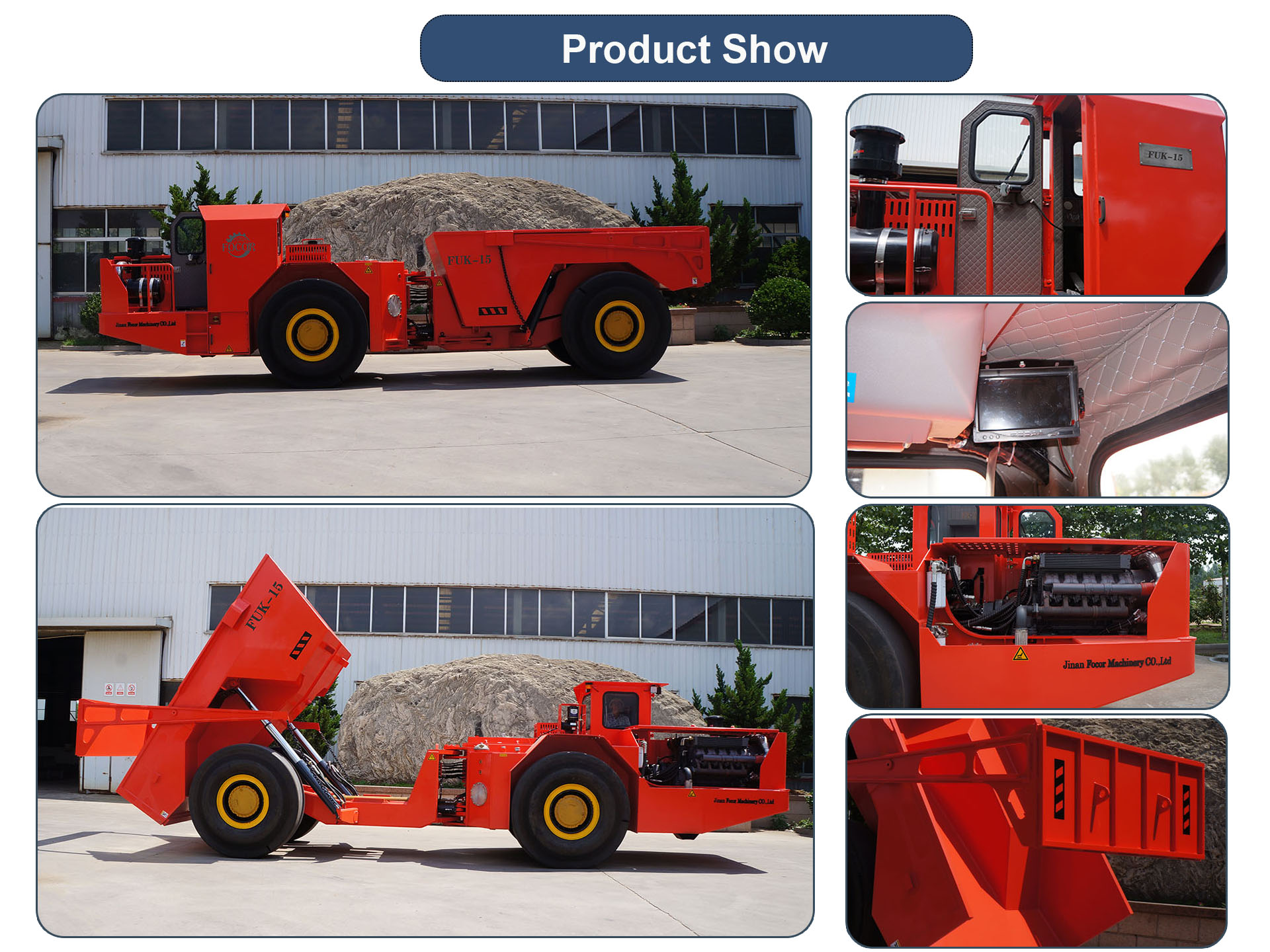

The FUK-15 is a narrow 15 ton truck suitable for a 4 x 4 meter driving direction. Focor offers a standard open-forward operator's cabin or an optional fully enclosed forward-facing air-conditioned cab, providing operator comfort without compromising visibility.
The FUK-15 underground mining dump trucks are reliable 15-ton trucks designed with a high-strength steel frame and a heavy-duty, all-mechanical powertrain to help you meet your production goals while keeping costs down. The FUK-15 underground mining truck increases productivity and efficiency. This powerful truck has a 15-ton carrying capacity and low overall equipment weight for high ramp speeds. SCR uses diesel exhaust fluid to reduce NOx emissions without sacrificing truck performance or fuel efficiency.
The weight of the FUK-15-ton machine is 14 tons, and the load capacity is 30 tons. The cab is made of reinforced 6mm steel plate, which is arranged horizontally with high safety and has good vision. The engine of choice is a Germany DEUTZ BF6M1013. The service brake adopts a fully enclosed multi-disc wet hydraulic brake, and the parking brake adopts a spring brake. The composition of our hydraulic system includes working system, steering system, braking system, oil supplement acceleration system. Control system Our standard configuration is manual control system. You can also choose remote control with video images. Our buckets are designed with high temperature manganese steel and can be moved buckets.
1. The transmission system of this model uses the hydraulic torque converter, power-shift gearbox and drive axle of the American DANA brand;
2. This model has passed the national mining product safety certification, with reliable and stable performance, flexible and convenient operation, large driving force, strong climbing ability, stable operation, small turning radius, safe and reliable;
3. This model can be customized.
|General Parameter||Loader Weight & Capacity|
|Rated capacity||15000 kg||Truck weight||15800 kg|
|Length||7678 mm||Loading weight||30800 kg|
|Width||2250 mm||Traveling performance|
|Height(cabin)||2410 mm||1 shift forward/backward||5 km/h|
|Bucket volume||7.5 m³||2 shift forward/backward||11 km/h|
|Discharging height||4212 mm||3 shift forward/backward||17.1 km/h|
|Discharging angle||62°||4 shift forward/backward||23.5 km/h|
|Bucket lifting time||9.1 S||Grade ability||25% (load)|
|Bucket down time||8.2 S||Max. Traction||160 KN|
|Wheelbase||3710 mm||Diesel Engine|
|Min. Ground clearance||400 mm||Brand||Germany DEUTZ|
|Steering angle||left/right 40°||Model||BF6M1013|
|Turning angle||±7°||Type||Water cooling|
|Min. Turning radius||inner 4850 mm||Rated Power||165 KW/2300 rpm|
|Min. Turning radius||Outer 7660 mm||Remarks||Original Germany Deutz Brand|
|Brand||American DANA||Material||Manganese steel|
Single stage two components
withhydraulic pump drive.
Rigid planetary transmission axle with
NON-SPIN & anti-slip differential
power shift (4 shifts)
|Driver Cabin||Manual Fire extinguisher||YES|
|Reinforced with 6mm steel panel||YES||Centralized Fire extinguisher||For optional|
|Side-seat layout with good vision||YES||Lubrication system|
|Closed Cabin with air conditioner||For optional||Manual lubrication||YES|
|Centralized lubrication||For optional|
Main parts are imported top brand, like Deutz Engine, DANA torque converter, transmission, Parker pump and valves etc.;
2. Braking System consisted of Working brake and Stop brake, with Fully enclosed and Multi-disc wet hydraulic brake, Stop brake with spring brake;
3. Tailor made size and optional parts for customers to choose: remote control, Centralized lubrication, rear view camera etc.

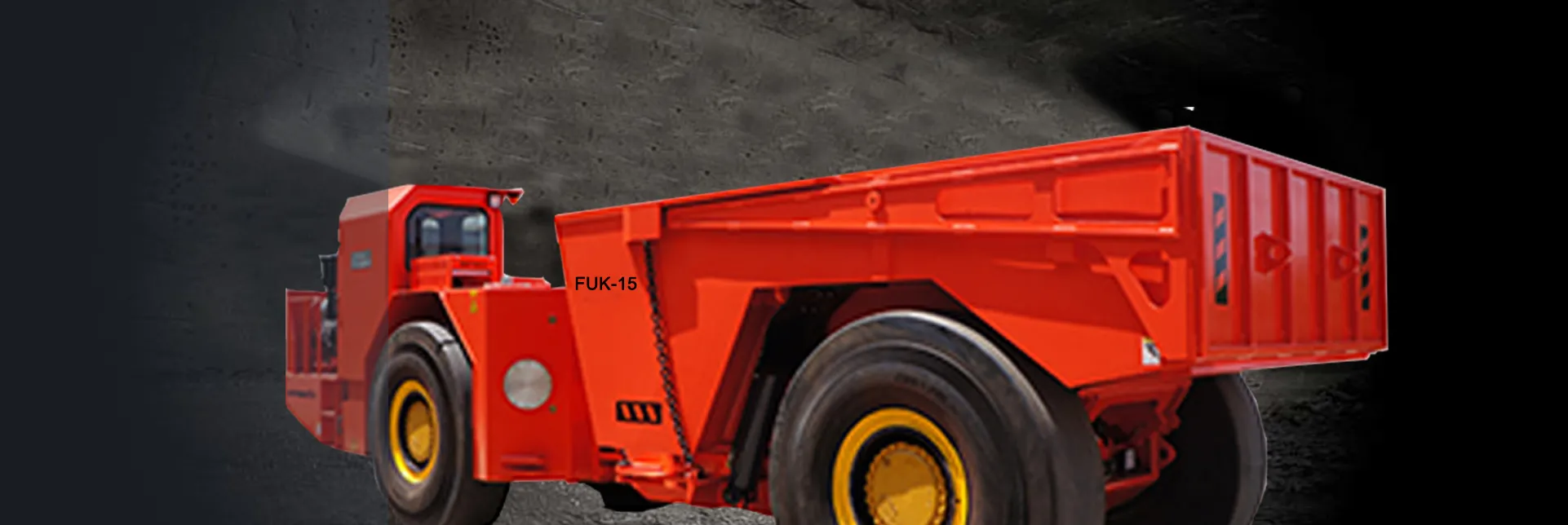

FUK-15 Underground Truck
|FUK-6||6000 kg||3 m³||5950 mm||1500 mm||2009 mm||84 kw||Diesel Engine||down|
|FUK-8||8000 kg||4 m³||7670 mm||1800 mm||2300 mm||115 kw||Diesel Engine||down|
|FUK-10||10000 kg||5 m³||7670 mm||1800 mm||2300 mm||115 kw||Diesel Engine||down|
|FUK-12||12000 kg||6 m³||7560 mm||2047 mm||2410 mm||165 kw||Diesel Engine||down|
|FUK-15||15000 kg||7.5 m³||7678 mm||2250 mm||2410 mm||165 kw||Diesel Engine||down|
|FUK-18||18000 kg||9 m³||8300 mm||2100 mm||2310 mm||165 kw||Diesel Engine||down|
|FUK-20||20000 kg||10 m³||9204 mm||2400 mm||2530 mm||170 kw||Diesel Engine||down|
|FUK-30||30000 kg||15 m³||10100 mm||2640 mm||2660 mm||285 kw||Diesel Engine||down|
|FUK-42||42000 kg||20 m³||10823 mm||3020 mm||2850 mm||405 kw||Diesel Engine||down|
