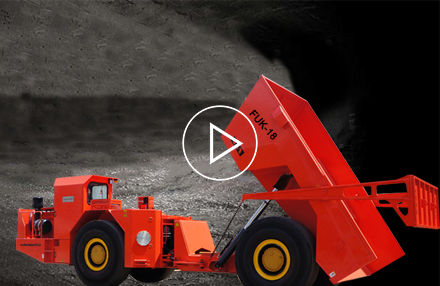

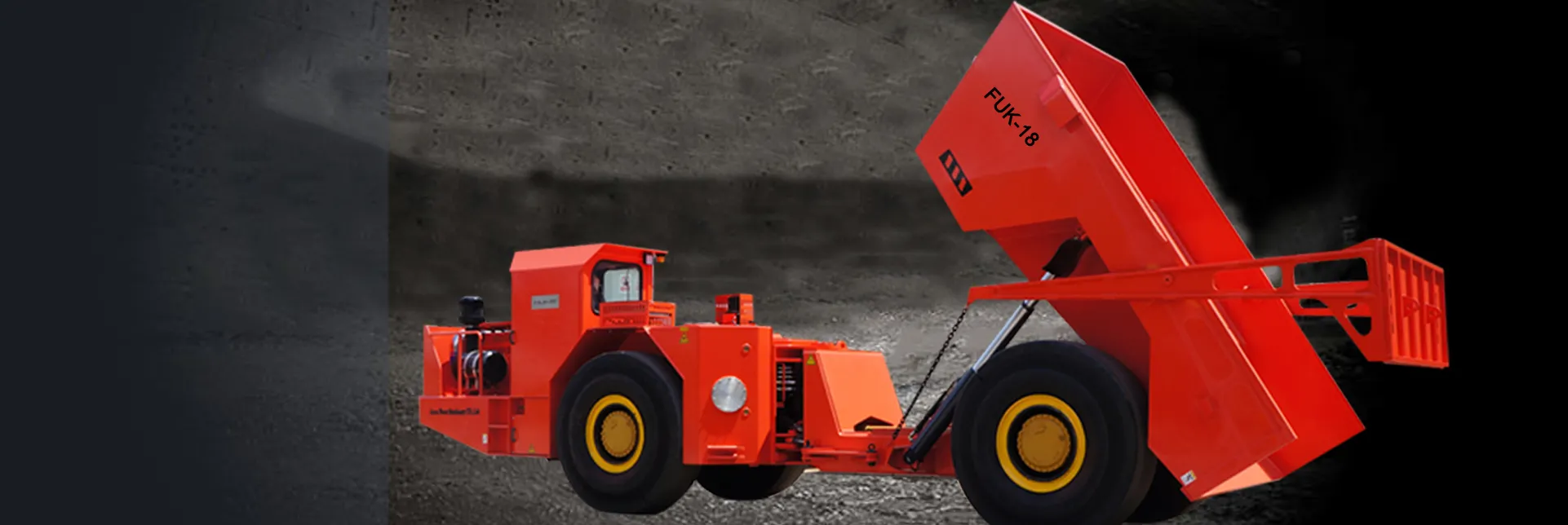

The FUK-18 Underground mining truck is 18-ton payload capacity. The FUK-18 underground truck meets productivity goals in challenging environments. All the accessories of the FUK-18 underground mining truck are made of internationally renowned brands to maximize the service life of the equipment. Our engine adopts German Deutz engine, and the engine cooler is easy to clean and maintain with water cooling.
FUK-18 trucks increase productivity and enable ore transportation process. FUK-18 is a high-speed feeder underground truck with a load capacity of 18 tons. Front axle suspension, comfortable seats and ergonomic controls make this truck comfortable to operate for long periods of time.
Engineered for operator care. ROPS/FOPS-certified canopies, fail-safe braking system, operation interlocks, hot component isolation, three-point mounting, and slip resistant steps help you drive toward zero harm.Designed from the ground up for exceptional productivity. Efficient power to the ground and maximized tractive effort delivers faster hauls. Robust design means fewer failures and more uptime.
Box-section frame design with rigid frame beams to resist torsional forces; welded joints and materials matched to optimize structural life. Two independent variable rebound suspension cylinders distribute road traction for longer frame life and a comfortable ride. An articulating hitch provides steering and swing, and enables the truck to maintain all-wheel ground contact in rough terrain.
1. The transmission system of this model uses the hydraulic torque converter, power-shift gearbox and drive axle of the American DANA brand;
2. This model has passed the national mining product safety certification, with reliable and stable performance, flexible and convenient operation, large driving force, strong climbing ability, stable operation, small turning radius, safe and reliable;
3. This model can be customized.
|General Parameter||Loader Weight & Capacity|
|Rated capacity||18000 kg||Truck weight||15500 kg|
|Length||8300 mm||Loading weight||33500 kg|
|Width||2100 mm||Traveling performance|
|Height(cabin)||2310 mm||1 shift forward/backward||5.5 km/h|
|Bucket volume||9 m³||2 shift forward/backward||11.3 km/h|
|Dump angle||65°||3 shift forward/backward||19.1 km/h|
|Bucket lifting time||<15 S||4 shift forward/backward||31.1km/h|
|Bucket down time||<15 S||Grade ability||18% (load)|
|Wheelbase||4367 mm||Tyre model||16.00-25 TT|
|Min. Ground clearance||360 mm||Diesel Engine|
|Steering angle||left/right 42°||Brand||CUMMINS QSB6.7|
|Turning angle||±7°||Model||EPA Tier 3 EU Stage IlIA/CHINA III|
|Min. Turning radius||inner 4390 mm||Torque||949 Nm /1500 rpm|
|Min. Turning radius||Outer 7198 mm||Rated Power||163 KW/2200 rpm|
|Torque Converter||Optional brand||Original Germany Deutz Brand|
Single stage two components
with hydraulic pump drive.
power shift (4 shifts)
with emergency brake
Rigid planetary transmission axle with
NON-SPIN & anti-slip differential
|Driver Cabin||Fire system|
|Reinforced with 6mm steel panel||YES||Manual Fire extinguisher||YES|
|Side-seat layout with good vision||YES||Centralized Fire extinguisher||For optional|
|Closed Cabin with air conditioner||For optional||Lubrication system|
|Centralized lubrication||For optional|
High power and low machine weight make FUK-18 fast, the most powerful mining truck in its capacity class
Our underground mining trucks are built with safety and ease of operation in mind. Standard safety features and comfortable working conditions help increase production.
Tailor made size and optional parts for customers to choose: remote control, Centralized lubrication, rear view camera etc.

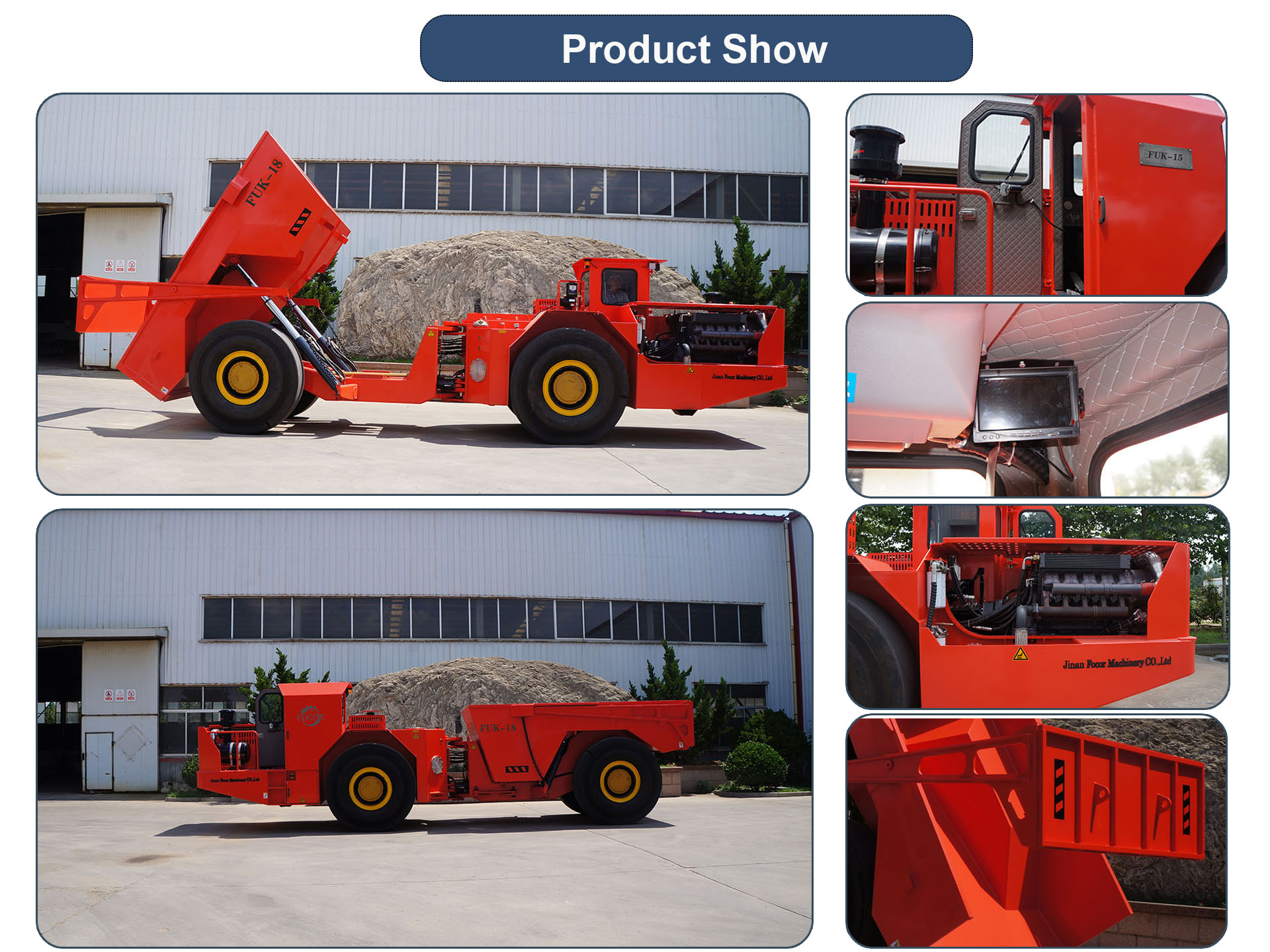

FUK-18 Underground Truck
|FUK-6||6000 kg||3 m³||5950 mm||1500 mm||2009 mm||84 kw||Diesel Engine||down|
|FUK-8||8000 kg||4 m³||7670 mm||1800 mm||2300 mm||115 kw||Diesel Engine||down|
|FUK-10||10000 kg||5 m³||7670 mm||1800 mm||2300 mm||115 kw||Diesel Engine||down|
|FUK-12||12000 kg||6 m³||7560 mm||2047 mm||2410 mm||165 kw||Diesel Engine||down|
|FUK-15||15000 kg||7.5 m³||7678 mm||2250 mm||2410 mm||165 kw||Diesel Engine||down|
|FUK-18||18000 kg||9 m³||8300 mm||2100 mm||2310 mm||165 kw||Diesel Engine||down|
|FUK-20||20000 kg||10 m³||9204 mm||2400 mm||2530 mm||170 kw||Diesel Engine||down|
|FUK-30||30000 kg||15 m³||10100 mm||2640 mm||2660 mm||285 kw||Diesel Engine||down|
|FUK-42||42000 kg||20 m³||10823 mm||3020 mm||2850 mm||405 kw||Diesel Engine||down|
