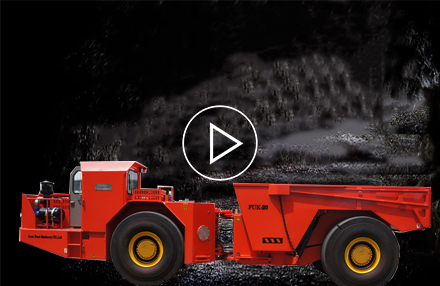

OverviewThe FUK-20 Underground mining truck is 20-ton payload capacity. The FUK-20 underground truck meets productivity goals in challenging environments. All the accessories of the FUK-20 underground mining truck are made of internationally renowned brands to maximize the service life of the equipment. Our engine adopts German Deutz engine, and the engine cooler is easy to clean and maintain with water cooling.

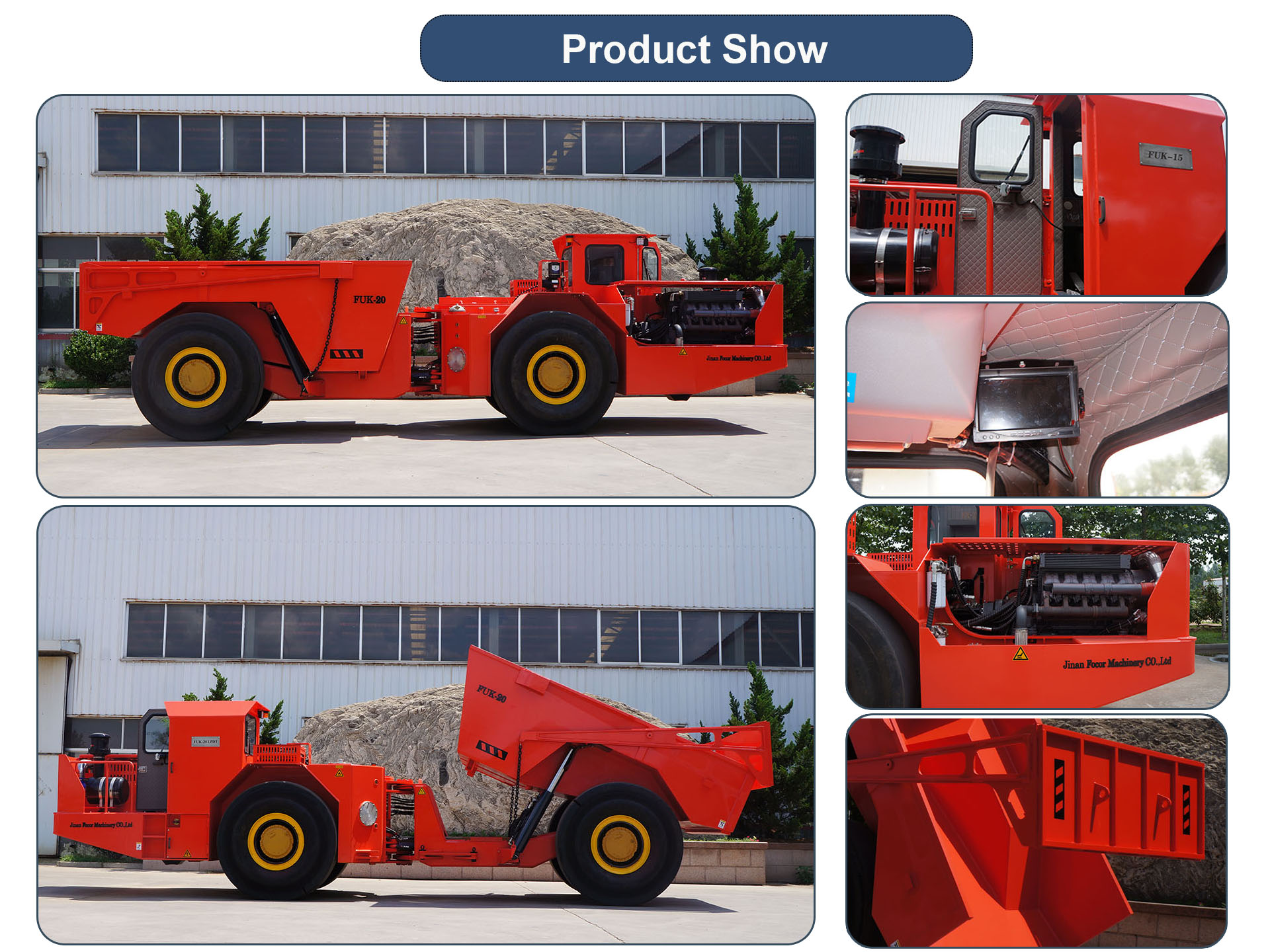

DETAIL PHOTO
| General Parameter | Loader Weight & Capacity | |||
| Rated capacity | 20000 kg | Scooptram weight | 20400 kg | |
| Length | 9204 mm | Load weight | 40400 kg | |
| Width | 2400 mm | Traveling performance | ||
| Height(cabin) | 2530 mm | 1 shift forward/backward | 5.8 km/h | |
| Bucket volume | 10 m³ | 2 shift forward/backward | 11.8 km/h | |
| Discharging height | 4226 mm | 3 shift forward/backward | 18.2 km/h | |
| Discharging angle | 62° | 4 shift forward/backward | 24.2 km/h | |
| Bucket lifting time | 10 S | Grade ability | 12% (load) | |
| Bucket down time | 8 S | Max. Traction | 240 KN | |
| Wheelbase | 4623 mm | Diesel Engine | ||
| Min. Ground clearance | 493 mm | Brand | Germany DEUTZ | |
| Steering angle | left/right 45° | Model | F10L413FW | |
| Turning angle | ±10° | Type | Water cooling | |
| Min. Turning radius | inner 4110 mm | Rated Power | 170 KW/2300 rpm | |
| Min. Turning radius | outer 7235 mm | Optional Brand | Original Germany Deutz Brand | |
| Torque Converter | Bucket | |||
| Brand | American DANA | Material | Manganese steel | |
| Model | C500 | Baffle | Optional | |
| Type | Single stage two components with hydraulic pump drive. | Axle | ||
| Shift Transmission | Brand | DANA | ||
| Brand | American DANA | Model | 19D | |
| Model | R36000 | Type | Rigid planetary transmission axle with NON-SPIN & anti-slip differential | |
| Shift | power shift (4 shifts) forward+backward with Emergency brake | Fire system | ||
| Driver Cabin | Manual Fire extinguisher | YES | ||
| Reinforced with 6mm steel panel | YES | Centralized Fire extinguisher | For optional | |
| Side-seat layout with good vision | YES | Lubrication system | ||
| Closed Cabin with air conditioner | YES | Manual lubrication | YES | |
| Centralized lubrication | For optional | |||
Operators can work comfortably with ergonomic controls and optional air conditioning, reducing fatigue and increasing productivity
The FUK-20 features a durable, long-life construction designed for reliability and longevity.
Tailor made size and optional parts for customers to choose: remote control, Centralized lubrication, rear view camera etc.

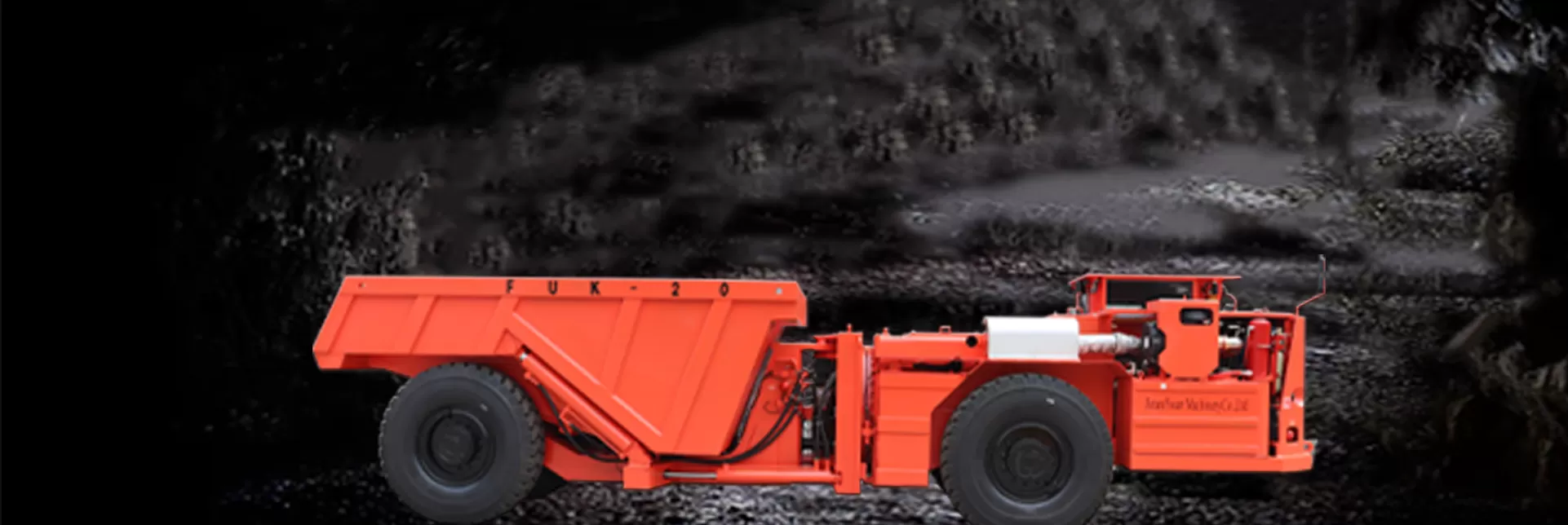

FUK-20 Underground Truck
Download
| PRODUCT | PAYLOAD | HOPPER | LENGTH | WIDTH | HEIGHT | POWER | TYPE | SPEC SHEET |
| FUK-6 | 6000 kg | 3 m³ | 5950 mm | 1500 mm | 2009 mm | 84 kw | Diesel Engine | down |
| FUK-8 | 8000 kg | 4 m³ | 7670 mm | 1800 mm | 2300 mm | 115 kw | Diesel Engine | down |
| FUK-10 | 10000 kg | 5 m³ | 7670 mm | 1800 mm | 2300 mm | 115 kw | Diesel Engine | down |
| FUK-12 | 12000 kg | 6 m³ | 7560 mm | 2047 mm | 2410 mm | 165 kw | Diesel Engine | down |
| FUK-15 | 15000 kg | 7.5 m³ | 7678 mm | 2250 mm | 2410 mm | 165 kw | Diesel Engine | down |
| FUK-18 | 18000 kg | 9 m³ | 8300 mm | 2100 mm | 2310 mm | 165 kw | Diesel Engine | down |
| FUK-20 | 20000 kg | 10 m³ | 9204 mm | 2400 mm | 2530 mm | 170 kw | Diesel Engine | down |
| FUK-30 | 30000 kg | 15 m³ | 10100 mm | 2640 mm | 2660 mm | 285 kw | Diesel Engine | down |
| FUK-42 | 42000 kg | 20 m³ | 10823 mm | 3020 mm | 2850 mm | 405 kw | Diesel Engine | down |
