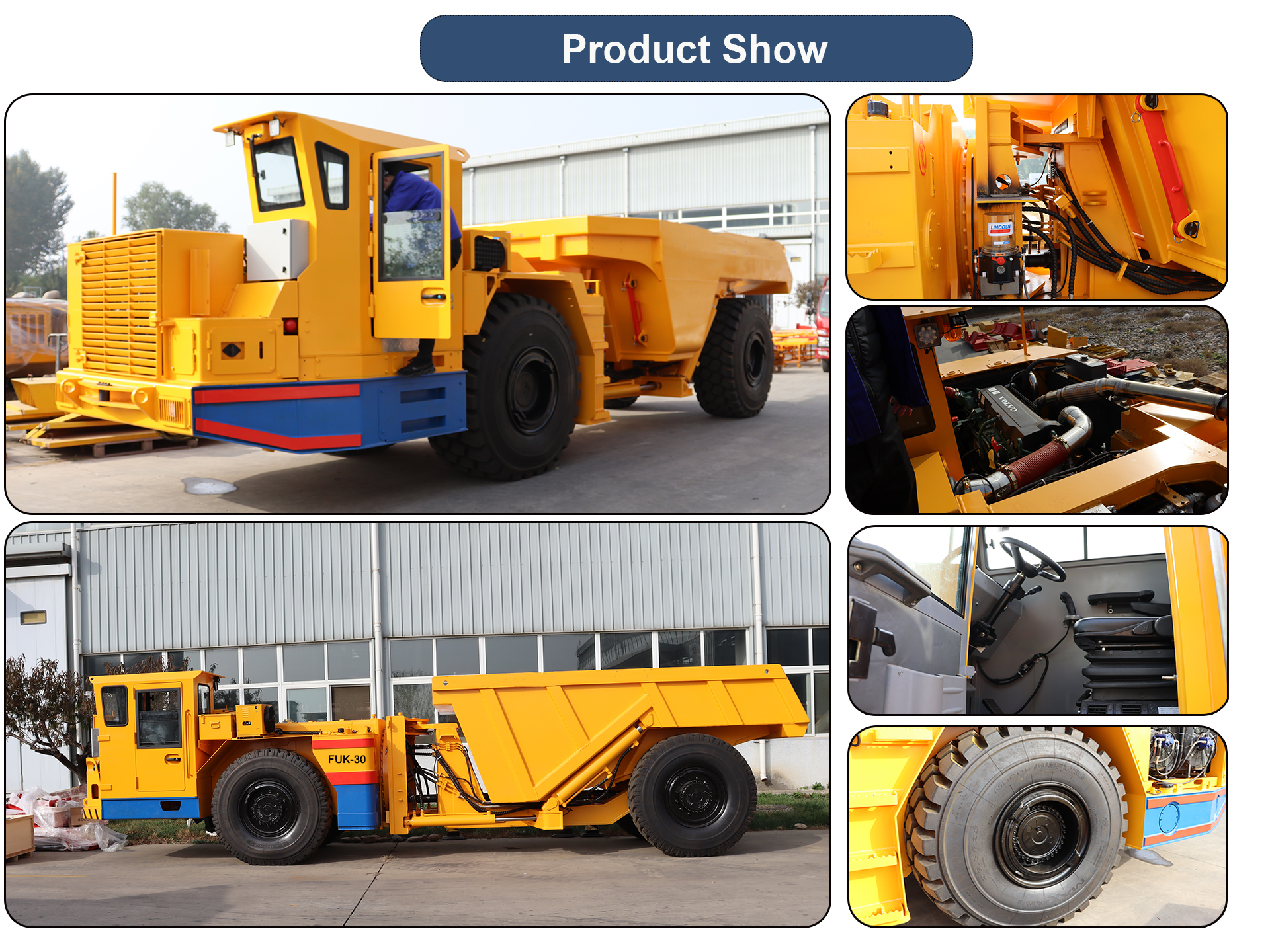

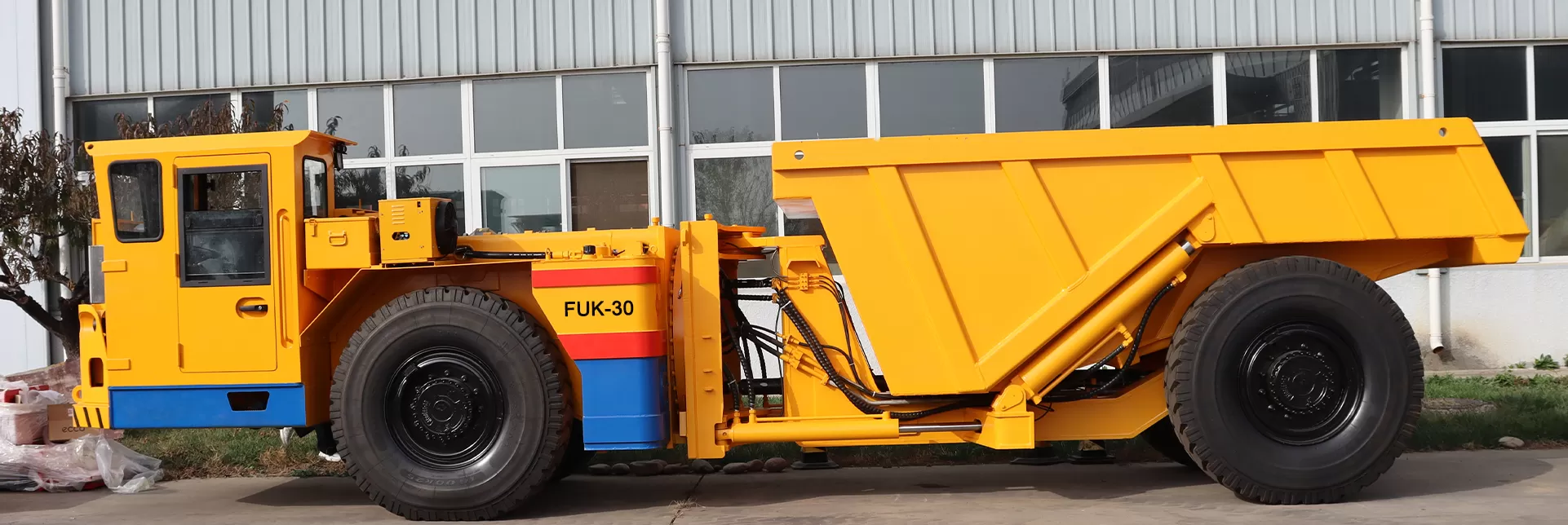

The FUK-30 is a reliable 30-ton truck designed with a high-strength steel frame and a heavy-duty, all-mechanical powertrain that helps you meet your production goals while keeping costs down. The FUK-30 is a high performance 30t articulated underground dump truck for 4.5 x 4.5m transport modes. Truck performance based on proven design, high engine power and high payload in relation to dead weight.
Focor's range of mining trucks for underground mining and tunneling applications includes models with payload capacities of 6-30 tonnes. Articulated underground trucks have a high power-to-weight ratio for good speed on steep grades.
The rated load capacity of our Fuk-30 underground mine truck is 30 tons, the body weight is 28.9 tons, and the load-bearing capacity is 58.9 tons. The engine of our 30-ton mining truck is different from other types of mining trucks. We choose Volvo TAD1351VE6-cylinder water-cooled diesel engine for FUK-30 underground mining truck. We choose American DANA C8000 hydraulic torque converter. We choose American DANA 19D drive axle. Because the front axle swing angle of this type of drive axle is better. The service brake adopts a fully enclosed multi-disc wet hydraulic brake, and the parking brake adopts a spring brake. The working voltage of the electrical system is composed of two 12V batteries.
In order to have a voiced view in both directions of travel, the truck is equipped with front and rear view cameras well mounted on the roof. Vehicle seating and ergonomic controls help improve operator productivity.
1. Main parts are imported top brand, Including Volvo diesel Engine, DANA torque converter, transmission, Kessler axle, Parker pump and valves etc.;
2. Braking System consisted of Working brake and Stop brake, with Fully enclosed and Multi-disc wet hydraulic brake, Stop brake with spring brake; Central articulated structure, hydraulic power turning, driven by two-way function cylinders.
3. Tailor made size and optional parts for customers to choose: remote control, Centralized lubrication, rear view camera etc.
|Length||10228 mm||Operating weight||29500 kg|
|Width||2800 mm||Payload||30000 kg|
|Dump box width||2800 mm||Fully loaded||59500 kg|
|Height(canopy)||2885 mm||Traveling performance|
|Ground clearance||400 mm||Max. attractive||≥300 kN|
|Capacity(SAE heaped)||15 m3||1st Gear(forward)||6.2 km/h|
|Dump angle||65°||2nd Gear (forward)||10.7 km/h|
|Diesel Engine||3rd Gear (forward)||18.3 km/h|
|Manufacturer Type||VOLVO TAD1350||4th Gear (forward)||30.6 km/h|
|Design Max||Water-cooled diesel engine||1st Gear (Reverse)||6.2 km/h|
|Power Max||Tier 3 and EU Stage Ⅲ A||Grade ability||15%, 6.4km/h at 2nd Gear|
|Air intake system||DONALDSON dry air filter||Manufacture||DANA Spicer off-highway|
|Exhaust system||DOC exhaust gas catalyst/silencer||Type||CL8000|
|Starter, power/voltage||Delco Remy 6.0kw/24V||Design||Single stage industrial type|
|Alternator, voltage/ampere||Delco Remy 24V/150A Meets U.S. EPA||Power Shift Transmission|
|Exhaust quality||Tier 3 and EU Stage Ⅲ A||Manufacture||DANA Spicer off-highway|
|Front and rear axles||Rigid planetary axles with differential||Design|
Power shift transmission with
4 forward and 4 reverse
|Manufacture||Gear KESSLER||Wheels & Tires|
|Design||Standard differential||Tire||26.5 R25 TL E-4|
|Brakes||Tire filling pressure||7±0.1 bar|
Fully enclosed, oil cooled multiple
，Wet discs at each wheel en
|Release pressure||138 bar||Design|
Swivel-joint hydraulic power
|Dump/Hoist Hydraulic System||Steering angle||43 o|
|Pump type||Gear pump||Clearance circle||Inner 5081±250mm|
|Pump delivery flow rate||80+35 ml/rev||Outer 8788±350mm|
|System pressure||18 MPa||Steering Hydraulic System|
|Number of dump cylinders||2||Pump type||Gear pump|
|Dump box lift time||<15 s||Pump delivery flow rate||81 ml/rev|
|Dump box lowering time||<15 s||System pressure||19 MPa|
|Electrical & Control Equipment||Number of steering cylinders||2|
|Batteries||2×12V/180Ah||Main headlights||2x23W (LED)|
|Control||Manual||Reverse headlights||2x23W (LED)|
|Cabin||Number of lights(main&reverse)||2+2|
|Design||Enclosed cabin with AC||Brake light||1|
|Operator Area||Front seating||Beacon light||1|
|Shift type||Manual power shift||Safety|
|Seat||Spring cushioned seat, adjust distance|
Hour meter, Pre-heat indicator, Engine
temperature gauge, Engine oil Pressure
gauge, Brake pressure gauge, Transmission
pressure gauge, Transmission temperature
gauge, Brake pressure low warning.
|Meters/gauges||Murphy display||Emergency buttons||3(front, articulation, cabin)|
|Noise at operator position||≤90dB(A)||Fire suppression|
Portable manual fire extinguisher
|Filling Volumes||Brake safety||Exhaust brake|
|Fuel tank||430 L||Dump box lift safety||Mechanic lock|
|Hydraulic tank||≥450 L||Delivery safety||Central articulation lock|
|Engine oil pan||36 L||Service alarm||Beep & light flash|
|Torque converter/power shift transmission circuit||58 L||Options|
|Front axle differential gear||47 L||Automatic suppression system||Optional|
|Front axle planetary gear||2x3.5 L||Manual centralized lubrication system||Optional|
|Rear axle differential gear||47 L||Video for reverse||Optional|
|Rear axle planetary gear||2x3.5 L||Automatic lubrication system||Optional|
Rugged steel frame construction is durable and built to last. Heavy machinery drive trains are proven for underground performance. The hydraulic system is equipped with a piston pump that runs cooler and lasts longer.
Tailor made size and optional parts for customers to choose: remote control, Centralized lubrication, rear view camera etc.
Our mining dump trucks are built with safety and ease of operation in mind.
|FUK-6||6000 kg||3 m³||5950 mm||1500 mm||2009 mm||84 kw||Diesel Engine||down|
|FUK-8||8000 kg||4 m³||7670 mm||1800 mm||2300 mm||115 kw||Diesel Engine||down|
|FUK-10||10000 kg||5 m³||7670 mm||1800 mm||2300 mm||115 kw||Diesel Engine||down|
|FUK-12||12000 kg||6 m³||7560 mm||2047 mm||2410 mm||165 kw||Diesel Engine||down|
|FUK-15||15000 kg||7.5 m³||7678 mm||2250 mm||2410 mm||165 kw||Diesel Engine||down|
|FUK-18||18000 kg||9 m³||8300 mm||2100 mm||2310 mm||165 kw||Diesel Engine||down|
|FUK-20||20000 kg||10 m³||9204 mm||2400 mm||2530 mm||170 kw||Diesel Engine||down|
|FUK-30||30000 kg||15 m³||10100 mm||2640 mm||2660 mm||285 kw||Diesel Engine||down|
|FUK-42||42000 kg||20 m³||10823 mm||3020 mm||2850 mm||405 kw||Diesel Engine||down|
