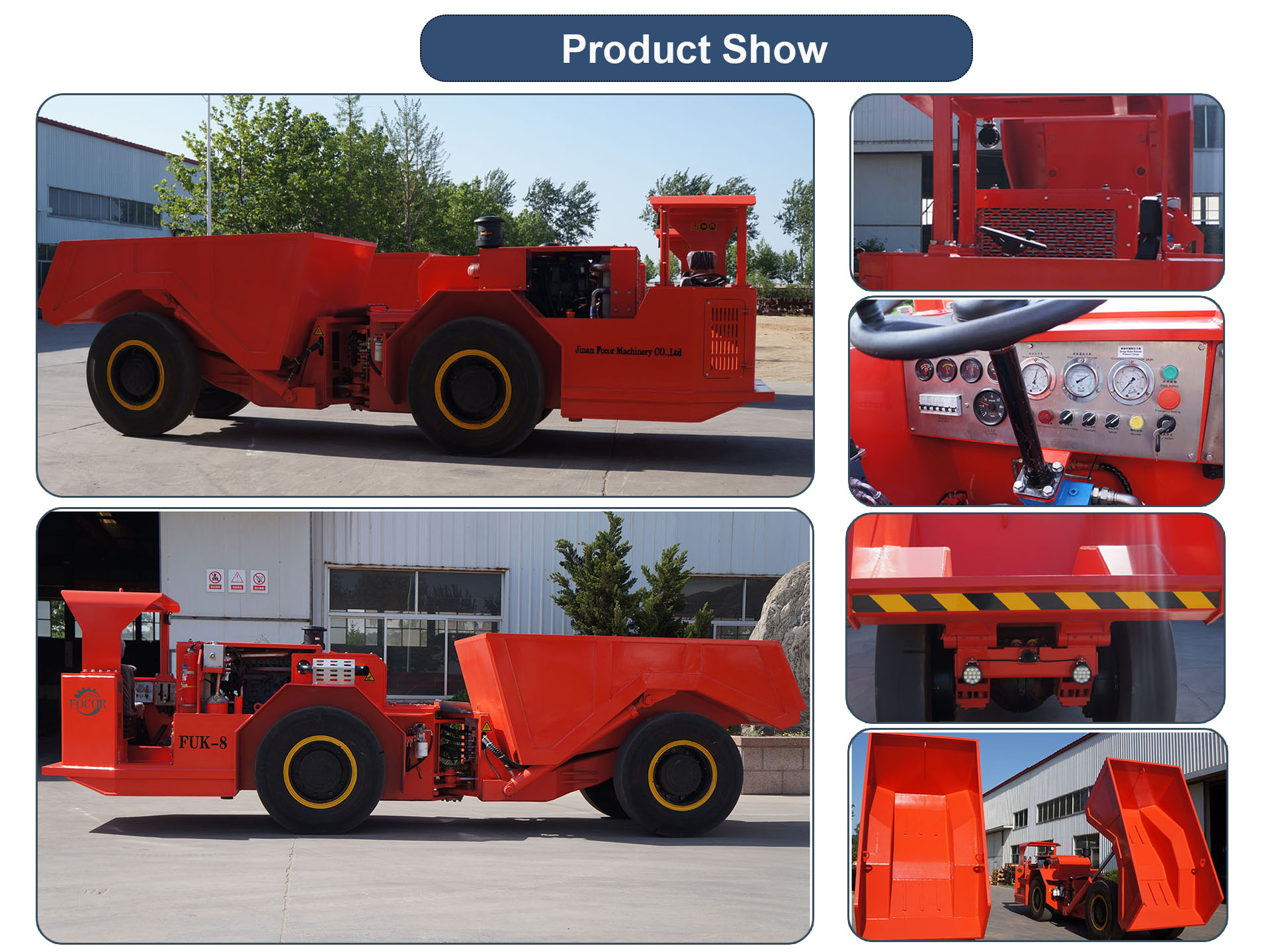

The Fuk-8 is a compact underground truck with a capacity of 8 tonnes, designed to provide the flexible mobility required in narrow vein mining conditions. This mining truck has a high payload relative to its weight and is maneuverable and fast on slopes.
Underground trucks are designed to safely, efficiently and reliably transport rock materials under extreme conditions. Articulated underground trucks have a high power-to-weight ratio for good speed on steep grades. The built-in reliability of underground mining vehicles combines with higher capacity and high ramp speeds to significantly increase productivity. Operators can work comfortably with optional air conditioning and ergonomic controls that increase productivity and reduce fatigue.
Deutz BF4M1013EC power system, water-cooled turbocharged engine. DANA drive system, hydraulic torque converter, power shift gearbox, easy to operate, stable operation. The braking system is spring-applied, hydraulically released for safety and reliability. The Focor truck is a reliable, durable dump truck that, when equipped with the optional Stage V engine, complies with the strictest emissions regulations in the world. With its robust construction, compact size and fit-for-purpose components, the truck is tailored to meet productivity goals in challenging underground mining environments. The overall light weight and high power of the machine enable high travel speeds and short cycle times, while the Dana transmission's automatic shifting and torque converter lock-up ensure fast travel
All the power, performance and reliability that a FUK-8 underground truck offers. The FUK-8 is a narrow 8 ton truck suitable for a 3 x 3 meter driving direction. Available with a standard forward-facing open operator compartment or an optional forward-facing fully enclosed air-conditioned cab, providing operator comfort without compromising visibility. The FUK-8 underground mining trucks are all designed to operate at high speeds with a full load on long spiral haul roads with gradients up to 20%.
Ergonomic, fully adjustable suspension seat with thick padding to reduce pressure on the lower back and thighs, and a wide retractable harness for secure, comfortable restraint. Truck Payload Measuring System, which automatically records load cycle information when unloading, provides operators with real-time loading data and categorizes it for download.
FUK-8 is a modern underground truck with a load capacity of 8 tons. It is a power unit designed for fast and efficient hauling in large mining and construction operations where navigating narrow tunnels is required. With intelligent systems and robust components, the FUK-8 ensures productivity, reliability, operator safety and comfort, and ease of maintenance.
1. Ergonomic design ensures that the driver also speeds up
2. Designed to operate in harsh underground conditions.
Narrow size enables operation in headings as small as 3x3 meters
|General Parameter||Loader Weight & Capacity|
|Rated capacity||8000 kg||Truck weight||14000 kg|
|Length||7670 mm||Loading weight||24000 kg|
|Width||1800 mm||Traveling performance|
|Height(cabin)||2300 mm||1 shift forward/backward||4.6 km/h|
|Bucket volume||4 m³||2 shift forward/backward||10.5 km/h|
|Discharging height||3630 mm||3 shift forward/backward||18 km/h|
|Discharging angle||62°||Grade ability||25% (load)|
|Bucket lifting time||8 S||Max. Traction||140 KN|
|Bucket down time||5 S||Diesel Engine|
|Wheelbase||3683 mm||Brand||Germany DEUTZ|
|Min. Ground clearance||320 mm||Model||BF4M1013EC/115 KW|
|Steering angle||left/right 40°||Type||Water cooling|
|Turning angle||±10°||Rated Power||115 KW/2300 rpm|
|Min. Turning radius||inner 4050 mm||Remarks||Original Germany |
|Min. Turning radius||Outer 6500 mm||Bucket|
|Torque Converter||Material||Manganese steel|
Single stage two components with
hydraulic pump drive.
Rigid planetary transmission axle with
NON-SPIN & anti-slip differential
|Shift||power shift (3 shifts) forward +backward||Manual Fire extinguisher||YES|
|Driver Cabin||Centralized Fire extinguisher||For optional|
|Reinforced with 6mm steel panel||YES||Lubrication system|
|Side-seat layout with good vision||YES||Manual lubrication||YES|
|Closed Cabin with air conditioner||For optional||Centralized lubrication||For optional|
Low Price: Excellent payload capacity increases productivity and provides low cost
Customized: Tailor made size and optional parts for customers to choose: remote control, Centralized lubrication, rear view camera etc.
Narrow size enables operation in headings as small as 3x3 meters.

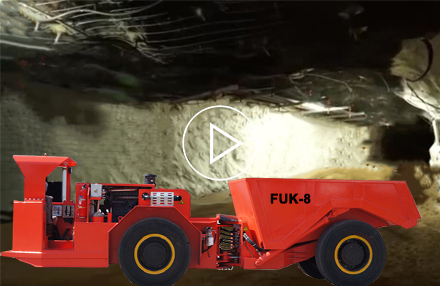

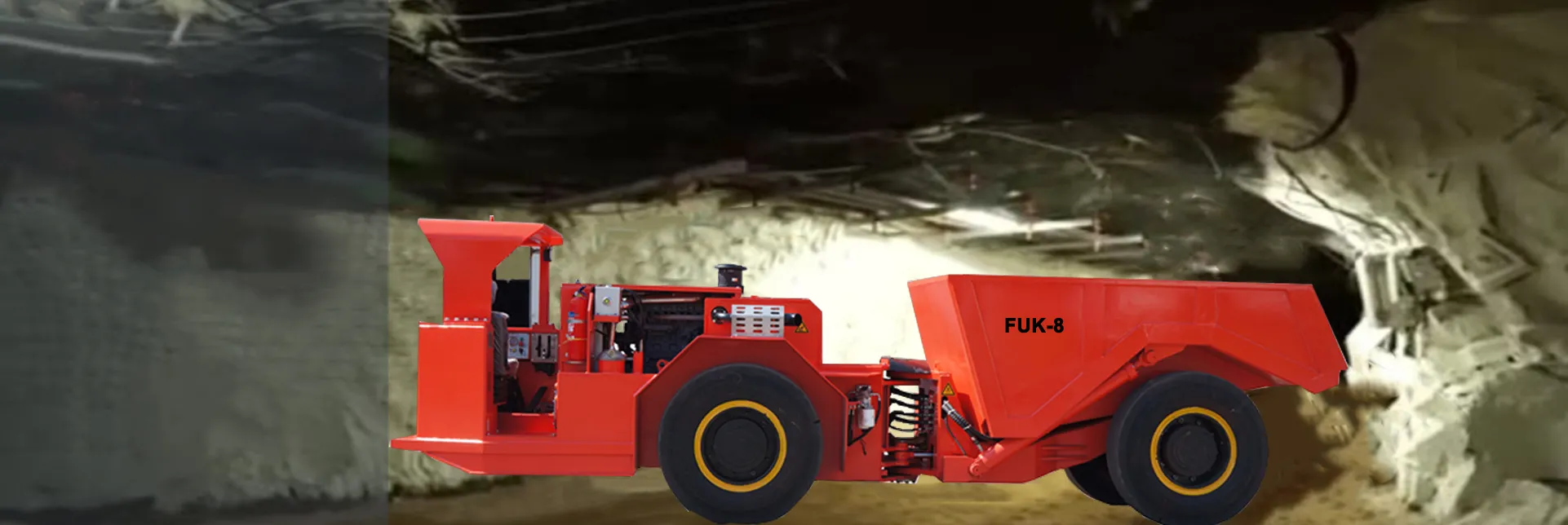

FUK-8 Underground Mining Truck
|FUK-6||6000 kg||3 m³||5950 mm||1500 mm||2009 mm||84 kw||Diesel Engine||down|
|FUK-8||8000 kg||4 m³||7670 mm||1800 mm||2300 mm||115 kw||Diesel Engine||down|
|FUK-10||10000 kg||5 m³||7670 mm||1800 mm||2300 mm||115 kw||Diesel Engine||down|
|FUK-12||12000 kg||6 m³||7560 mm||2047 mm||2410 mm||165 kw||Diesel Engine||down|
|FUK-15||15000 kg||7.5 m³||7678 mm||2250 mm||2410 mm||165 kw||Diesel Engine||down|
|FUK-18||18000 kg||9 m³||8300 mm||2100 mm||2310 mm||165 kw||Diesel Engine||down|
|FUK-20||20000 kg||10 m³||9204 mm||2400 mm||2530 mm||170 kw||Diesel Engine||down|
|FUK-30||30000 kg||15 m³||10100 mm||2640 mm||2660 mm||285 kw||Diesel Engine||down|
|FUK-42||42000 kg||20 m³||10823 mm||3020 mm||2850 mm||405 kw||Diesel Engine||down|
